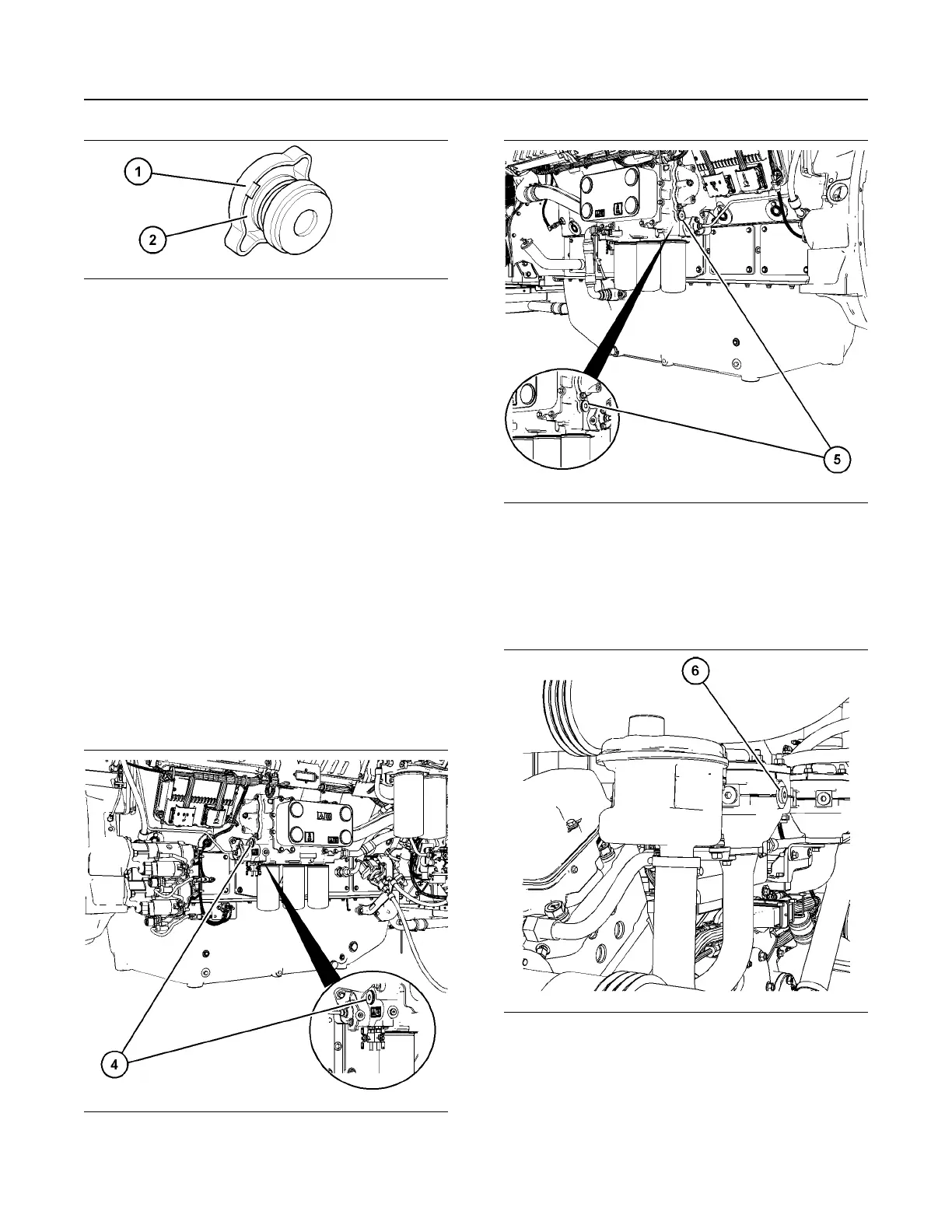

Illustration 59 g06258129
11. Clean the cooling system filler cap (1) and inspect
the seal (2). If the seal is damaged, discard the old
filler cap and install a new filler cap. If the seal is
not damaged, use a suitable pressurizing pump to
pressure test the filler cap. The correct pressure is
stamped on the face of the filler cap. If the filler
cap does not retain the correct pressure, replace
the filler cap.
Install the cooling system filler cap.
12. Install power to the engine. Start the engine and
operate the engine. Inspect the cooling system for
leaks. Ensure that the cooling system operates at
the correct temperature.
Fill using a pump
1. Install the drain plug (3) on the radiator. Install the
drain plug (4) and (5) on the oil coolers.
2. To the radiator drain point, install a suitable
adaptor / pipe / tap to connect a pump “(1/4 BSP)”
.
Illustration 60 g07693484
Typical example of Bank A
Illustration 61 g07693475
Typical example of Bank B
3. Remove the drain plug (4) on bank A engine oil
cooler and drain plug (5) on bank B engine oil
cooler to allow air in the cooling system to vent to
avoid air locks during filling.
Illustration 62 g07821239
Typical example of Bank A water temperature
regulator
M0163009 69
Maintenance Section
Cooling System Coolant (ELC) - Change
