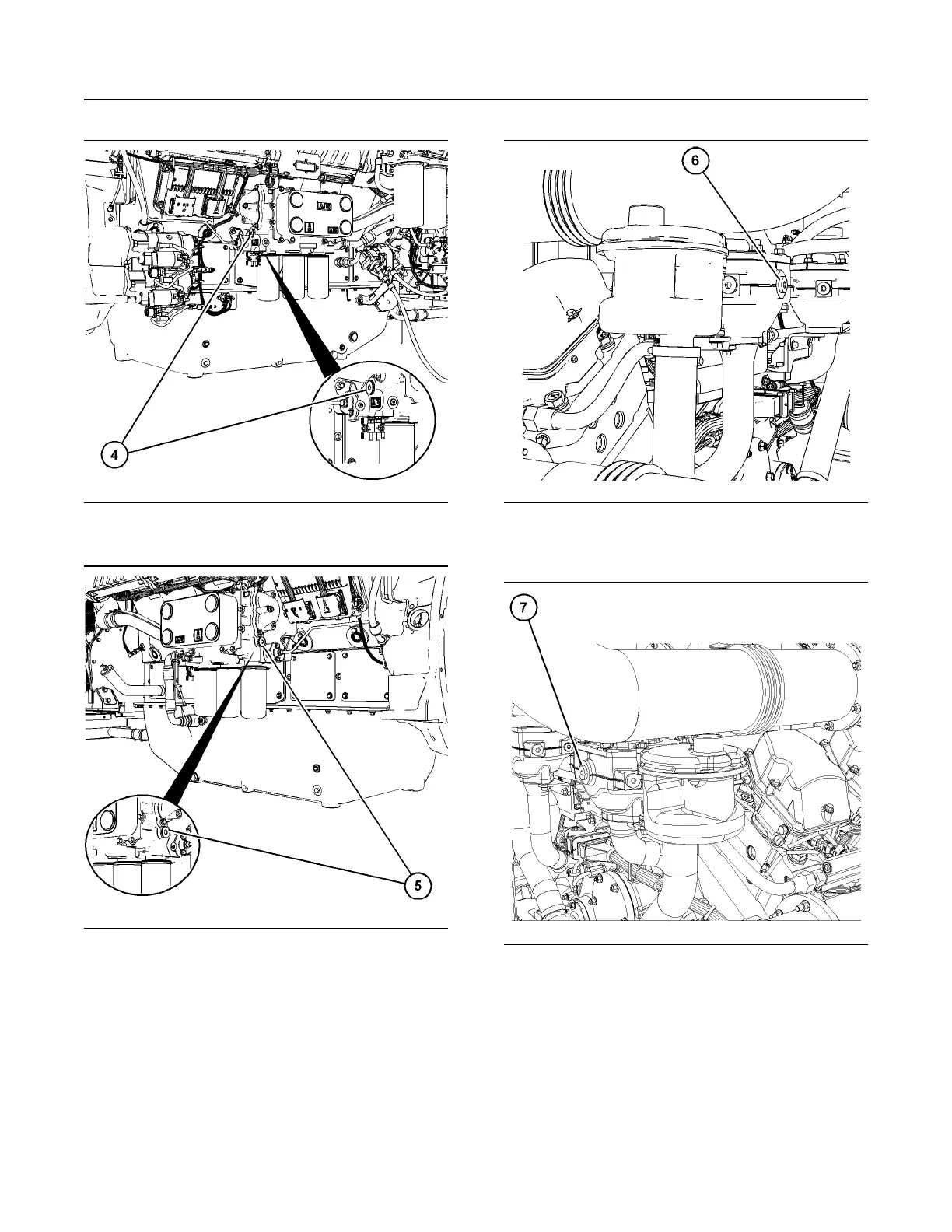

Illustration 69 g07693484
Typical example of Bank A
Illustration 70 g07693475
Typical example of Bank B
2. Remove the drain plug (4) on bank A and drain
plug (5) on bank B of the engine oil coolers to
allow air in the cooling system to vent to avoid air
locks during filling.
Illustration 71 g07821239
Typical example of Bank A water temperature
regulator
Illustration 72 g07821251
Typical example of Bank B water temperature
regulator
3. Remove the plug (6) on the water temperature
regulator on bank A and plug (7) on the water
temperature regulator on bank B to allow air in the
cooling system to vent to avoid air locks during
filling.
M0163009 73
Maintenance Section
Cooling System Coolant - Change
