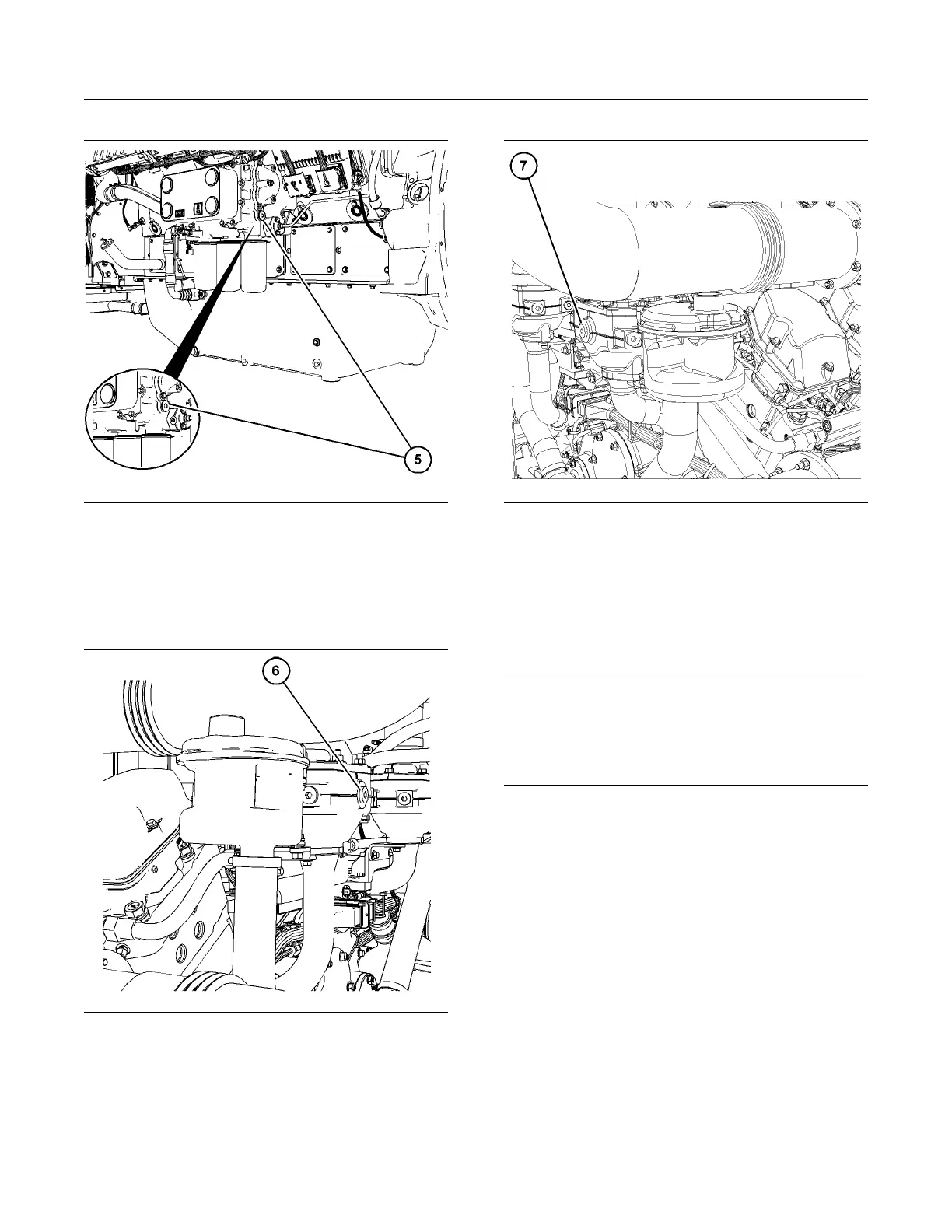

Illustration 75 g07693475
Typical example of Bank B
3. Remove the drain plug (4) on bank A engine oil
cooler and drain plug (5) on bank B engine oil
cooler to allow air in the cooling system to vent to
avoid air locks during filling.
Illustration 76 g07821239
Typical example of Bank A water temperature
regulator
Illustration 77 g07821251
Typical example of Bank B water temperature
regulator
4. Remove the plug (6) on the water temperature
regulator on bank A and plug (7) on the water
temperature regulator on bank B to allow air in the
cooling system to vent to avoid air locks during
filling.
NOTICE
Do not fill the cooling system faster than 5 L
(1.3 US gal) per minute to avoid air locks.
Cooling system air locks may result in engine
damage.
5. Using a pump, fill the cooling system with coolant.
Refer to the Operation and Maintenance Manual,
“Fluid Recommendations” topic (Maintenance
Section) for more information on cooling system
specifications.
6. When coolant starts leaking from the plug (4) on
the oil cooler, tighten the plug securely and
continue to fill the cooling system.
7. When coolant starts leaking from the plug (5) on
the oil cooler, tighten the plug securely and
continue to fill the cooling system.
8. When coolant starts leaking from the plug (6) on
the water temperature regulator, securely tighten
the plug and continue to fill.
9. When coolant starts leaking from the plug (7) on
the water temperature regulator, securely tighten
the plug and continue to fill until the cooling
system is full.
M0163009
