SERVICE OPERATIONS
24
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

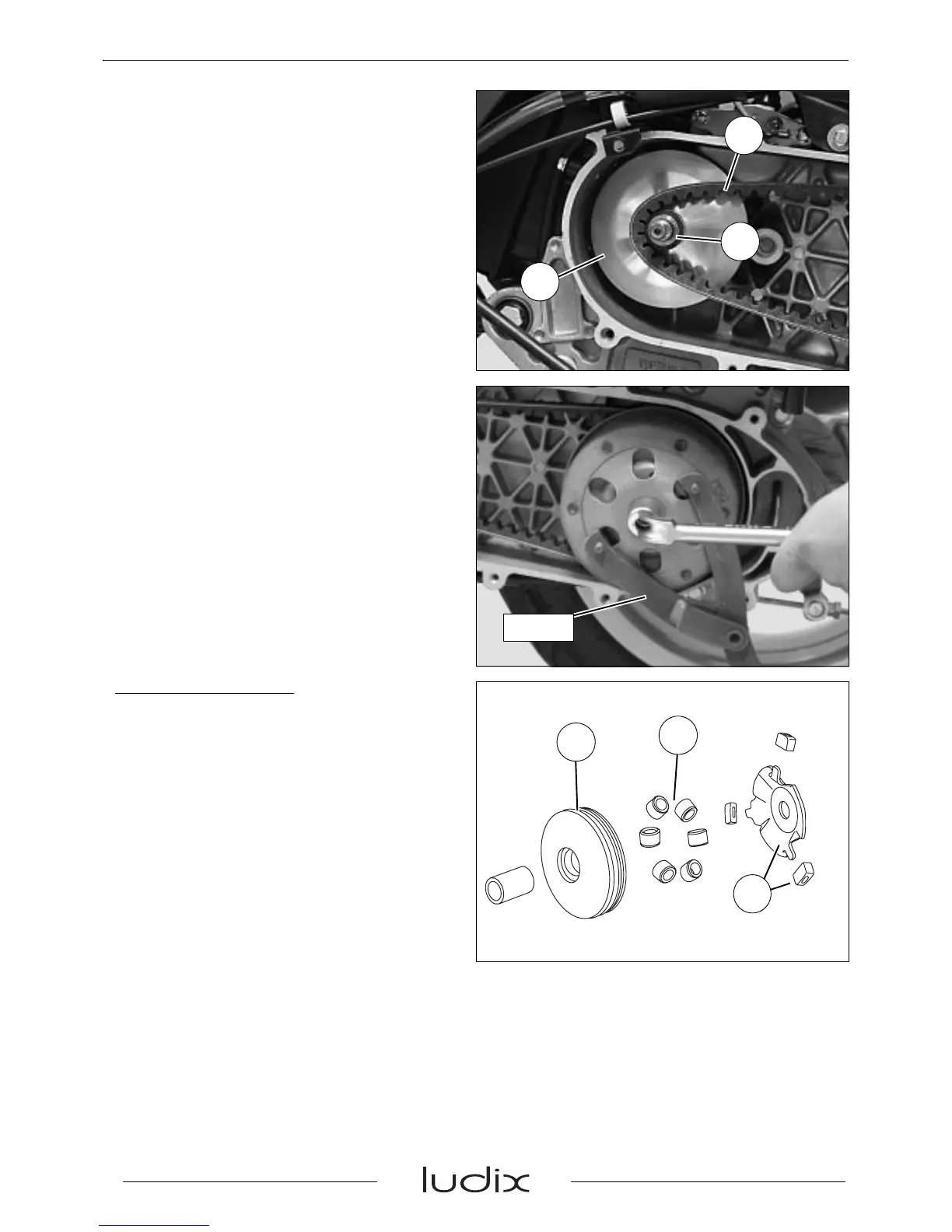

- Remove the belt (1).
- Remove the plastic spacer (2).
- Remove the drive pulley (3) together with
the guide hud.
- Lock the clutch drum with the pin wrench
P/N 752237.
- Remove the clutch drum and the clutch and
drive pulley assembly.
Tightening torque: 55 Nm.
Checking the drive pulley
- Remove the holder (3) and its 4 plastic
guides.
- Remove the moving flange (5)
6 bearings (4).
- The bearings must be changed if they show
major signs of wear.
- The guides shall be replaced if they show
signs of wear.
3
1
2
752237
5
4
3
