SERVICE OPERATIONS
25
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

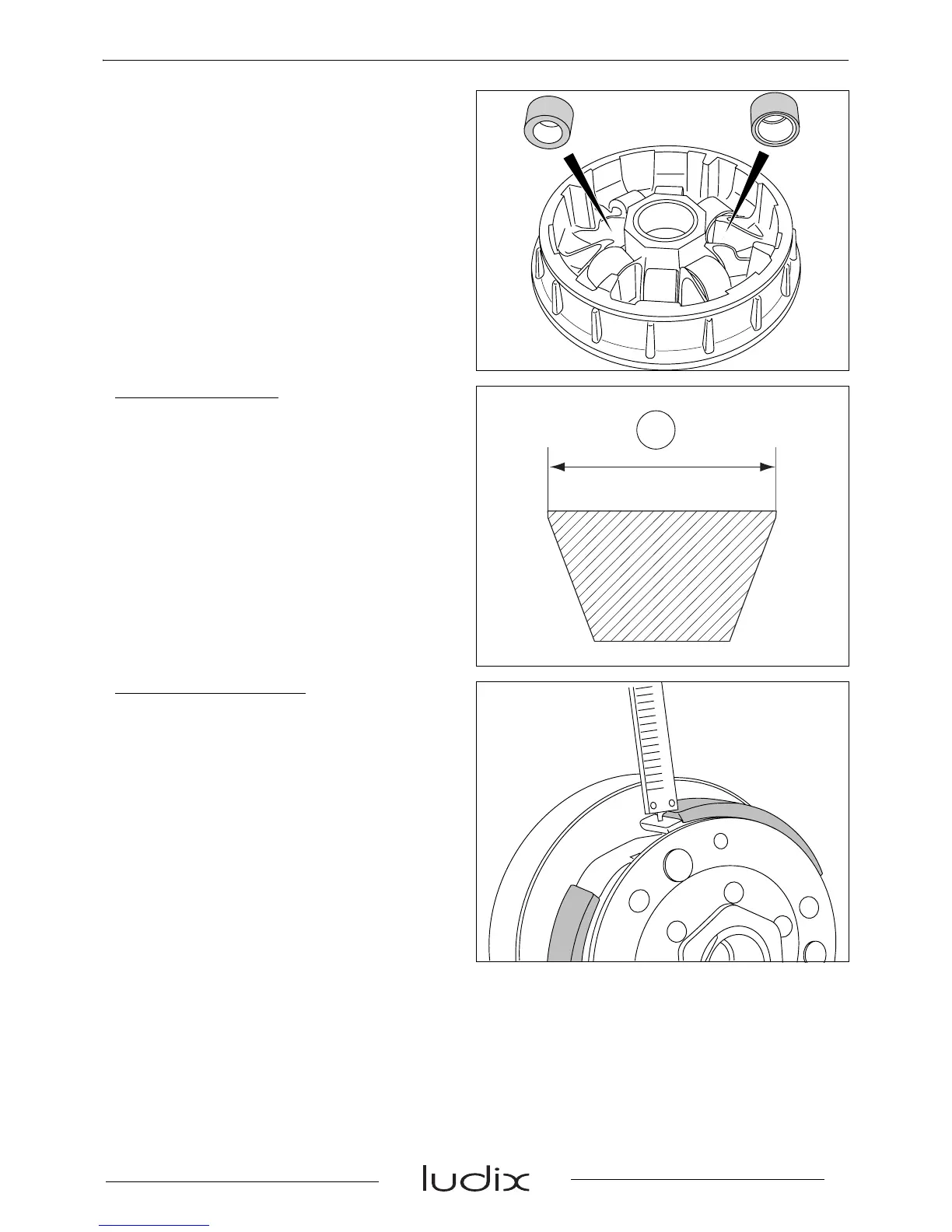

- When refitting, respect the way the rollers
are installed.
- Grease the moving flange bore lightly (high
temperature grease).
Checking the drive belt
- Measure the width of the belt (A).
Minimum width: 17.2 mm.
- Make sure the belt is not cracked.
Checking the clutch linings
- Using the depth calliper, measure the
thickness of the clutch linings.
Mini. thickness: 2 mm.
- Make sure surface of the plates in contact
with the belt does not show any cracks or
signs of abnormal wear.
A
