Pfaff Creative 2140 User Manual

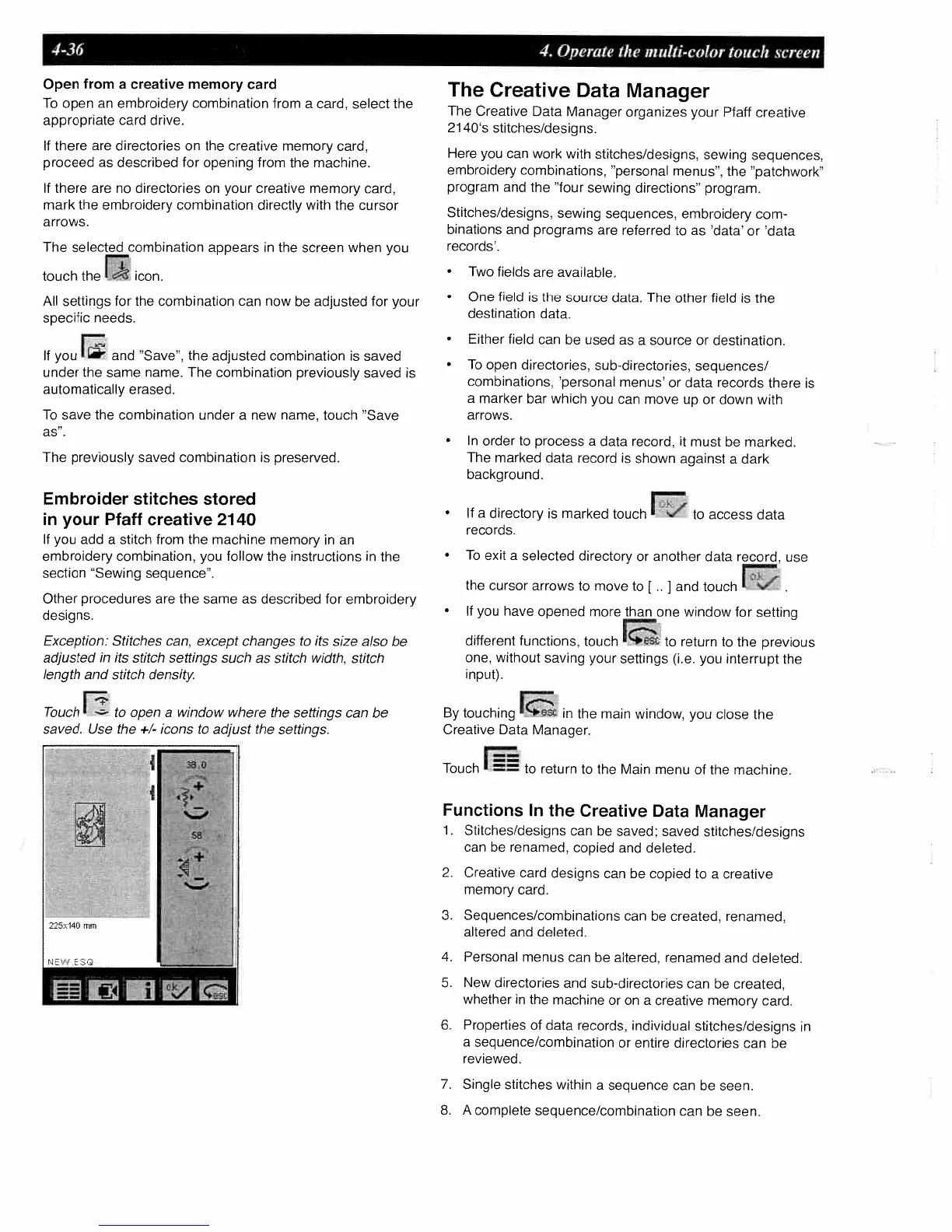

4-36
4.
Operate
the multi-color
touch
screen
Open
from
a
creative memory
card
To open an embroidery combination
from a card, select
the
appropriate card drive.
If
there are directories
on the creative memory card,
proceed as described for opening from the machine.
If there are no directories on your
creative memory card,
mark the embroidery combination directly
with the cursor
arrows.
The
selected
combination appears in the screen when
you
touch the icon.
All settings for
the
combination
can now
be adjusted
for
your
specific needs.
If you
and “Save”,
the adjusted combination is saved
under the same name. The
combination previously saved
is
automatically erased.
To
save
the combination under
a
new name,
touch “Save
as”.
The previously saved combination
is preserved.
Embroider
stitches stored
in
your Pfaff
creative 2140
If you add
a
stitch from the machine
memory in an
embroidery combination,
you
follow
the instructions in the
section “Sewing sequence”.
Other procedures
are the same
as
described for
embroidery
designs.
Exception:
Stitches can, except changes
to
its
size also
be
adjusted
in its
stitch settings such
as
stitch width,
stitch
length and stitch
density.
Touch
to open a window where the settings
can
be
saved.
Use the ÷/ icons to adjust the settings.
The
Creative
Data
Manager
The
Creative
Data
Manager organizes
your Pfaff
creative
21 40’s
stitches/designs.
Here
you can work
with
stitches/designs,
sewing
sequences,
embroidery
combinations, “personal
menus”, the
“patchwork”
program and
the “four
sewing
directions” program.
Stitches/designs,
sewing
sequences,
embroidery
com
binations
and
programs
are referred
to as ‘data’ or
‘data
records’.
• Two fields
are
available.
• One
field is
the source
data. The other
field is the
destination
data.
• Either field
can
be used
as a source or
destination.
• To
open
directories,
sub-directories,
sequences/
combinations,
‘personal
menus’ or
data records
there is
a
marker
bar which
you can move
up
or
down with
arrows.
• In order to
process
a data record,
it must
be marked.
The marked
data
record is shown
against
a dark
background.
• If
a directory is
marked
touch
to access
data
records.
• To exit
a selected
directory or
another data
record,
use
the cursor
arrows
to move
to
[ .. J
and touch
E.
• If
you
have
opened more
than one window
for setting
different
functions,
touch
to return to
the previous
one, without
saving
your settings
(i.e. you interrupt
the
input).
By touching
in
the main
window,
you close the
Creative
Data Manager.
Touch
to return
to the Main
menu of the
machine.
Functions
In the
Creative
Data
Manager
1.
Stitches/designs
can be saved;
saved
stitches/designs
can
be renamed,
copied and
deleted.
2. Creative
card
designs
can
be
copied
to a creative
memory
card.
3. Sequences/combinations
can be created,
renamed,
altered and
deleted.
4.
Personal
menus can
be altered,
renamed and
deleted.
5.
New
directories
and
sub-directories
can be created,
whether
in the
machine
or on
a
creative
memory card.
6, Properties
of
data records,
individual
stitches/designs in
a
sequence/combination or
entire directories
can
be
reviewed.
7. Single
stitches within
a
sequence
can
be seen.
8. A complete
sequence/combination
can be seen.
