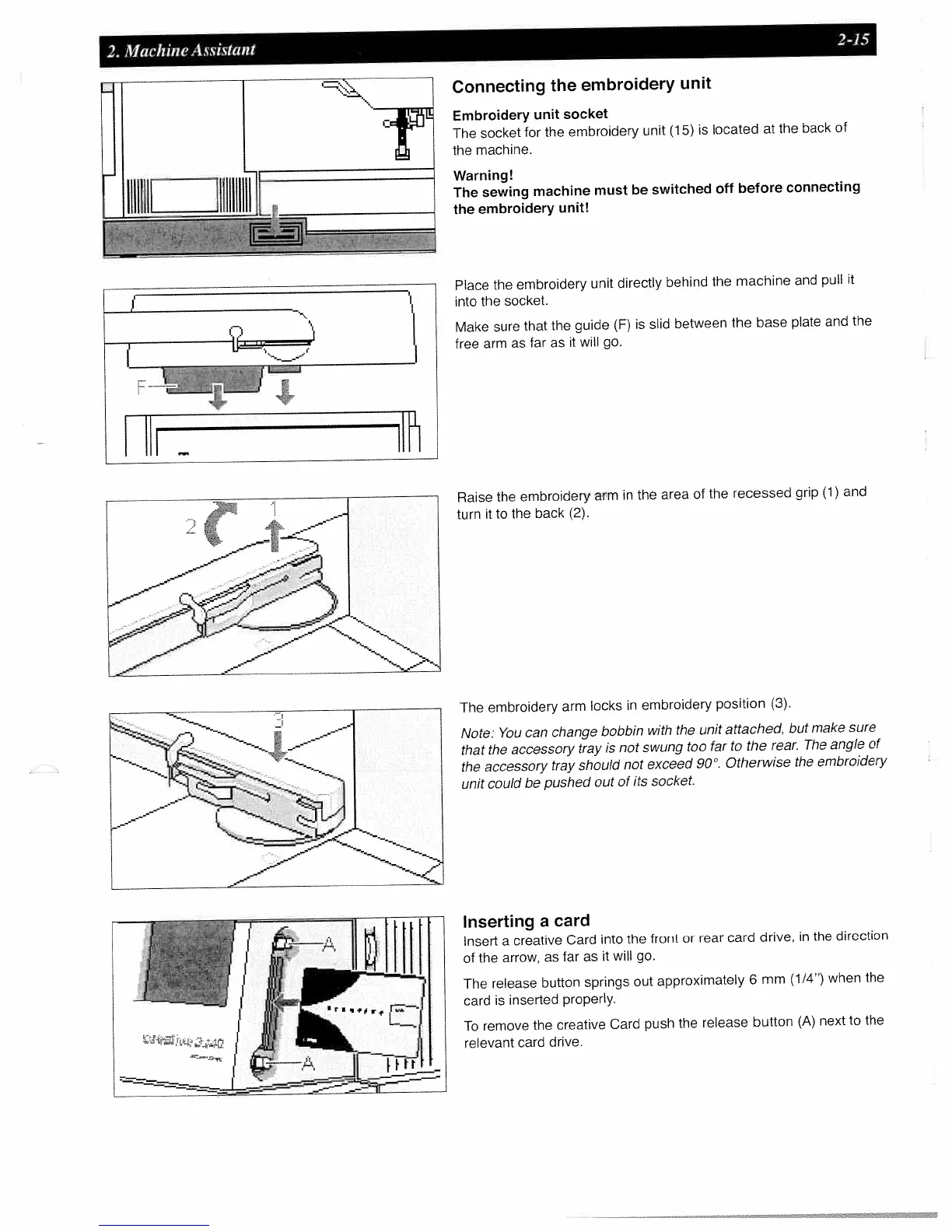

Pfaff Creative 2140 User Manual

2.
Machine
Assistant
2-15
Connecting
the
embroidery
unit
Embroidery
unit socket
The socket
for
the embroidery
unit
(15)
is
located
at
the
back
of
the
machine.
Warning!
The
sewing
machine
must
be
switched
off
before
connecting
the
embroidery
unit!
Place
the
embroidery
unit
directly
behind
the
machine
and
pull it
into
the
socket.
Make
sure
that
the
guide
(F)
is
slid
between
the base
plate
and
the
free
arm as
far as
it
will go.
Raise
the
embroidery
arm
in
the
area
of
the
recessed
grip
(1)
and
turn
it
to
the
back
(2).
The
embroidery
arm
locks
in
embroidery
position
(3).
Note:
You can
change
bobbin
with the
unit attached,
but
make
sure
that
the
accessory
tray
is
not
swung
too
far to
the
rear.
The angle
of
the
accessory
tray
should
not
exceed
9O’
Otherwise
the
embroidery
unit
could
be
pushed
out
of
its
socket.
Inserting
a
card
Insert
a
creative
Card
into
the
front
or
rear
card
drive,
in
the
direction
of
the
arrow,
as
far
as
it
will go.
The
release
button
springs
out
approximately
6
mm
(1/4’)
when
the
card
is
inserted
properly.
To
remove
the
creative
Card
push
the
release
button
(A)
next
to
the
relevant
card
drive.
