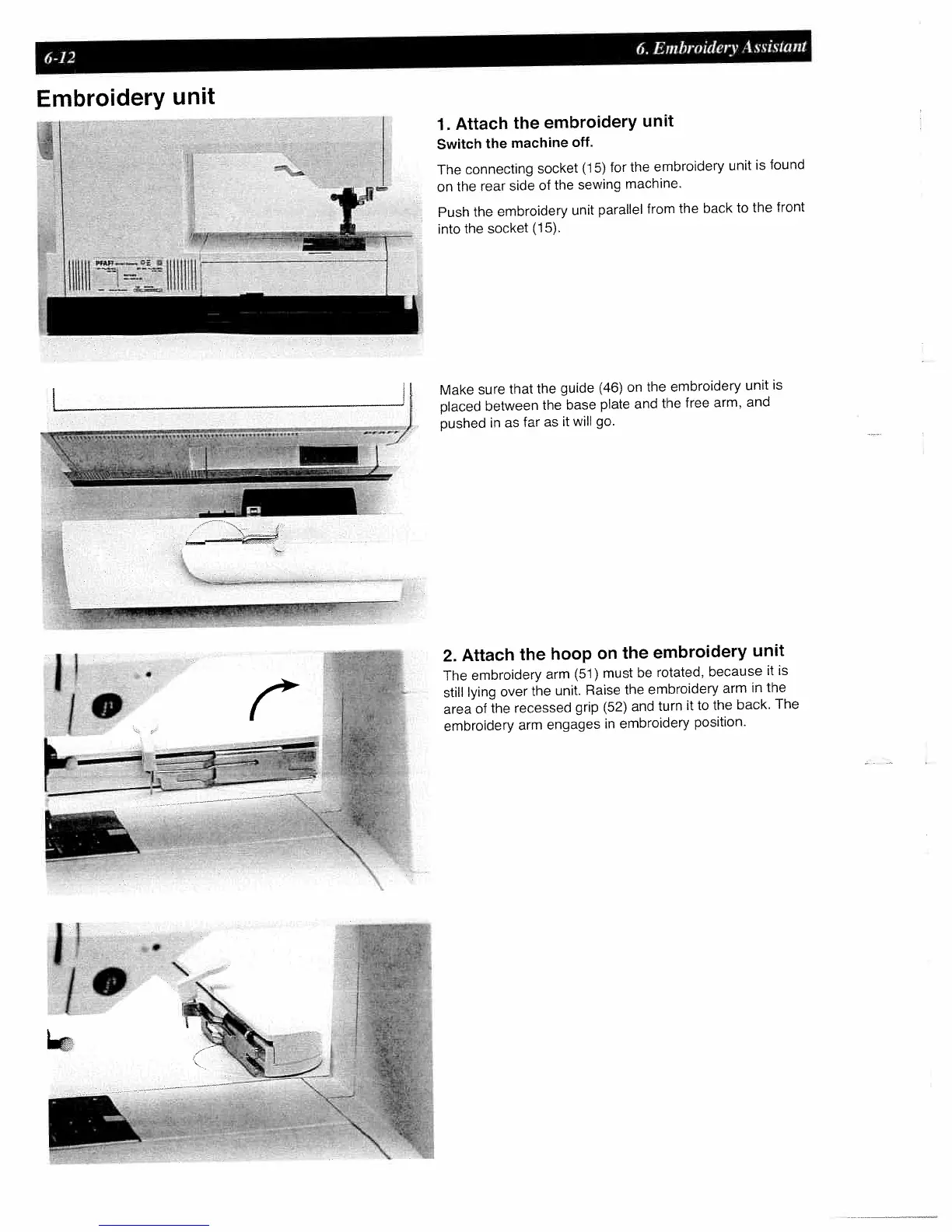

Pfaff Creative 2140 - Embroidery Unit; Attach the Embroidery Unit;The Hoop on the Embroidery Unit

Embroidery
unit
1.
Attach
the
embroidery
unit
Switch
the
machine
off.
The
connecting
socket
(15)
for
the
embroidery
unit
is
found
on
the
rear
side
of
the
sewing
machine.
Push
the
embroidery
unit
parallel
from
the
back
to
the
front
into
the
socket
(15).
S
to
ii
1
Make
sure
that
the
guide
(46)
on
the
embroidery
unit
is
placed
between
the
base
plate
and
the
free
arm,
and
pushed
in as
far as
it
will
go.
2. Attach
the
hoop
on
the
embroidery
unit
The
embroidery
arm
(51)
must
be
rotated,
because
it
is
still
lying
over
the
unit.
Raise
the
embroidery
arm
in
the
area
of
the
recessed
grip
(52)
and
turn
it
to
the
back.
The
embroidery
arm
engages
in
embroidery
position.
6-12
6.
Embroidery
