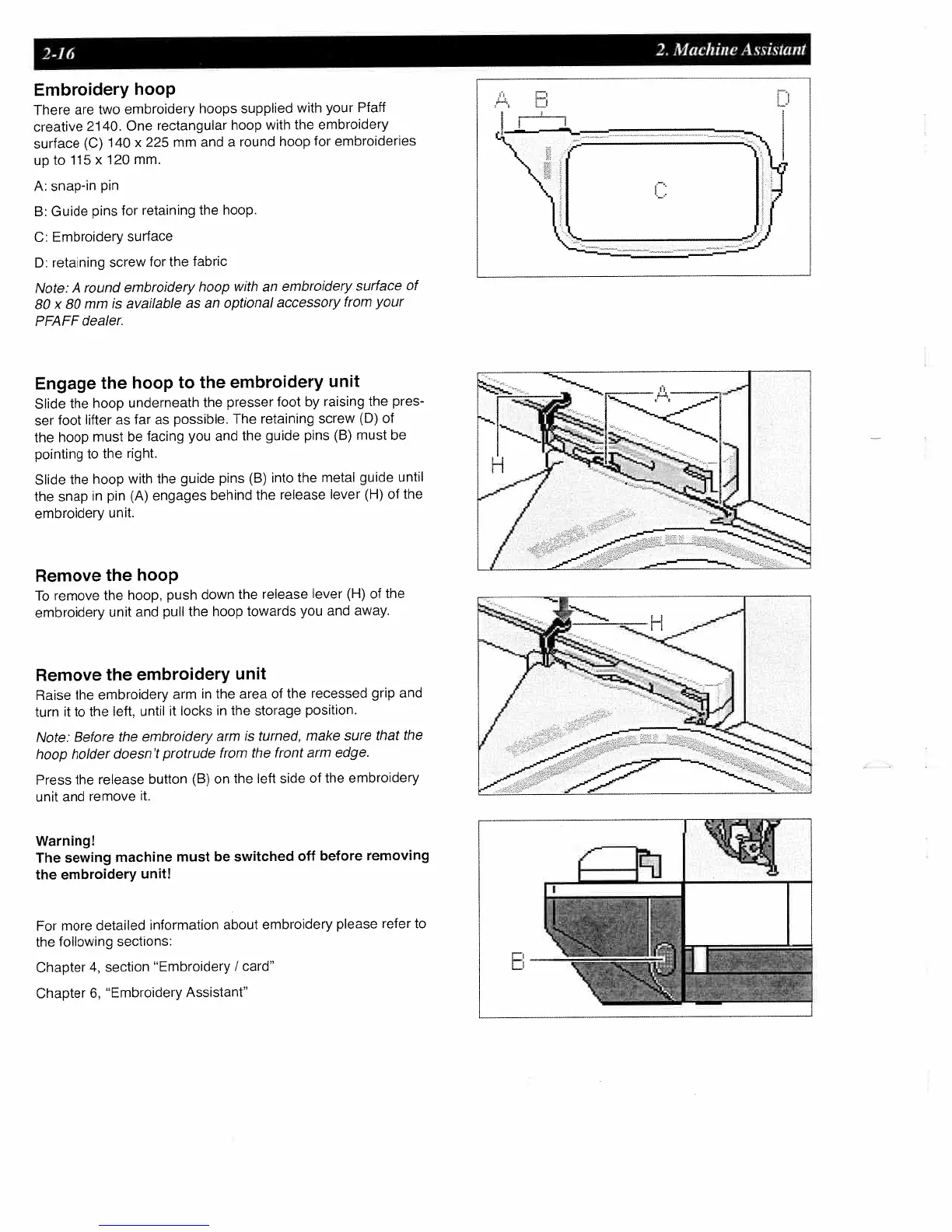

Pfaff Creative 2140 - Embroidery Hoop; Engage the Hoop to the Embroidery Unit; Remove the Hoop; Remove the Embroidery Unit

Embroidery
hoop
There
are
two
embroidery
hoops
supplied
with
your
Pfaff
creative
2140.
One
rectangular
hoop
with
the
embroidery
surface
(C)
140
x 225
mm
and
a
round
hoop
for
embroideries
up
to
115
x
120
mm.
A:
snap-in
pin
B:
Guide
pins
for retaining
the
hoop.
C:
Embroidery
surface
D:
retaining
screw
for
the
fabric
Note:
A
round
embroidery
hoop
with
an
embroidery
surface
of
80
x
80
mm
is available
as an
optional
accessory
from
your
PFAFF
dealer.
Engage
the
hoop
to
the
embroidery
unit
Slide
the
hoop
underneath
the
presser
foot
by
raising
the
pres
ser
foot
lifter
as
far
as
possible. The
retaining
screw
(D)
of
the
hoop
must
be
facing
you
and
the
guide
pins
(B)
must
be
pointing
to the
right.
Slide
the
hoop
with
the
guide
pins
(B)
into
the
metal
guide
until
the
snap
in
pin
(A)
engages
behind
the
release
lever
(H)
of the
embroidery
unit.
Remove
the
hoop
To
remove
the
hoop,
push
down
the
release
lever
(H)
of the
embroidery
unit
and
pull
the
hoop
towards
you
and
away.
Remove
the
embroidery
unit
Raise
the
embroidery
arm
in the
area
of the
recessed
grip
and
turn
it
to
the left,
until
it locks
in
the
storage
position.
Note:
Before
the
embroidery
arm
is
turned,
make
sure
that
the
hoop
holder
doesn
‘t
protrude
from
the front
arm
edge.
Press
the
release
button
(B)
on the
left
side
of
the
embroidery
unit
and
remove
it.
Warning!
The
sewing
machine
must
be
switched
off before
removing
the
embroidery
unit!
For
more
detailed
information
about
embroidery
please
refer
to
the
following
sections:
Chapter
4,
section
Embroidery
/ card”
2-16
2.
Machine Assistant
Chapter 6,
“Embroidery
Assistant”
