Pfaff Creative 2140 User Manual

I SL4LI V
Ii.4LL.( IVII
IUI

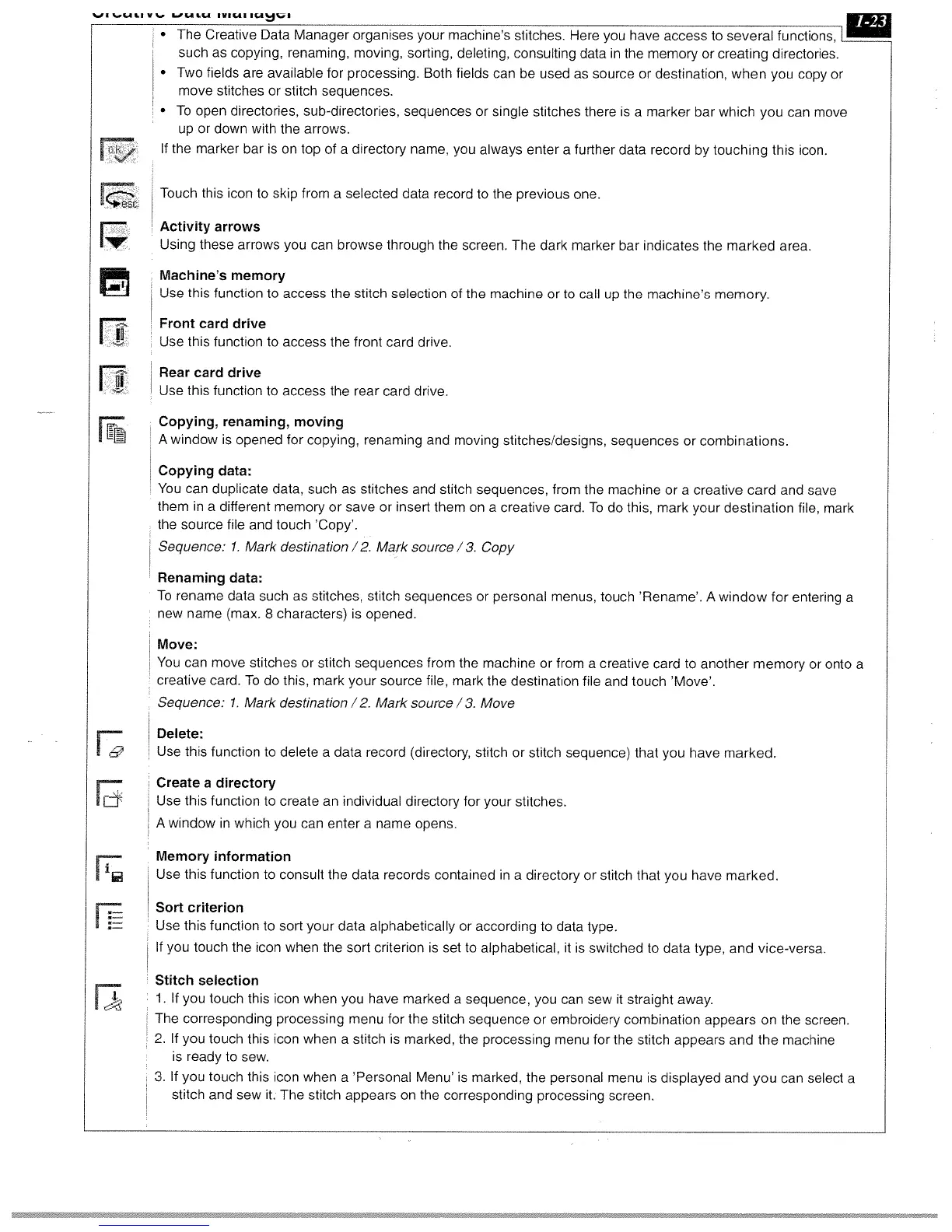

• The Creative
Data Manager
organises
your
machine’s
stitches.
Here you
have access
to several
functions,
such
as
copying, renaming,
moving,
sorting, deleting,
consulting
data
in the
memory or
creating
directories.
•
Two fields are
available for
processing.
Both
fields
can
be used
as
source
or
destination,
when
you
copy or
move stitches
or stitch
sequences.
• To
open
directories,
sub-directories,
sequences
or single
stitches there
is
a
marker
bar which
you
can move
up
or
down with the
arrows.
If the marker
bar is on top
of
a
directory
name, you
always enter
a
further
data record
by touching
this icon.
Touch
this icon
to
skip from
a selected
data
record
to
the previous
one.
Activity
arrows
V
Using these
arrows
you can
browse
through
the
screen.
The dark marker
bar indicates
the marked
area.
Machine’s
memory
Use
this
function
to
access
the stitch
selection of
the machine
or to call up
the machine’s
memory.
Front card
drive
Use
this function
to
access the
front card drive.
Rear
card drive
Use this function
to access
the rear card
drive.
Copying,
renaming, moving
A window
is opened
for copying,
renaming and
moving stitches/designs,
sequences
or
combinations.
Copying data:
You
can duplicate
data, such
as
stitches
and stitch sequences,
from
the machine
or a creative
card and
save
them in a different
memory
or save or
insert them on
a
creative card.
To
do this,
mark
your
destination
file, mark
the
source
file and touch
‘Copy’.
Sequence:
1. Mark
destination
/ 2.
Mark source
/
3. Copy
Renaming
data:
To rename
data
such
as
stitches, stitch
sequences
or
personal
menus,
touch ‘Rename’.
A window
for entering
a
new
name
(max.
8
characters)
is
opened.
Move:
You
can move
stitches or stitch
sequences
from the machine
or from
a
creative card
to
another
memory
or onto a
creative
card.
To do this, mark
your source
file, mark
the destination
file and touch
‘Move’.
Sequence:
1. Mark
destination
/2.
Mark source
/ 3.
Move
Delete:
Use
this
function to
delete
a data
record (directory,
stitch
or
stitch sequence)
that you
have marked.
Create
a directory
Use
this function
to create an
individual directory
for your
stitches.
A
window
in which
you can enter
a
name
opens.
Memory
information
Use this
function to
consult the
data records
contained in
a
directory or
stitch that
you
have marked.
Sort
criterion
Use this
function to sort
your data
alphabetically
or according
to data type.
If you touch
the
icon when
the sort
criterion
is set
to
alphabetical,
it
is switched
to data
type, and vice-versa.
Stitch
selection
1.
If
you touch
this icon
when
you
have
marked
a
sequence,
you
can sew it
straight away.
The
corresponding
processing
menu
for the
stitch sequence
or embroidery
combination
appears
on the screen.
2. If you touch
this
icon when
a
stitch is
marked,
the
processing
menu for
the stitch appears
and the
machine
is ready
to sew.
3.
If
you
touch
this
icon when
a
‘Personal
Menu’ is marked,
the
personal menu
is
displayed
and
you
can
select a
stitch and
sew
it. The stitch
appears
on
the corresponding
processing
screen.
