3 Product description
3.1 Function
The turbopump forms a compact unit with the electronic drive unit. The integrated power supply pack
acts as a voltage supply.
1
2
3
4
5
6
78
91112 10

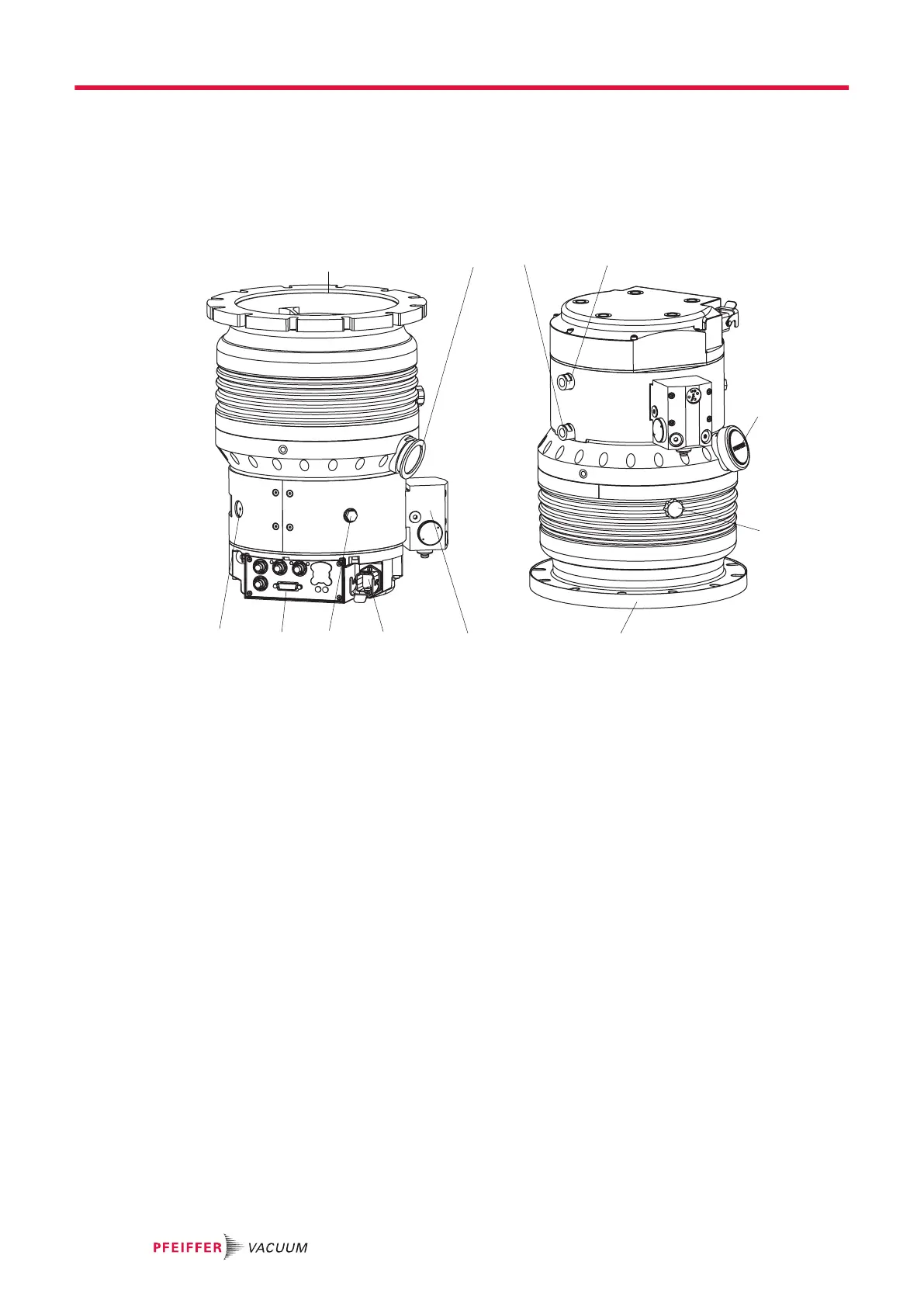

Fig. 2: Design HiPace 1200 standard and U version
1 High vacuum connection 7 Protective cover for the high vacuum flange
2 Fore-vacuum connection, DN 40 ISO-KF 8 Operating fluid pump
3 Cooling water connection, outlet 9 Mains connection "AC in"
4 Cooling water connection, inlet 10 Sealing gas connection
5 Protective cover for the fore-vacuum flange 11 Electronic drive unit TC 1200
6 Venting screw 12 Ground terminal
3.1.1 Cooling
●
Water cooling
The electronic drive unit automatically regulates the drive power down in the event of excessive temper-
atures.
3.1.2 Rotor bearing
Hybrid-bearing turbopump
●
High vacuum side: wear-free permanent magnetic bearing
●
Fore-vacuum side: ball bearing with ceramic balls
Turbopumps from the hybrid bearing HiPace series use ceramic ball bearings for the rotor bearing on
the fore-vacuum side. The operating fluid pump provides a defined lubrication and continuous function-
ing of the ball bearings.
3.1.3 Drive
●
Electronic drive unit TC 1200
3.2 Scope of delivery
●
Turbopump with electronic drive unit and integrated power supply pack
●
Protective cover for the high vacuum connection
