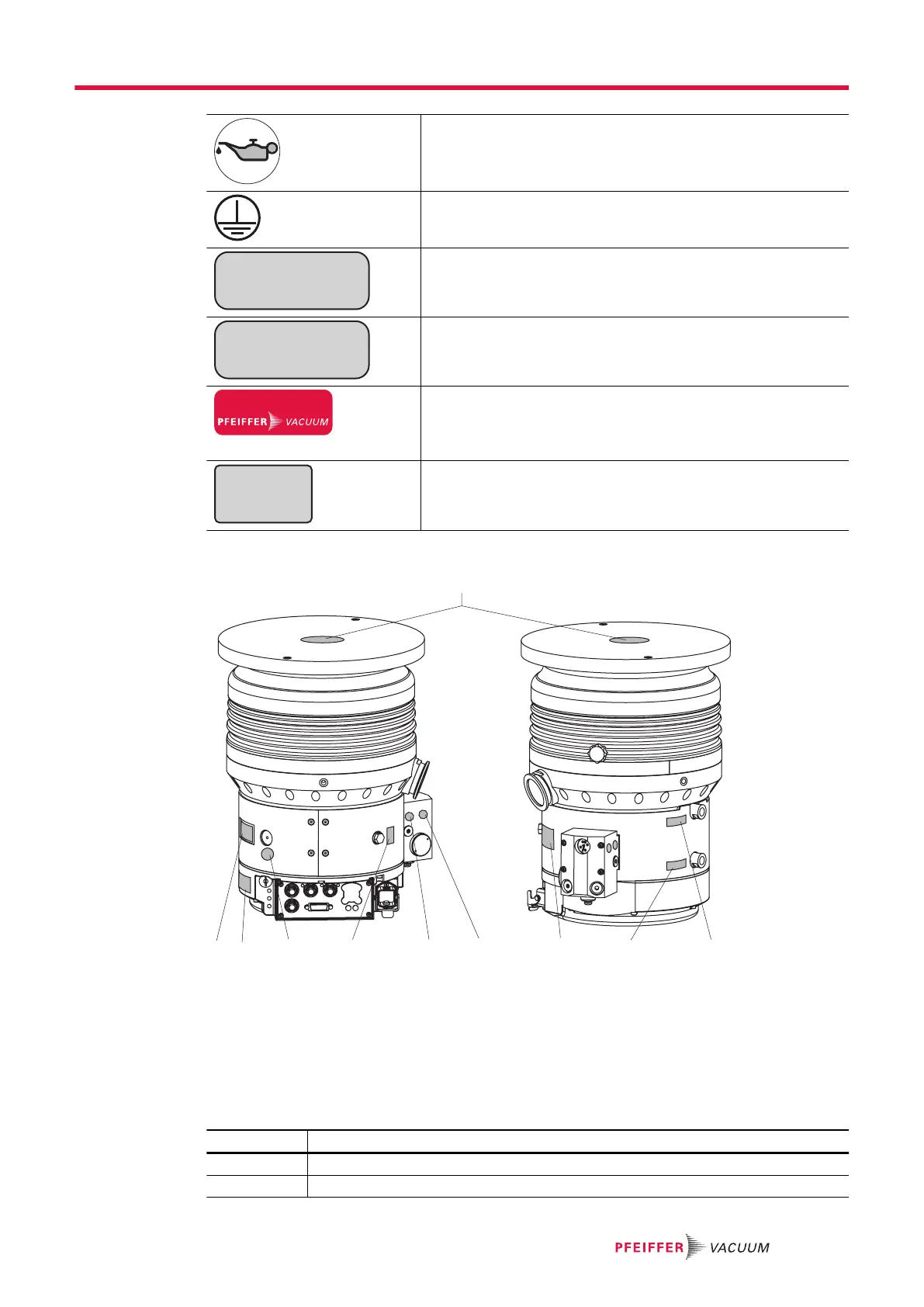

Pfeiffer Vacuum PMP06021 - Abbreviations; Tbl. 1: Stickers on the Product; Fig. 1: Position of the Labels on the Product

Operating fluid filler screw
This sticker describes the position of the respective filler screw for
operating fluid.
Protection class
This sticker describes protection class 1 for the product. The posi-
tioning indicates the position for the ground connection.
COOLING WATER IN
max. 6 bar (90 psi)
Cooling water connection
This sticker indicates the position and conditions for the cooling
water supply of the turbopump.
COOLING WATER OUT
Cooling water connection
This sticker indicates the position for the cooling water outlet of the
turbopump.
warranty seal
Closure seal
The product is sealed ex-factory. Damaging or removing a closure
seal results in loss of the warranty.
Is stuck on concealed underneath the electronic drive unit.
PURGE
Sealing gas connection note
This label describes the position for the exclusive sealing gas con-
nection.
Tbl. 1: Stickers on the product
1
678910
5
234
Fig. 1: Position of the labels on the product
1 Label for operating instructions 6 Label for operating fluid
2 Label for cooling water outlet 7 Label for sealing gas connection (purge)
3 Label for cooling water inlet 8 Label for ground terminal
4 Label for mounting orientation 9 Electronic drive unit type plate
5 Label for operating instructions 10 Turbopump type plate
1.3.4 Abbreviations
Abbreviation Meaning in this document
AC Alternating current (AC)
C Corrosive gas version
About this manual
9/74
