Pfeiffer Vacuum PMP06021 - Spare Parts; Fig. 31: Spare Parts Hipace 1200

12 Spare parts
8
7
5
6
1
4
3
2

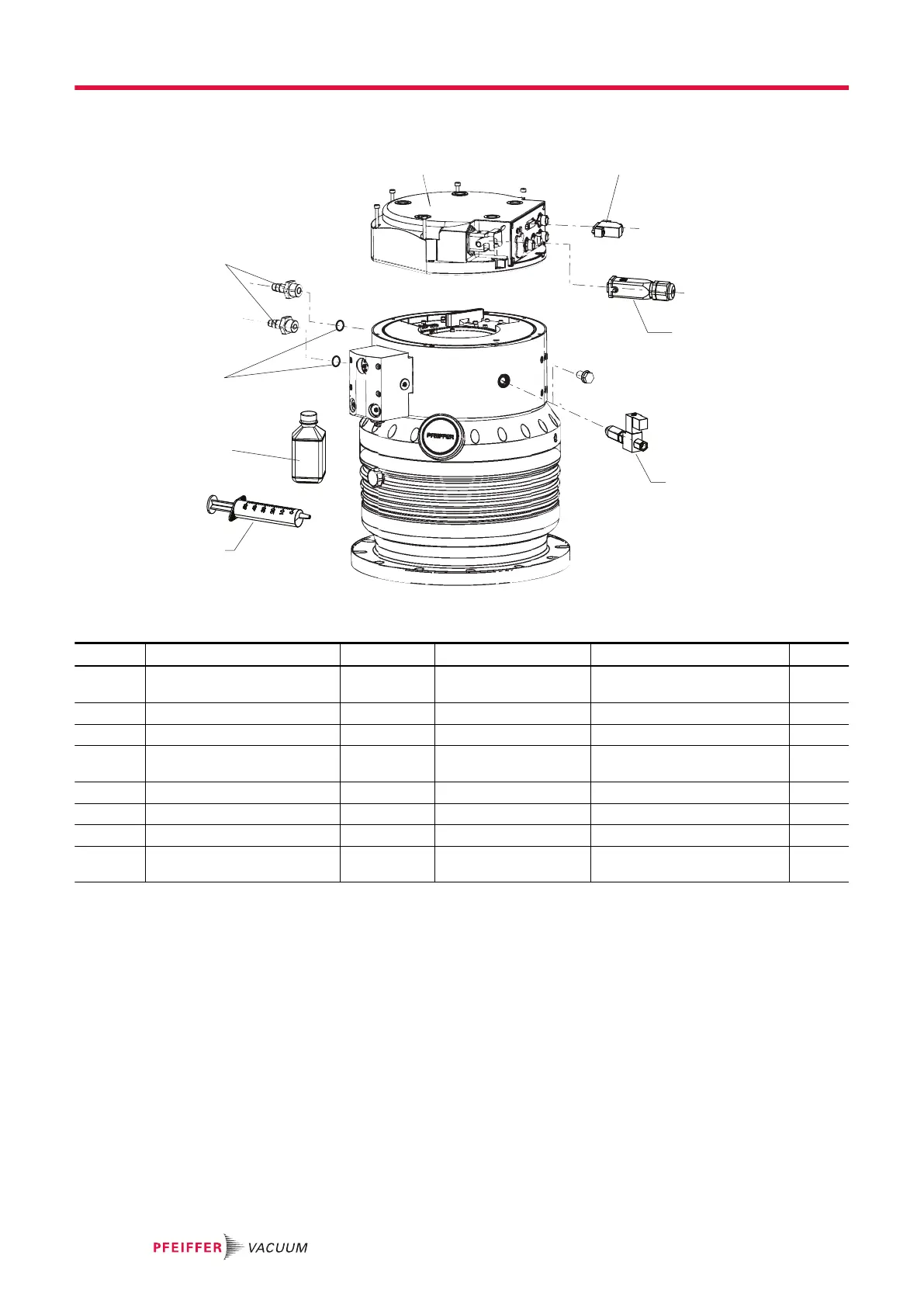

Fig. 31: Spare parts HiPace 1200
Position Designation Size Order number Note Pieces
1 Electronic drive unit TC 1200 refer to the rating plate depending on the connection
panel
1
2 "remote" mating plug PM 061 378 -X with solder tags 1
3 Supply socket HAN 3 PM 061 200 -T 1
4 Sealing gas valve 17.5 – 20
sccm
PM Z01 313 1
5 Syringe 50 ml PM 006 915 -U 1
6 Operating fluid F3 50 ml PM 006 336 -T Other quantities on request 1
7 Sealing ring P 3529 145 -A for threaded nozzle 2
8 Threaded nozzle 1/4” thread P 0998 067 for inner hose diameter 7 to
8 mm
2
Tbl. 18: Available spare parts
Spare parts
