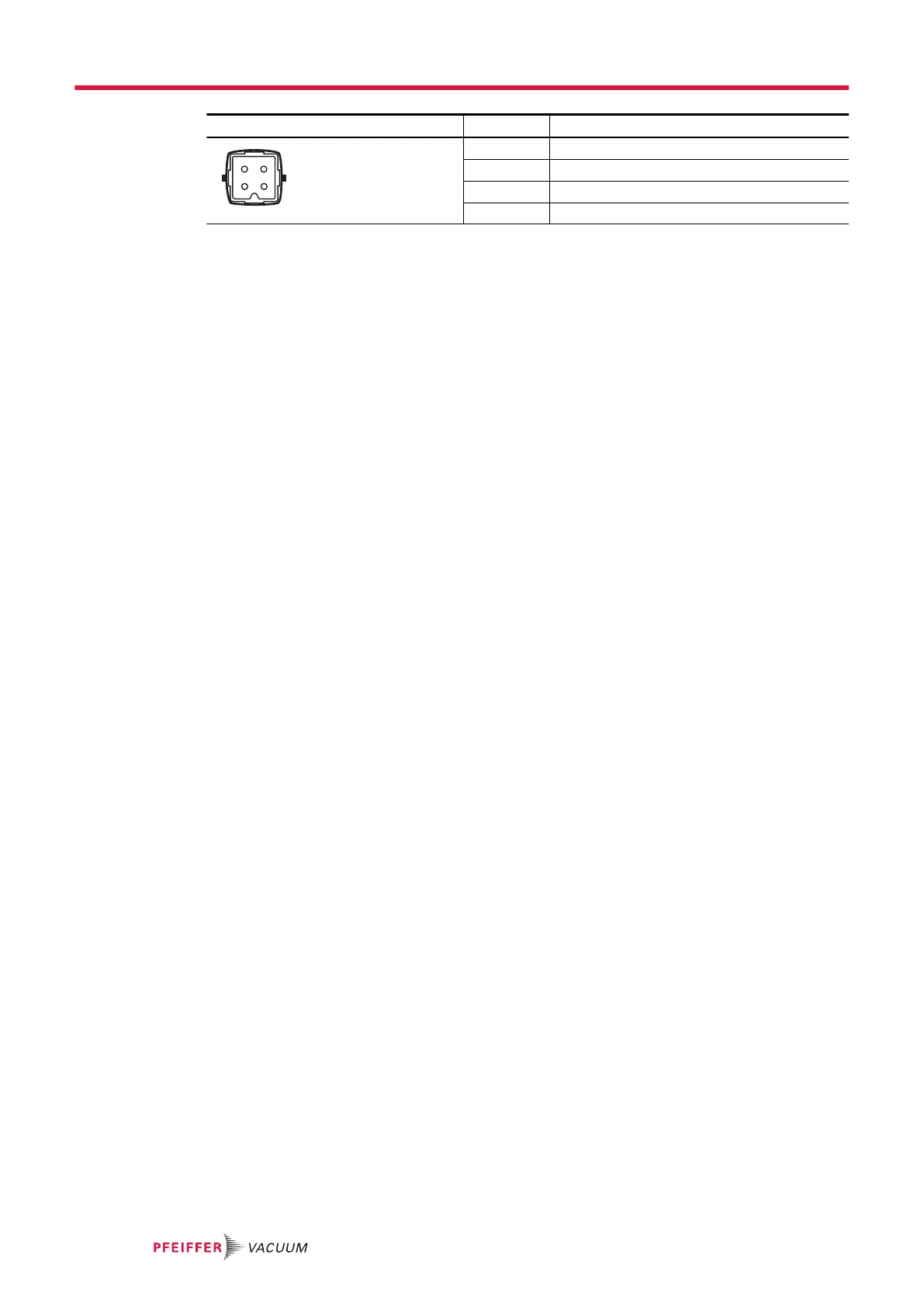

Pfeiffer Vacuum PMP06021 - Tbl. 12: Terminal Lay-Out of the Power Supply Connector

Pin Assignment
1
2 3
PE
1 Phase L
2 Neutral conductor
3 not connected
PE Earthed conductor
Tbl. 12: Terminal lay-out of the power supply connector
Preparing a supply cable for the turbopump
There are 2 options for configuring the mains connection for the turbopump.
►
Make sure that you have the correct supply voltage.
►
Order a corresponding mains connection cable from the Pfeiffer Vacuum accessories range.
►
Assemble your own mains connection cable using the HAN 3A connecting socket from the ship-
ment.
