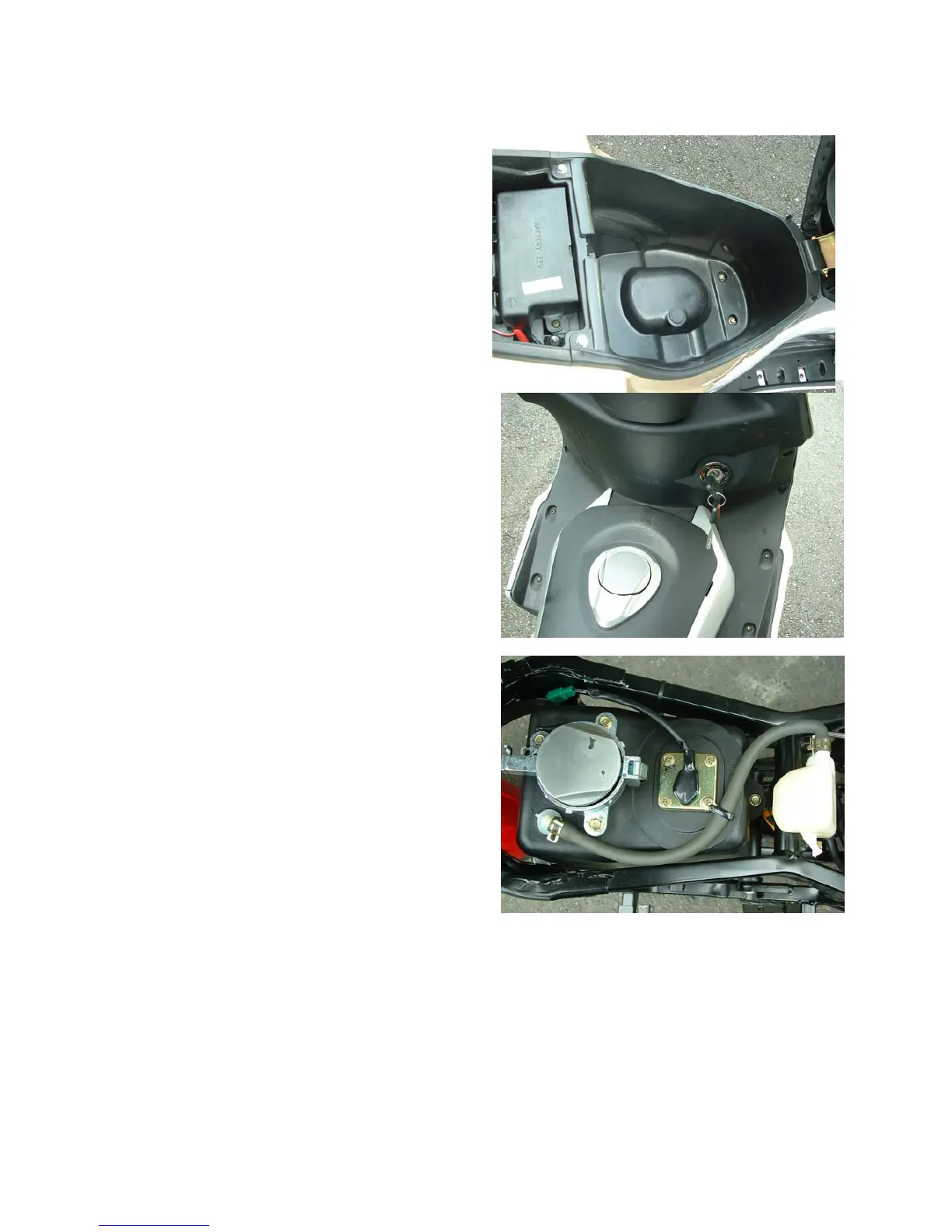

C. Dismantling and assembling
Fuel Tank
1.Remove the front luggage box.
Open the fuel tank cover cap.
2.Remove the fuel tank cover..
.
3.Remove the fuel pipe.
4.Remove the connecting terminal of
the fuel gauge.
5.Remove the fuel gauge.
6.Remove the fixing blot of the fuel tank.
7.Take off the fuel tank.
8.When re-assembling, please follow the
opposite procedure of disassembling.
Locking torque: M6: 1.0-1.2kgf-m
