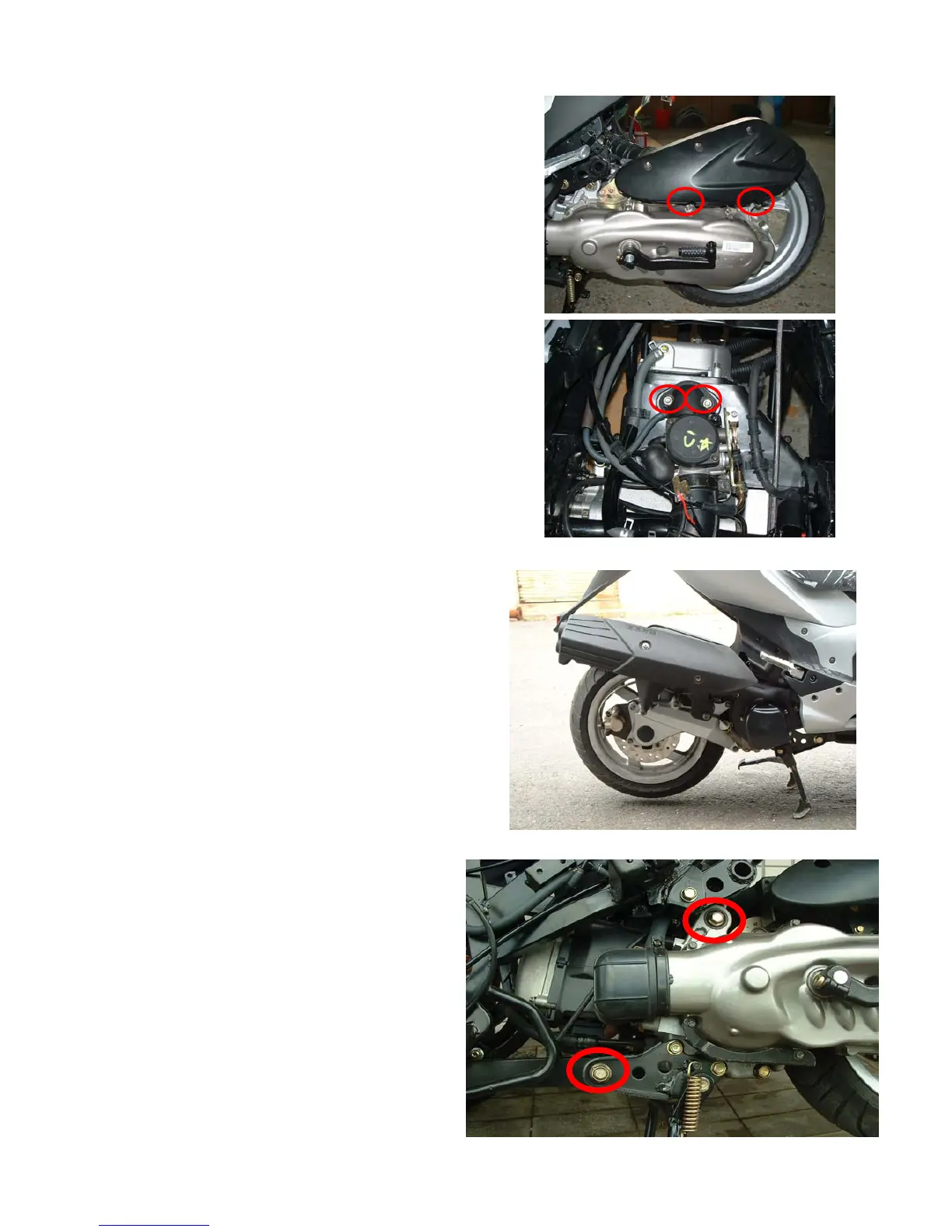

(2) Engine dismantling
1.Take off the luggage compartment.
2.Take off the left and right body
covers.
3.Take off the air cleaner fixing screws.
4.Loosen 2 nuts of intake manifold, withdraw
intake system assembly.
5.Remove vacuum pipe, fuel pipe ,auto
choke, cap of spark plug, rear
brake cable carburetor pipe, starter motor cable.
6.Remove the rear section of muffler, dismantle
the 2 bolts of rear brake caliper, then remove the
rear brake system assembly away from rear fork.
7.Loosen bolts of upper & lower engine hanger.
8.Remove the engine.
(3).Installing Engine
1.To install engine, please reverse the
Above procedures.
2.Locking torque:
M8: 2.0-3.0kgf.m
M10: 3.0-4.0kgf.m
M12: 5.0-6.0kgf.m
3.After installing, pleas do the following
Checking and adjustment:
a. Wiring for each circuit.
b. Throttle cable
c. Rear brake check.
d. fuel and oil route
