(2)Battery: Recharge when power is out

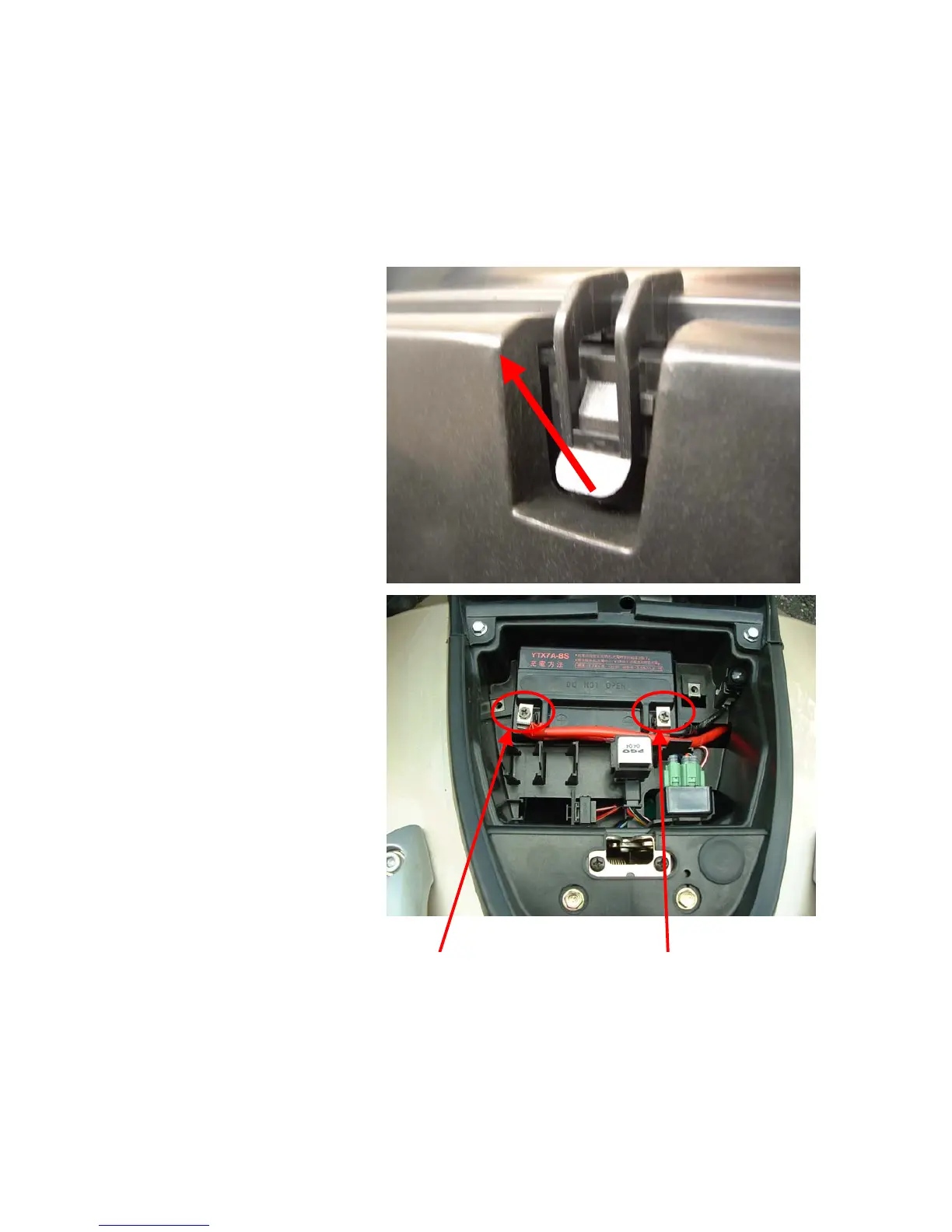

1.Remove the rear luggage cover by hand.
2.Screwing out the two screws on the battery cover. Remove the battery cover.
(G-MAX125/150/200/220)
3.Remove the negative cable and then the positive cable,→take out the battery to recharge.
4.To re-assemble the battery, please follow the opposite procedure of disassembling after
recharging.
Note:
A. The battery is totally sealed, do not remove seal bolts when recharging
B. It’s no need to add any electrolyte for this re-filling free battery
Please recharging (12V) by the following currency
G-MAX50: Standard recharging:0.4A* 5-10 hr or rapid recharging:4A* 30min.
G-MAX125/150: Standard recharging:0.7A* 5-10 hr or rapid recharging:3A* 60min.
G-MAX200/220/250: Standard recharging:0.9A* 5-10 hr or rapid recharging:3A*60min.
Positive Pole Negative Pole
