A. Plastic part dismantle Overview

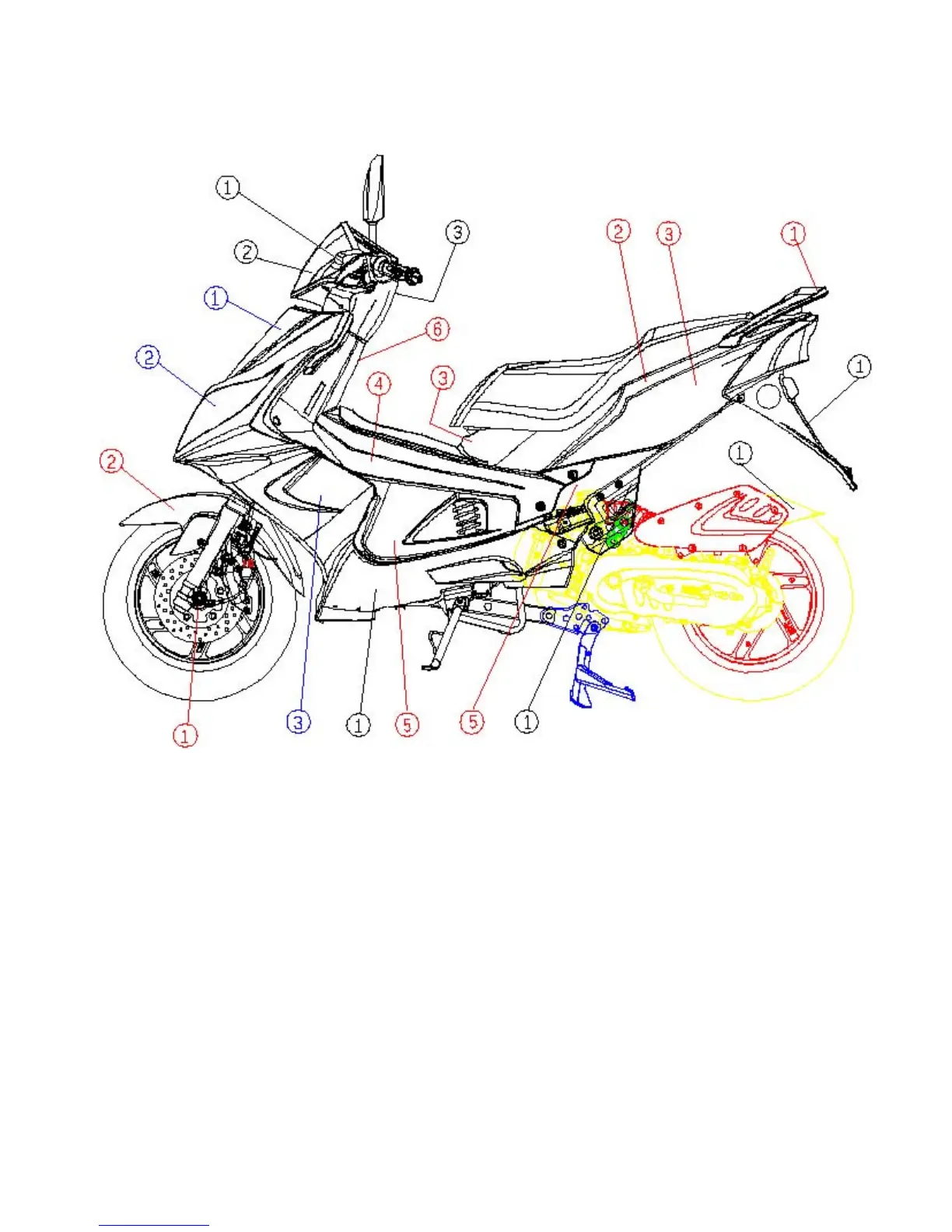

Dismantle the plastic parts according to above figure sequence by sub-assembly,
especially pay attention to followings:
Before dismantle front fender, dismantle the front wheel assy. First.
(G-MAX125/150 only)
Windshield & frt signal lamp cover shall be dismantled together.
LH & RH body cover shall be dismantled together.
