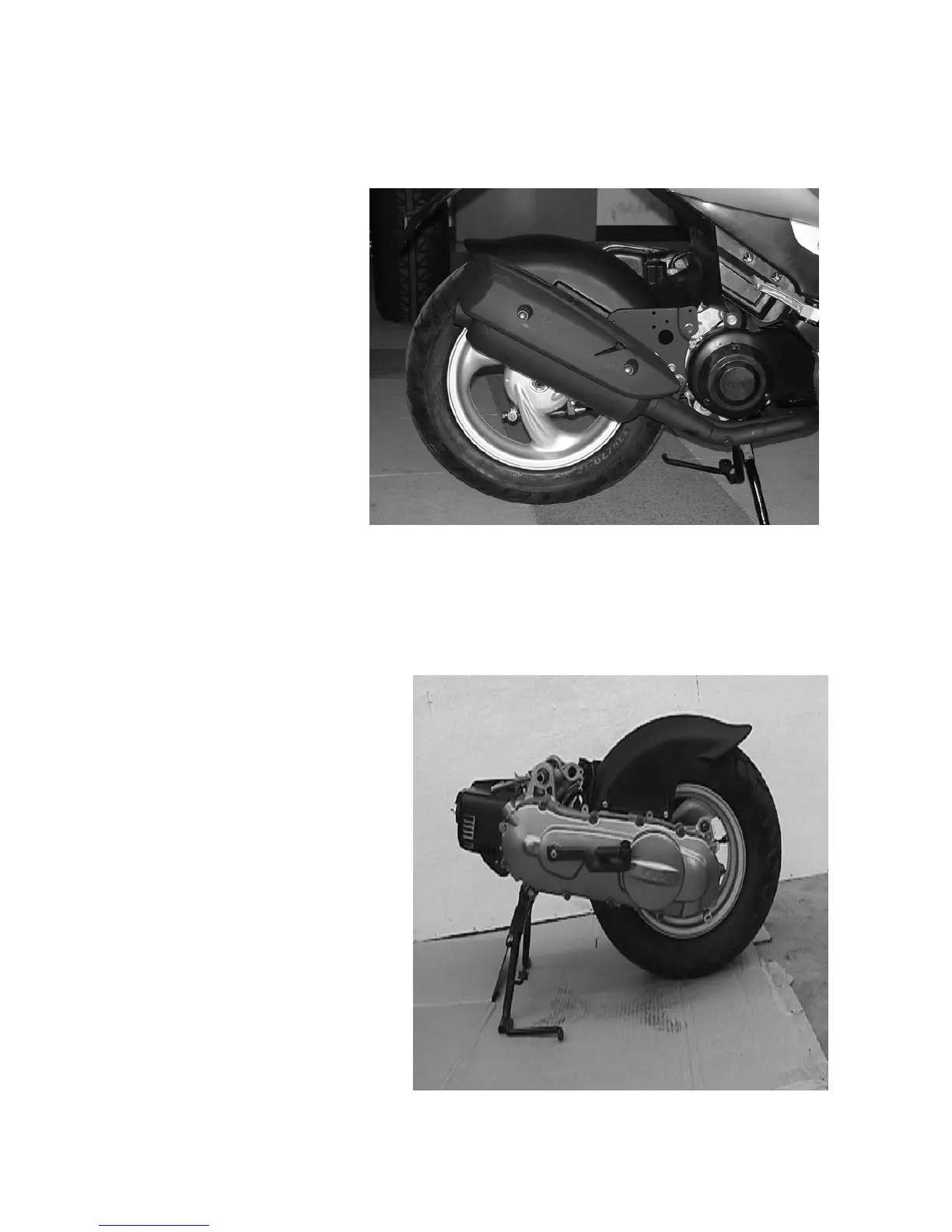

D. Dismantle the crankcase and crankshaft please follow the following procedures:

1.Remove the engine.

2.Remove the left crank case, the driving pulley (driving plate) clutch and belt.

3.Remove the air cleaner.
