(7) Ignition timing:
checking ignition timing:
1.remove seat the luggage compartment
2.Remove right body cover
3.Remove the fan case.
4.Check with ignition timing lamp.
keep the engine running at 1,900 ±
100 r.p.m the checking mark should
lay in ±3
0
apart From “F”, mark.
5.ignition timing: B.T.D.C.
17° ±3° / 1900rpm

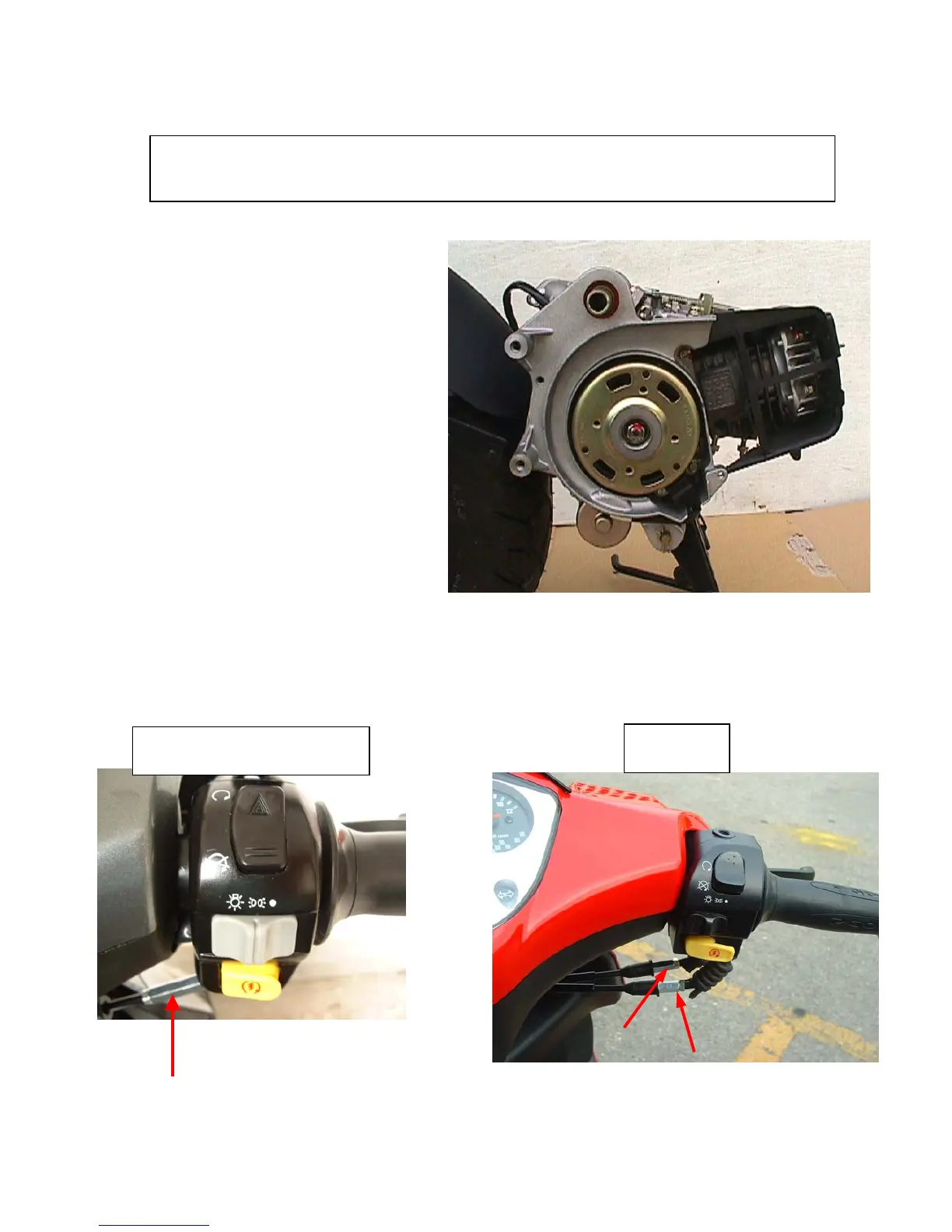

(8)Throttle cables adjustment:
1.check the clearance of throttle.
2.Normal clearance:1.5~3.5mm
3.Adjust it by rotating the adjust nut ; change it if the throttle cables can’t be adjusted.
This scooter is using CDI set, it is no need to adjust ignition timing.
If ignition timing is not correct, check the CDI sets and AC magneto, change it if it is
M2-50/125/150/200/220
M2-250
