14.3 Mounting the H 101 - P+ back on the Hasselblad H 1

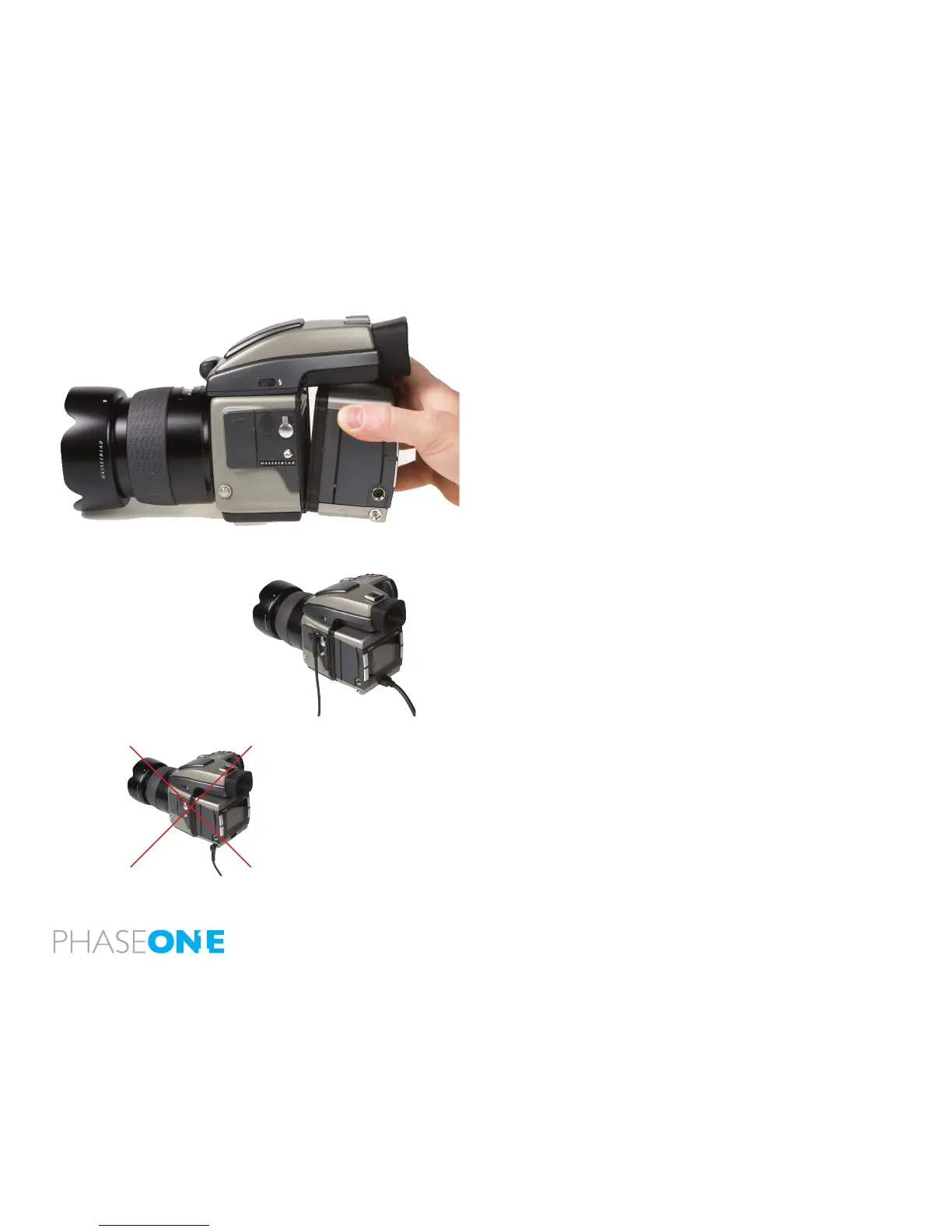

The H 101 – P 65+ back integrates fully with the H1 camera and acts as
a part of the whole camera system.
When no cassette is attached to the Hasselblad camera, the mirror is
up and the shutter is open. This is the correct position.
When attaching the H 101 - P+ back to the camera, the shutter will
close and the mirror comes down.
It is important to ensure that the bottom part of the H 101 - P+ back
camera back is pressed well into the locking mechanism before the
upper locking mechanism is pressed together.
Use of cables
No cables are required between the H 101 - P+ back and the Hasselblad H1.
Flash sync cable must be connected to the Hasselblad H1 camera house.
The ash sync cable must NOT be connected to the camera back when
used on a Hasselblad H 1.
The ash sync connector on the Camera back is only intended for use with
a Phase One FlexAdaptor, or other large format/technical adaptors.
Cabling Cables shipping with H101 – P+ backs (Value Added purchase only)
The P+ backs for Hasselblad H1/H2 are shipping with these cables
(Value Added purchase only):
Part# 50300143 Multi connector to Lens sync (for use with Large format
– in two shot mode)
Part# 50300144 From multi connector to mini jack female (for use with
Large format wakeup cable or Kapture Group one shot adaptor cable)
