Mechanical Instructions
EN 13BJ2.4U/BJ2.5U LA 4.
Figure 4-21 Speaker Compartment
1. Remove screws [1] inside the frame and on the outer rim
that are indicated with an arrow.
2. Push back the clamps [2] and take out the frame.
4.3.11 AmbiLight Diffusor Frame
Before the AmbiLight lamp units can be removed, the
AmbiLight diffusor frame must be lifted. Before this, the
speaker frame must be removed, as described earlier in this
chapter. See figure “AmbiLight diffusor frame removal” for
details.

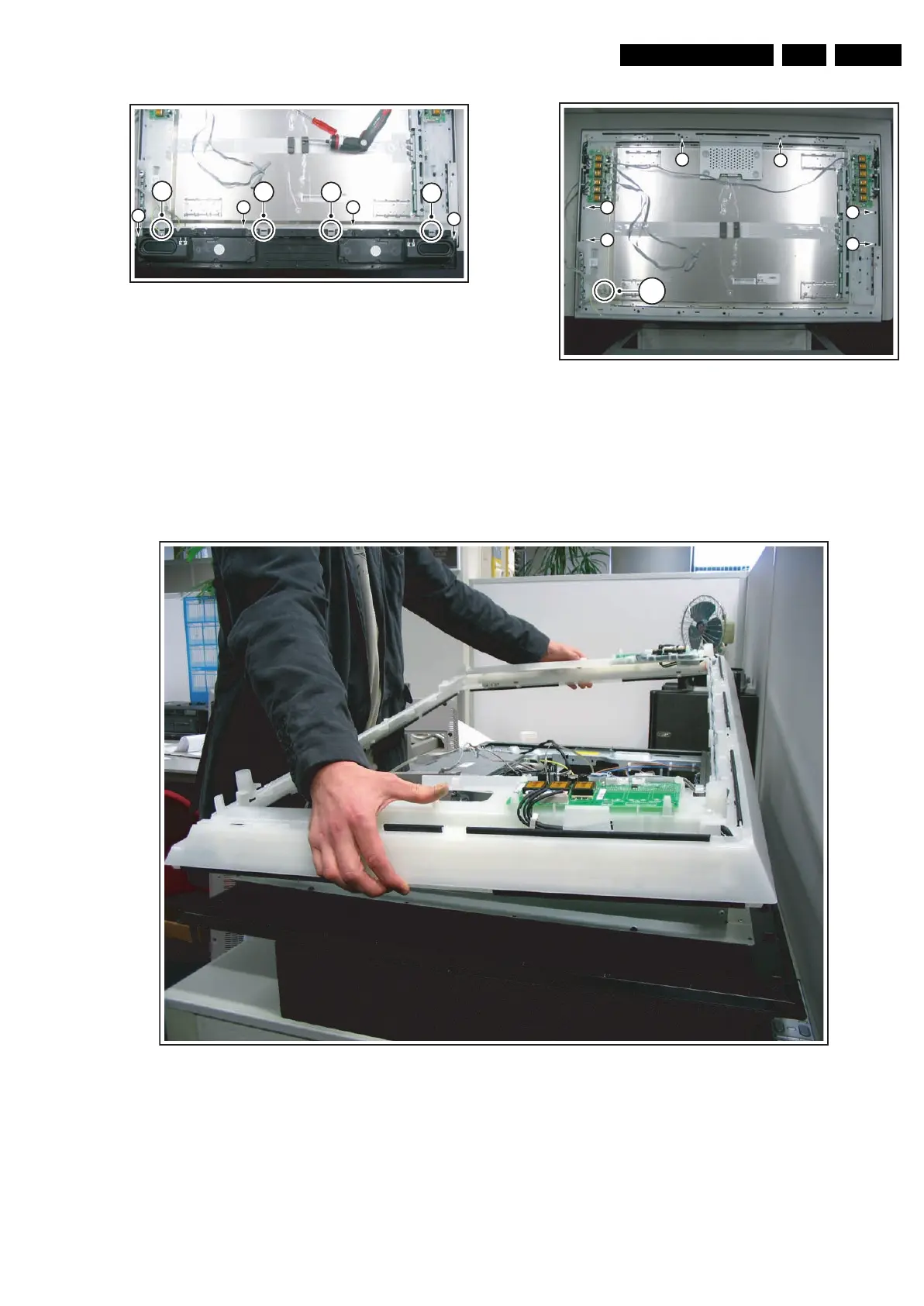

Figure 4-22 AmbiLight Diffusor frame removal
1. Remove tapping T10 screws [1] that are indicated with an
arrow.
2. Release earth-cable and cable that leads to the LED Panel
from its clamps [2].
3. Carefully lift the plastic frame from the set. See Figure
“AmbiLight diffusor frame lift”.
Figure 4-23 AmbiLight diffusor frame lift
Now the AmbiLight lamp units can be removed from the frame.
Each of them is fixed with T10 parker screws: both on the inside
and on the outside of the frame.
G_15910_024.eps
230606
2
2
2
2
1
1 1
1
G_15910_025.eps
230606
2
1
1
1
1
1
1
G_15960_104.eps
070306
