2. No black bars when selecting 21:9 Zoom Mode
1. No distortion on video/picture quality when selecting 21:9 Zoom Mode

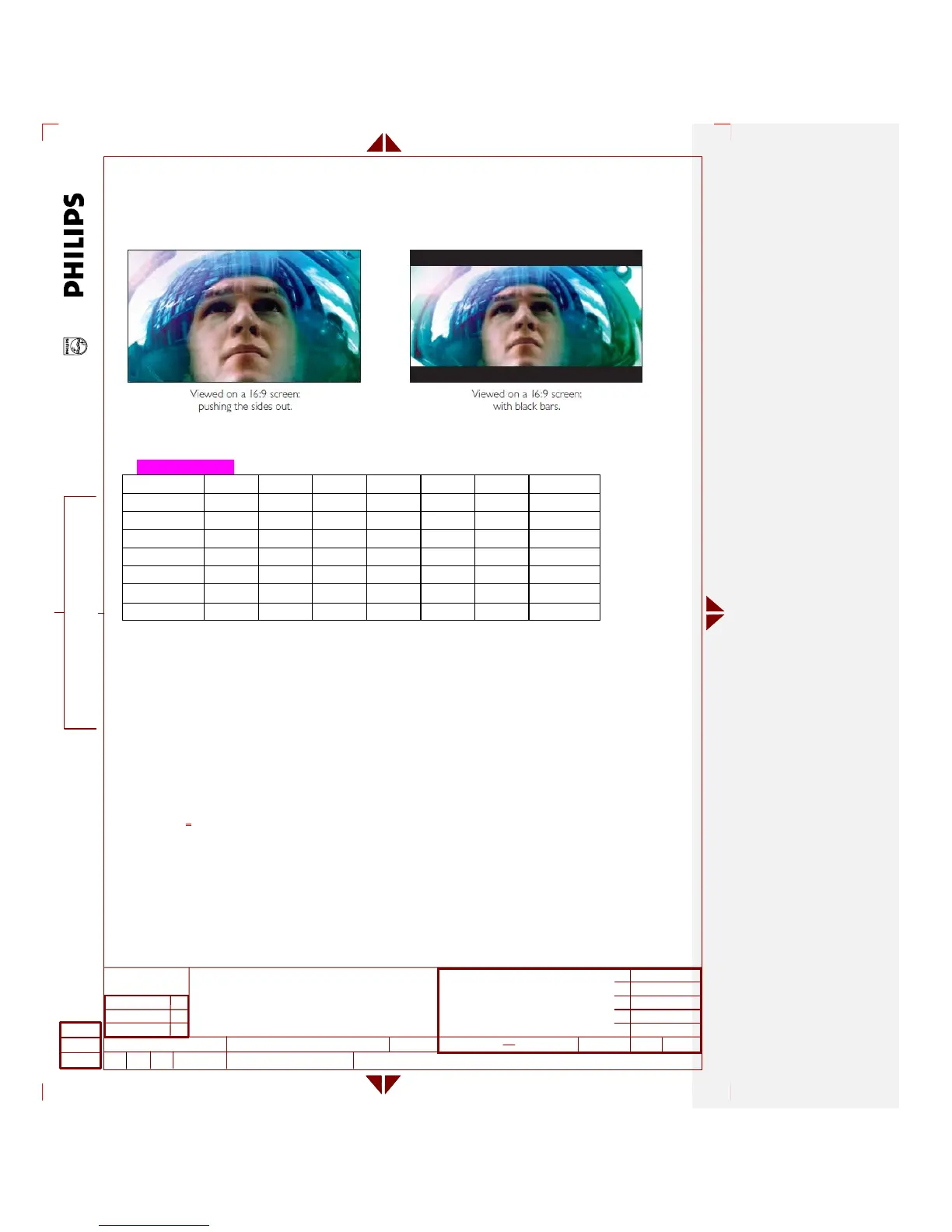

2. 21:9 video/picture format viewed on BDL5571V: 21:9 Zoom Mode with pushing the sides out; while Full Zoom Mode with
black bars:
4.2.3 Picture in Graphics
PIP Specification
Input DVI VGA HDMI YPbPr S-Video Video Card OPS
DVI x x x x o o x
VGA x x x x o o x
HDMI x x x x o o x
YPbPr x x x x o o x
S-Video o o o o x x o
Video o o o o x x o
Card OPS x x x x o o x
4.3 Audio
Audio control handles the initialization of the audio parameters and the recall of the audio last
status.
4.3.1 Sound related requirements
• Volume control - Should be gradual change of sound level from zero to maximum
output.
• Soft mute - A short and gradual increase of the sound to prevent the
pop sound during AC plug in/out, standby on/off, channel change,
mute on/off.
•
Rattling - Set to the determined volume level setting to reach
SPL=75dBA(DVT=78dba)
4.4 Picture Shifting
Auto mode: To detect A,B,C,D,E to judge the picture content.
Same picture content: to execute the burn-in prevention program.
Different picture content: don’t execute the burn-in prevention program.
User Defined mode: User can define the time interval (10~900 seconds) to run this feature
Off mode: Don’t execute the burn-in prevention program.
