0.9 BDL3245E/BDL4245E/BDL4645E
32”/42”/46” FHD LCD PUBLIC DISPLAY
2011-07-01 PHILIPS Page 16 of 38
MMD Con
idential

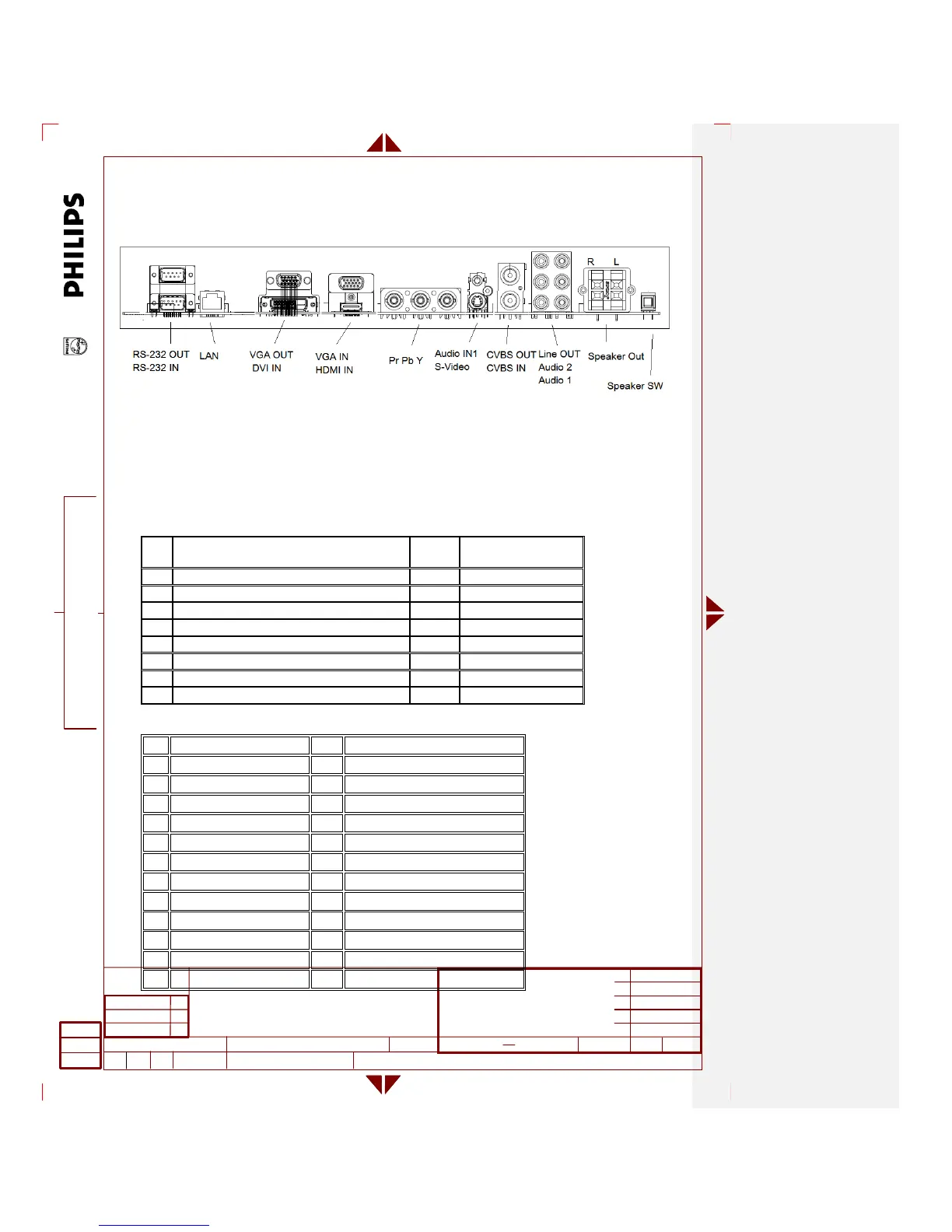

2.6.4 I/O Connectors
Connectivity overview:
Rear connectors:
• AC Power input: 3-pin IEC-320-C13 socket mains AC in.
• AC Power Out For specific IPCs or media players.
• AC switch: Mains switch at line.
• PC inputs: VGA/DVI-D
a、 VGA D-Sub: 15 pins VGA D-Sub Female connector with lime green
3.5mm:
Mini-jack audio stereo connector.
VGA D-Sub connector pin assignment:
Pi
n
Signal Assignment Pin
Signal
Assignment
1 Red video 2 Green video
3 Blue video 4 GND
5 GND 6 Red GND
7 Green GND 8 Blue GND
9 +5V (Supply from PC for DDC circuit) 10 Sync GND
11 GND 12 DDC serial data
13 H-sync 14 V-sync
15 DDC serial clock
b、 DVI-D input: Digital input includes digital video, HDCP supported.
DVI connector pin assignment:
Pin Signal Assignment Pin Signal Assignment
1 TMDS Data2– 2 TMDS Data2+
3 TMDS Data2/4 Shield 4 N/A
5 N/A 6 DDC clock
7 DDC data 8 N/A
9 TMDS Data1– 10 TMDS Data1+
11 TMDS Data1/3 Shield 12 N/A
13 N/A 14 +5V
15 GND 16 Hot plug
17 TMDS Data0– 18 TMDS Data0+
19 TMDS Data0/5 Shield 20 N/A
21 N/A 22 TMDS clock shield
23 TMDS clock+ 24 TMDS clock–
To Next Page
