Service Modes, Error Codes, and Fault Finding
EN 24 JL2.1E AA5.

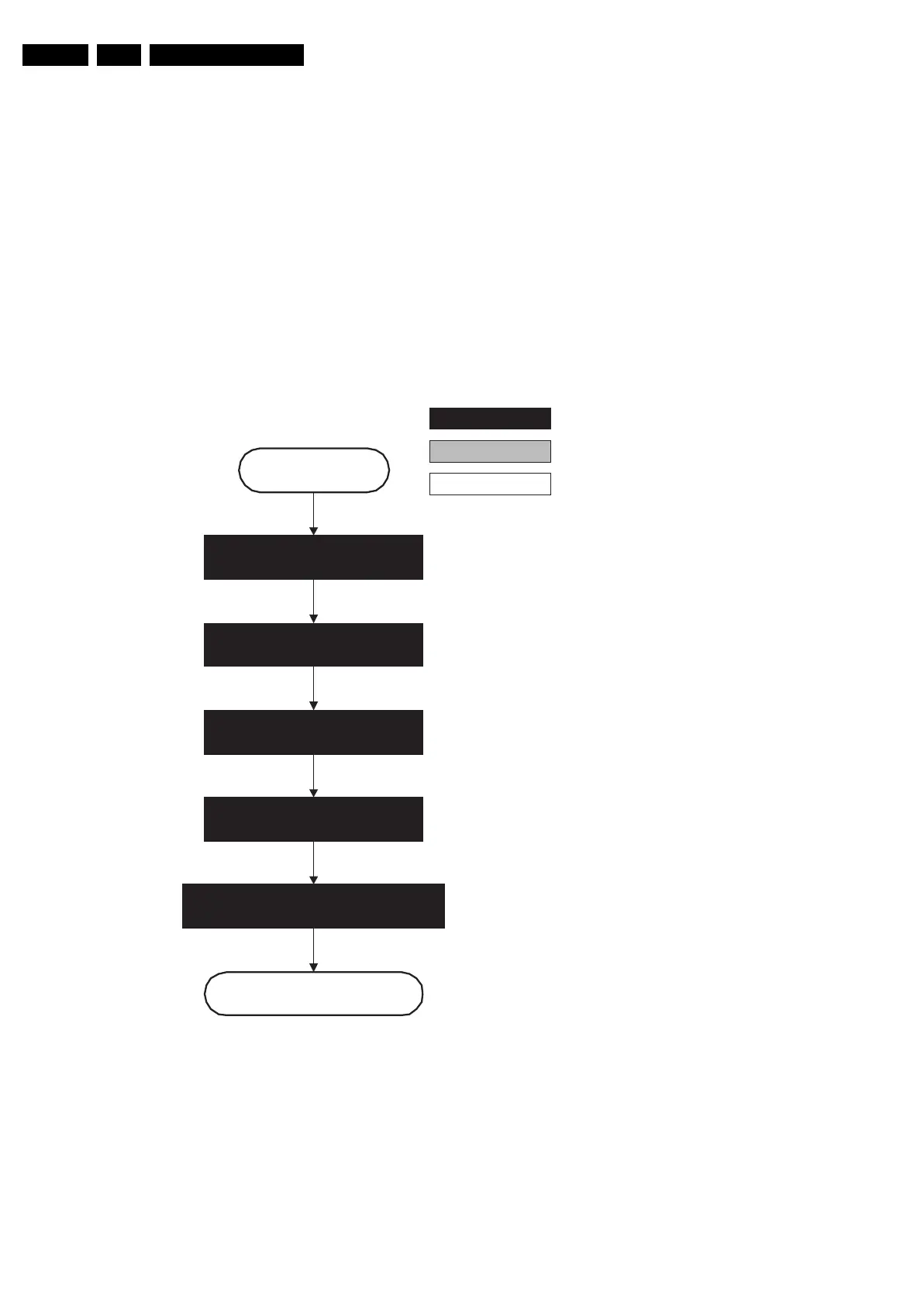

Figure 5-7 “Active” to “Semi Stand-by” flowchart
autonomous action
action holder: St-by
action holder: MIPS
F_15710_154.eps
200905
Semi Standby
Active
Mute all sound outputs.
Mute all video outputs
Switch “off” LCD lamp
Switch “off” the display by sending the
Output-Enable (I²C) command to the MOP.
Switch reset-audio and sound-enable
lines “high”
