Philips Q552.2E - Page 63

IC Data Sheets
EN 63Q552.2E LA 8.
2011-Jun-01
back to
div. table

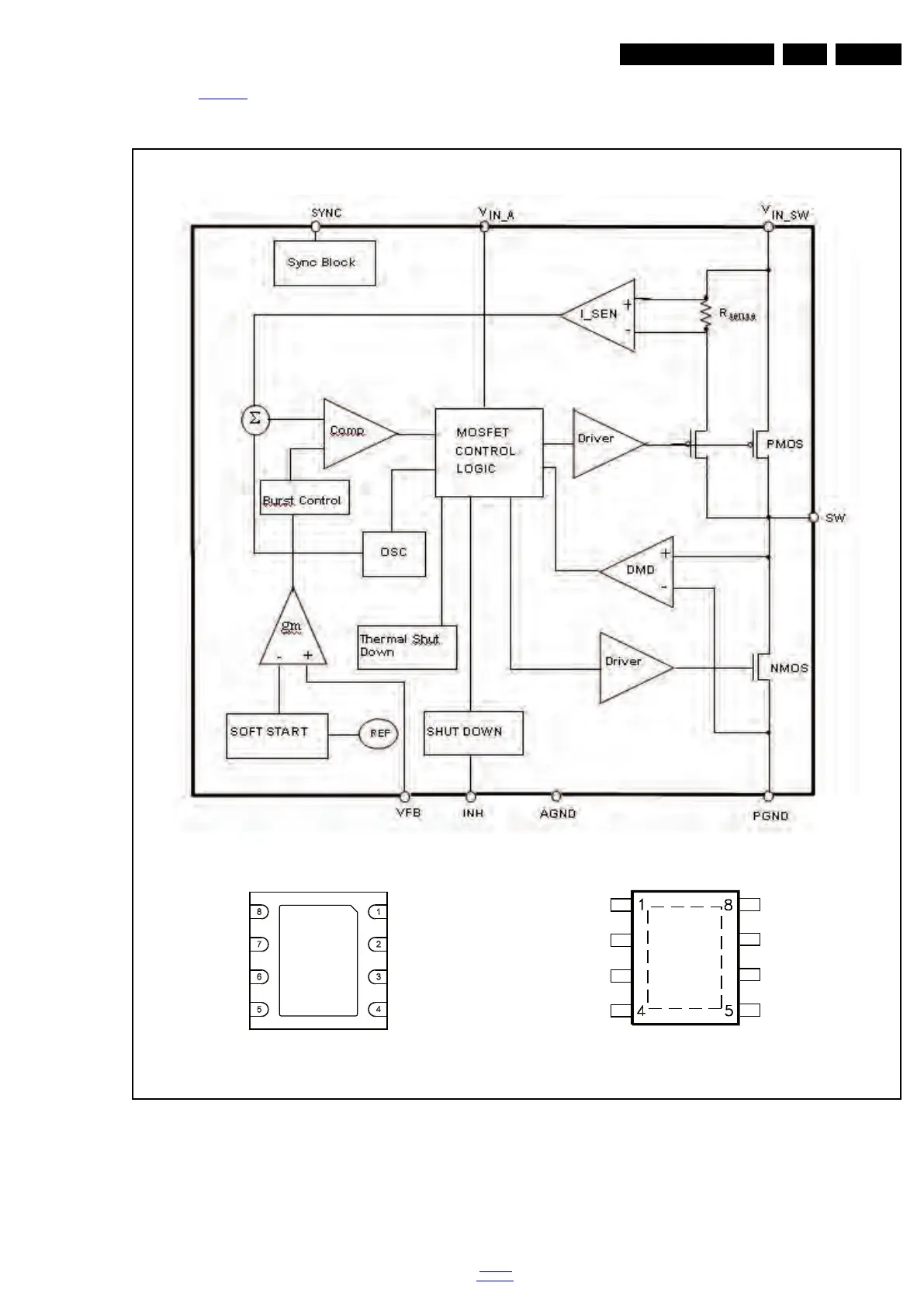

8.6 Diagram DC/DC B03E, ST1S10PH (IC 7UD0)
Figure 8-6 Internal block diagram and pin configuration
I_18010_083.eps
110601
Block diagram
Pinning information
PowerSO-8
DFN8 (4 × 4)
ST1S10PH
