5.3.5 Step 2: Use of function blocks from the function block
library
– Selecting a function block from the function block library and inserting it in the
worksheet
– Wiring/connecting the inputs and outputs of function blocks
– Linking onboard variables using a function block
• Click on the desired position in the worksheet to set a cursor.
• In the edit wizard, select the “AND” function block by double-clicking on it.

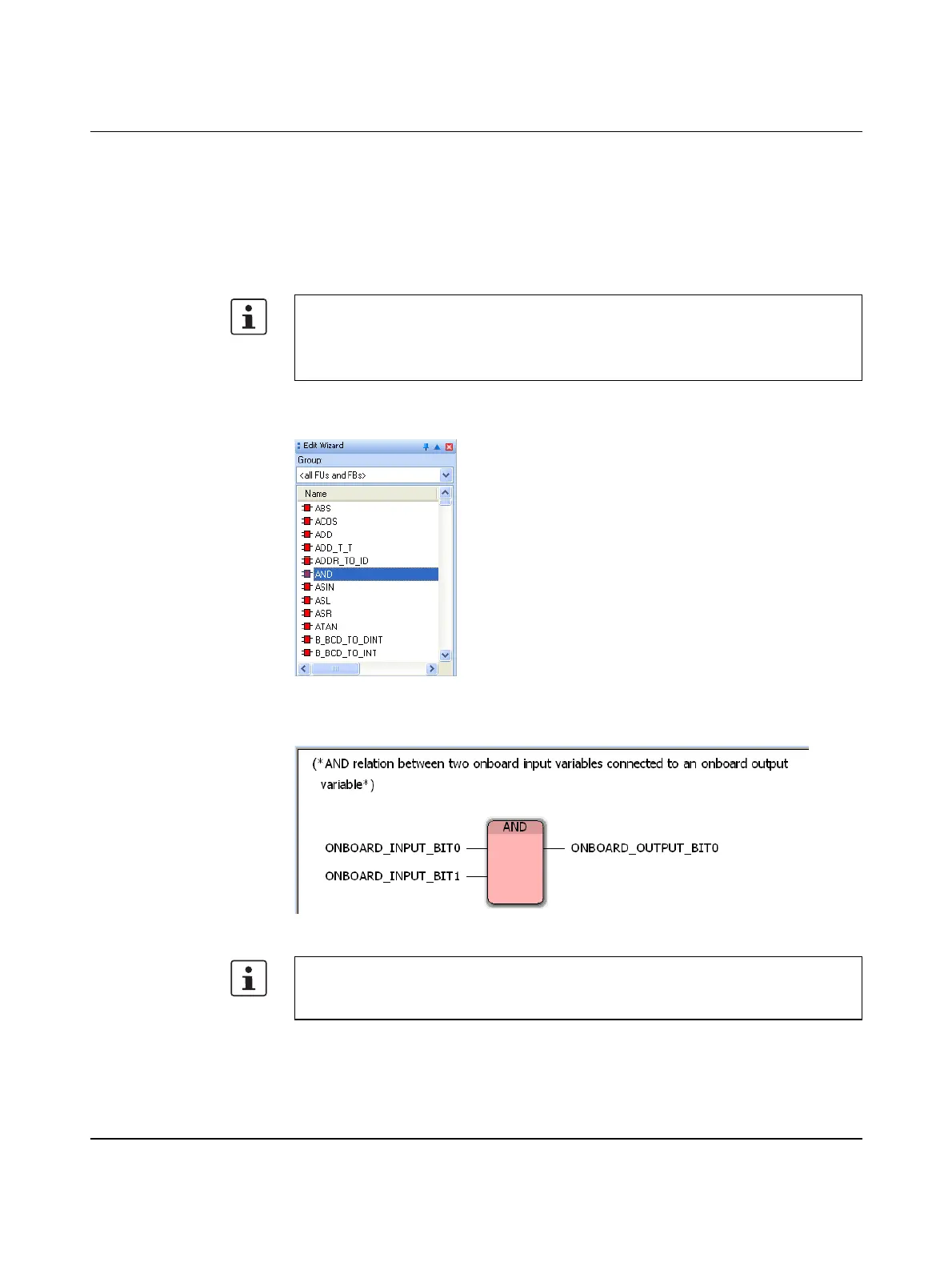

Figure 5-37 Function block in the edit wizard
The function block is inserted in the worksheet at the cursor position.
Figure 5-38 ANDing
Delete the worksheet before entering the following program code.
To do this, click in one corner of the worksheet. Holding down the mouse button, select
the elements to be deleted by dragging the mouse pointer over these elements. Select the
“Edit, Delete” menu item to delete the selected elements.
If you know the name of the desired function block, another option is to enter the function
block name directly using your PC keyboard once you have positioned the cursor in the
worksheet.
