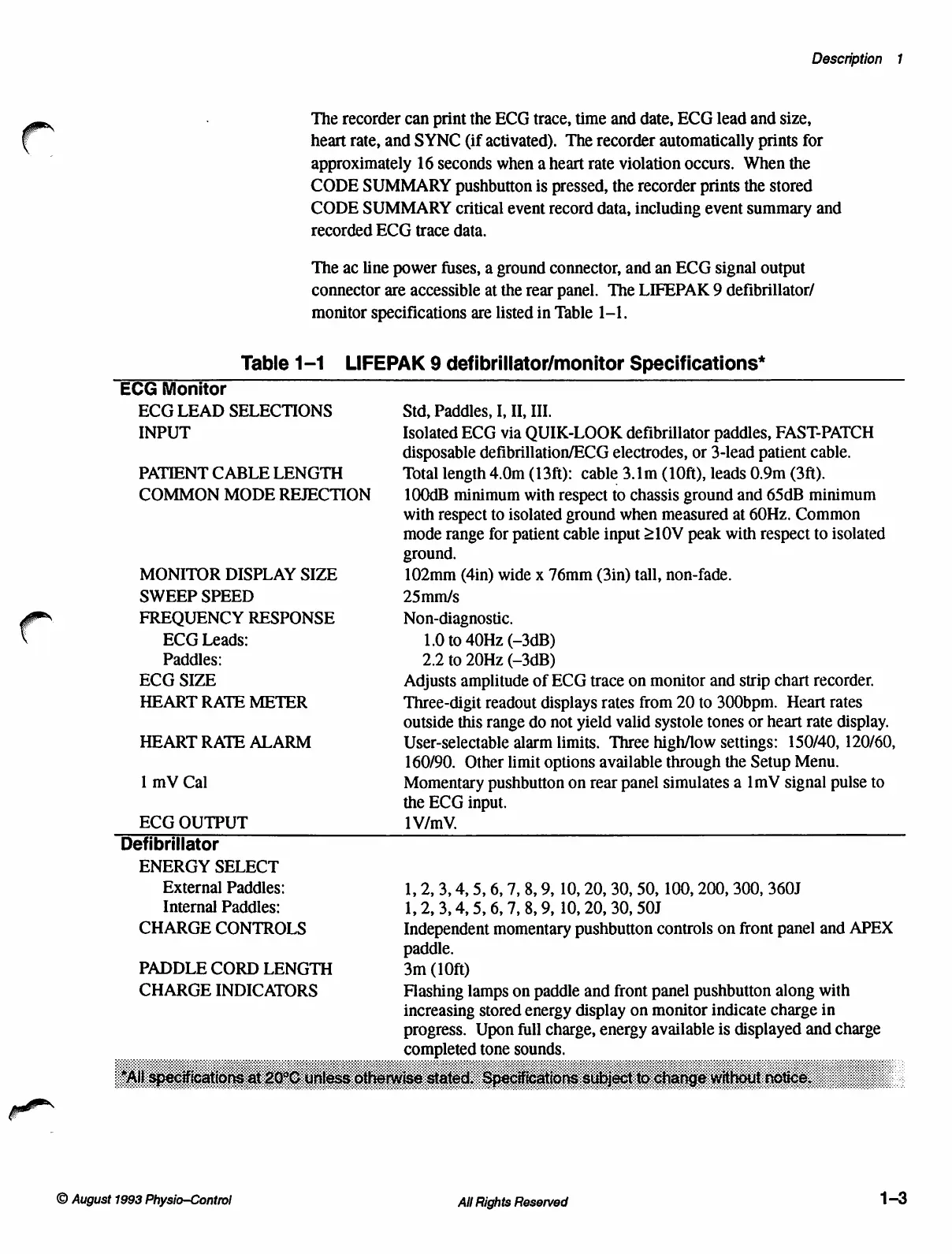

Description 1
The recorder can print the ECG trace, time and date, ECG lead and size,
heart rate, and SYNC (if activated). The recorder automatically prints for
approximately 16 seconds when a heart rate violation occurs. When the
CODE SUMMARY pushbutton is pressed, the recorder prints the stored
CODE SUMMARY critical event record data, including event summary and
recorded ECG trace data.
The ac line power fuses, a ground connector, and an ECG signal output
connector are accessible at the rear panel. The LIFEPAK 9 defibrillator/
monitor specifications are listed in Table 1-1.
Table 1-1 LIFEPAK 9 defibrillator/monitor Specifications*
ECG Monitor
ECG LEAD SELECTIONS Std, Paddles, I, II, ITI.
INPUT Isolated ECG via QUIK-LOOK defibrillator paddles, FAST-PATCH
disposable defibrillation/ECG electrodes, or 3-lead patient cable.
PATIENT CABLE LENGTH Total length 4.0m (13ft): cable 3.1m (10ft), leads 0.9m (3ft).
COMMON MODE REJECTION 100dB minimum with respect to chassis ground and 65dB minimum
with respect to isolated ground when measured at 60Hz. Common
mode range for patient cable input 210V peak with respect to isolated
ground.
MONITOR DISPLAY SIZE 102mm (4in) wide x 76mm (3in) tall, non-fade.
SWEEP SPEED 25mm/s
FREOUENCY RESPONSE Non-diagnostic.
ECG Leads: 1.0 to 40Hz (-3dB)
Paddles: 2.2 to 20Hz (-3dB)
ECG SIZE Adjusts amplitude of ECG trace on monitor and strip chart recorder.
HEART RATE METER Three-digit readout displays rates from 20 to 300bpm. Heart rates
outside this range do not yield valid systole tones or heart rate display.
HEART RATE ALARM User-selectable alarm limits. Three high/low settings: 150/40, 120/60,
160/90. Other limit options available through the Setup Menu.
1 mV Cal Momentary pushbutton on rear panel simulates a 1mV signal pulse to
the ECG input.
ECG OUTPUT 1V/mV.
Defibrillator
ENERGY SELECT
External Paddles: 1, 2, 3, 4, S, 6, 7, 8, 9, 10, 20, 30, 50, 100, 200, 300, 360J
Internal Paddles: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 20, 30, SOJ
CHARGE CONTROLS Independent momentary pushbutton controls on front panel and APEX
paddle.
PADDLE CORD LENGTH 3m (10ft)
CHARGE INDICATORS Flashing lamps on paddle and front panel pushbutton along with
increasing stored energy display on monitor indicate charge in
progress. Upon full charge, energy available is displayed and charge
completed tone sounds
© August 1993 Physio—Control
All Rights Reserved 1-3
