LIFEPAK 9 defibrillator/monitor

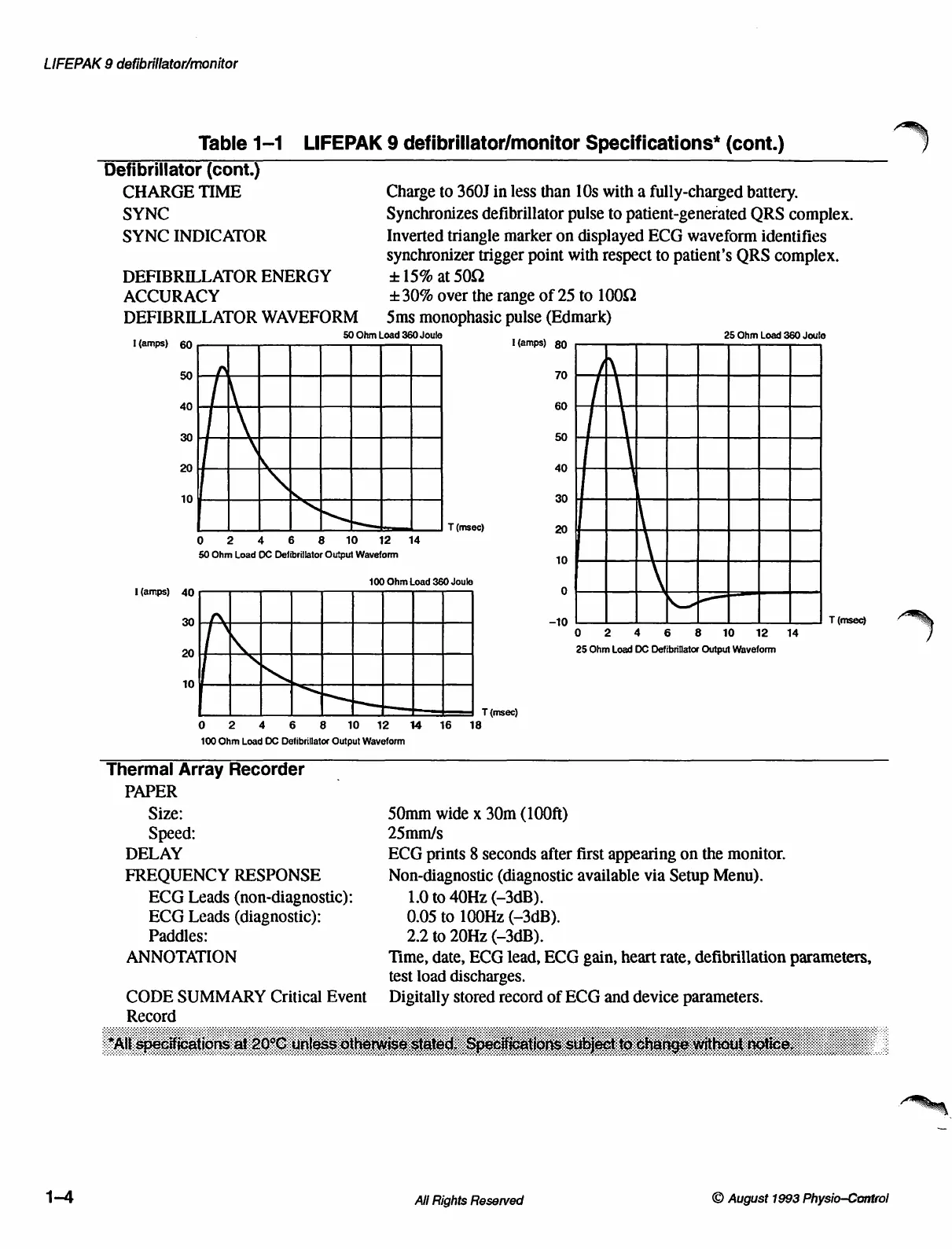

Table 1-1 LIFEPAK 9 defibrillator/monitor Specifications* (cont.)
Defibrillator (cont.)
CHARGE TIME Charge to 360J in less than 10s with a fully-charged battery.
SYNC Synchronizes defibrillator pulse to patient-generated QRS complex.
SYNC INDICATOR Inverted triangle marker on displayed ECG waveform identifies
synchronizer trigger point with respect to patient’s QRS complex.
DEFIBRILLATOR ENERGY + 15% at 500
ACCURACY +30% over the range of 25 to 1000
DEFIBRILLATOR WAVEFORM — Sms monophasic pulse (Edmark)
50 Ohm Load 360 Joule 25 Ohm Load 360 Joule
1(amps) 60 L(amps) 80
50 70
40 | \ 60
30 50
\
20 < 40
10 NM 30
NT
T (msec) 20
0 2 4 6 8 10 12 14
50 Ohm Load OC Defibrillator Output Waveform 10
100 Ohm Load 360 Joule
I (amps) 0
-10 T (msec)
0 2 4 6 8 10 12 14
25 Ohm Load DC Defibrillator Output Waveform
T (msec)
0 2 4 6 8 10 12 14 16 18
100 Ohm Load OC Defibrillator Output Waveform
Thermal Array Recorder
PAPER
Size: 50mm wide x 30m (100ft)
Speed: 25mm/s
DELAY ECG prints 8 seconds after first appearing on the monitor.
FREQUENCY RESPONSE Non-diagnostic (diagnostic available via Setup Menu).
ECG Leads (non-diagnostic): 1.0 to 40Hz (-3dB).
ECG Leads (diagnostic): 0.05 to 100Hz (-3dB).
Paddles: 2.2 to 20Hz (-3dB).
ANNOTATION Time, date, ECG lead, ECG gain, heart rate, defibrillation parameters,
test load discharges.
CODE SUMMARY Critical Event Digitally stored record of ECG and device parameters.
Record
