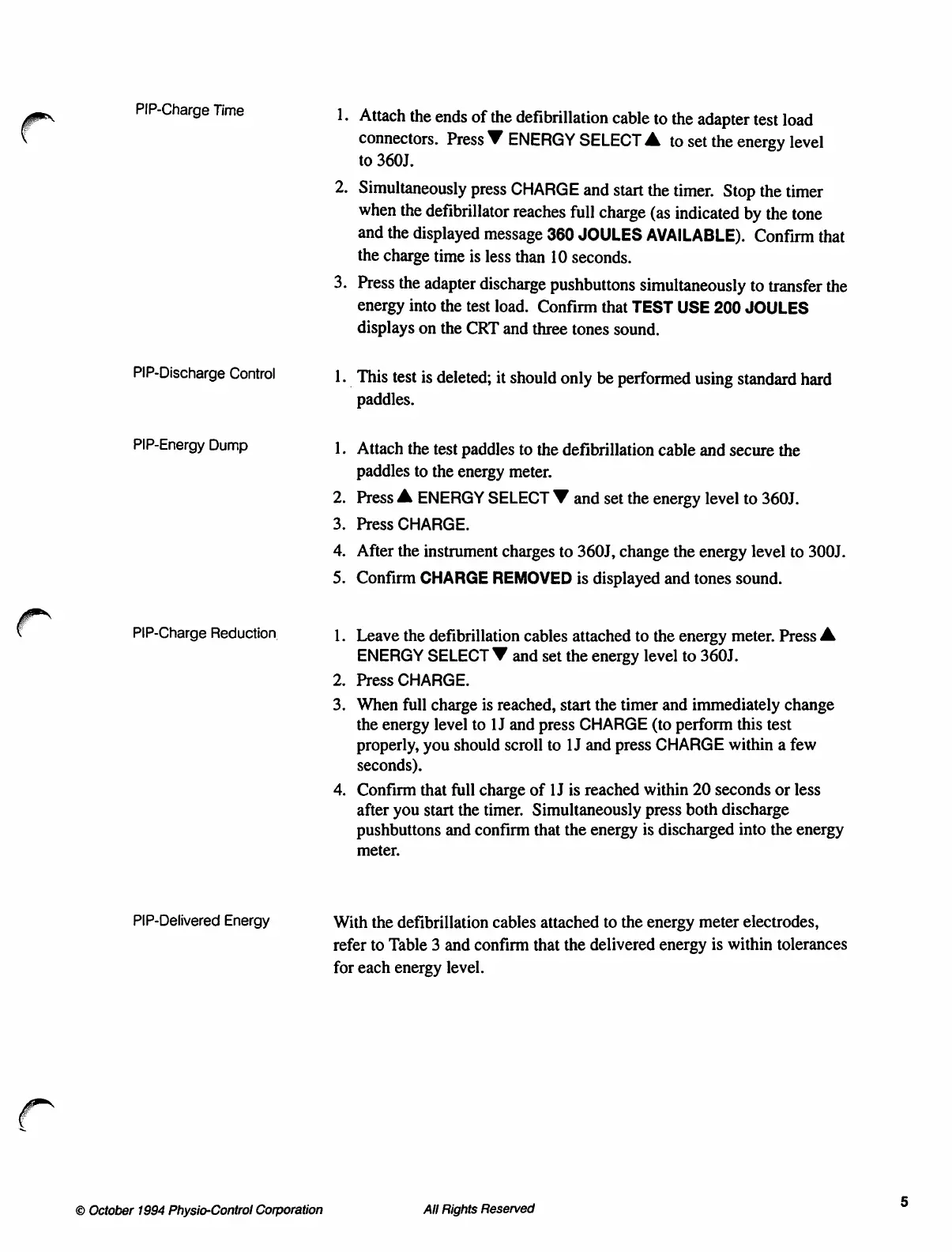

PIP-Charge
Time
1.
Attach
the
ends
of
the
defibrillation
cable
to
the
adapter
test
load
connectors.
Press
W
ENERGY
SELECT
A
to
set
the
energy
level
to
360J.
2.
Simultaneously
press
CHARGE
and
start
the
timer.
Stop
the
timer
when
the
defibrillator
reaches
full
charge
(as
indicated
by
the
tone
and
the
displayed
message
360
JOULES
AVAILABLE).
Confirm
that
the
charge
time
is
less
than
10
seconds.
3.
Press
the
adapter
discharge
pushbuttons
simultaneously
to
transfer
the
energy
into
the
test
load.
Confirm
that
TEST
USE
200
JOULES
displays
on
the
CRT
and
three
tones
sound.
PIP-Discharge
Control
1.
This
test
is
deleted;
it
should
only
be
performed
using
standard
hard
paddles.
PIP-Energy
Dump
1.
Attach
the
test
paddles
to
the
defibrillation
cable
and
secure
the
paddles to the energy meter.
Press 4 ENERGY SELECT W and set the energy level to 360).
Press CHARGE.
After the instrument charges to 360J, change the energy level to 300J.
Confirm CHARGE REMOVED is displayed and tones sound.
“PF
YN
PIP-Charge Reduction 1. Leave the defibrillation cables attached to the energy meter. Press À
ENERGY SELECT W and set the energy level to 3601.
2. Press CHARGE.
3. When full charge is reached, start the timer and immediately change
the energy level to 1J and press CHARGE (to perform this test
properly, you should scroll to 1J and press CHARGE within a few
seconds).
4. Confirm that full charge of 1J is reached within 20 seconds or less
after you start the timer. Simultaneously press both discharge
pushbuttons and confirm that the energy is discharged into the energy
meter.
PIP-Delivered Energy With the defibrillation cables attached to the energy meter electrodes,
refer to Table 3 and confirm that the delivered energy is within tolerances
for each energy level.
