Physio Control LIFEPAK 9 - Page 209

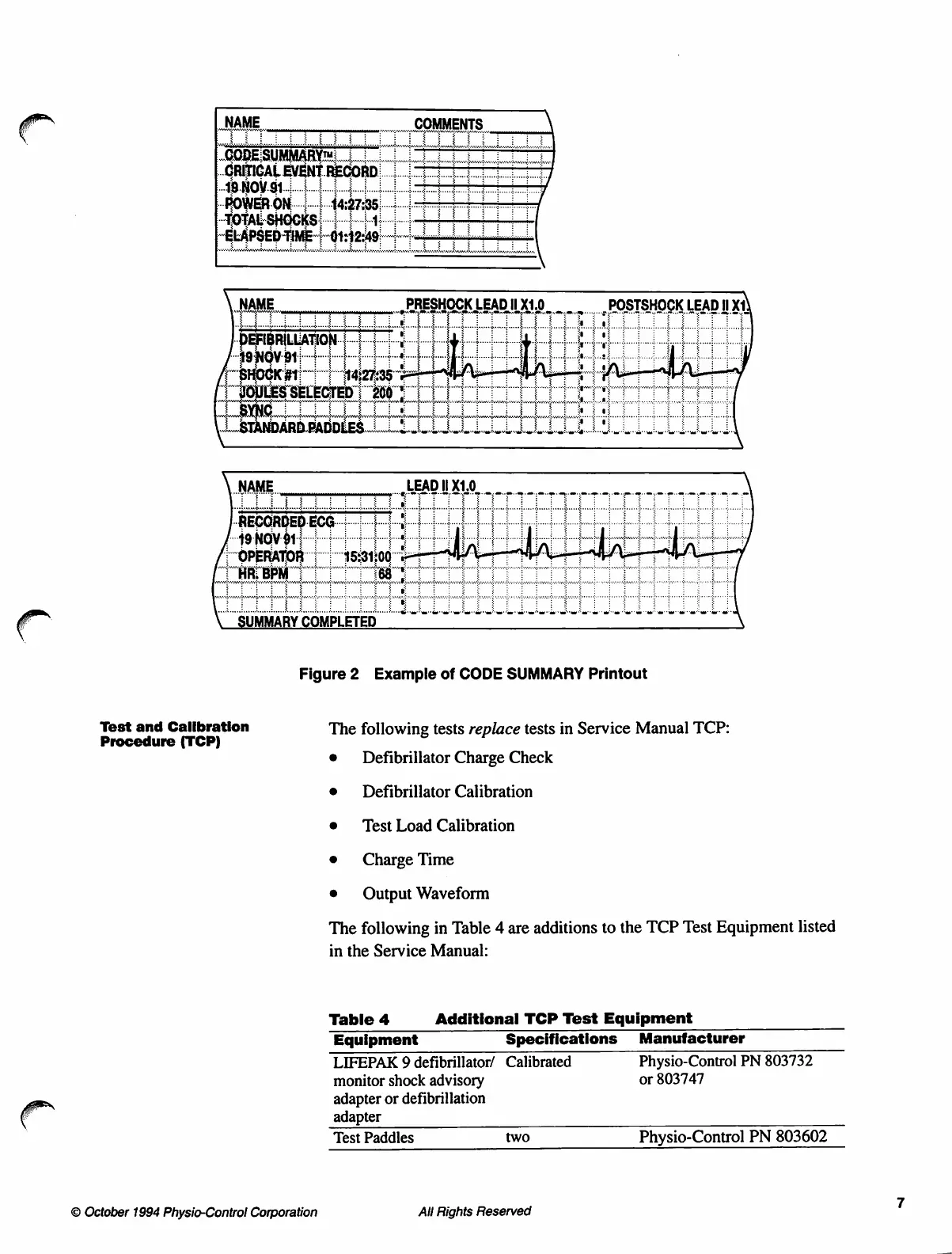

Figure 2 Example of CODE SUMMARY Printout
Test and Calibration
Procedure (TCP)
O October 1994 Physio-Contro! Corporation
The following tests replace tests in Service Manual TCP:
e Defibrillator Charge Check
e Defibrillator Calibration
e Test Load Calibration
e Charge Time
e Output Waveform
The following in Table 4 are additions to the TCP Test Equipment listed
in the Service Manual:
Table 4 Additional TCP Test Equipment
Equipment Specifications Manufacturer
LIFEPAK 9 defibrillator/ Calibrated Physio-Control PN 803732
monitor shock advisory or 803747
adapter or defibrillation
adapter
Test Paddles two Physio-Control PN 803602
All Rights Reserved
