PIAGGIO Beverly Tourer 300 i.e. - Removing the Cam Shaft; Removing the Cylinder Head

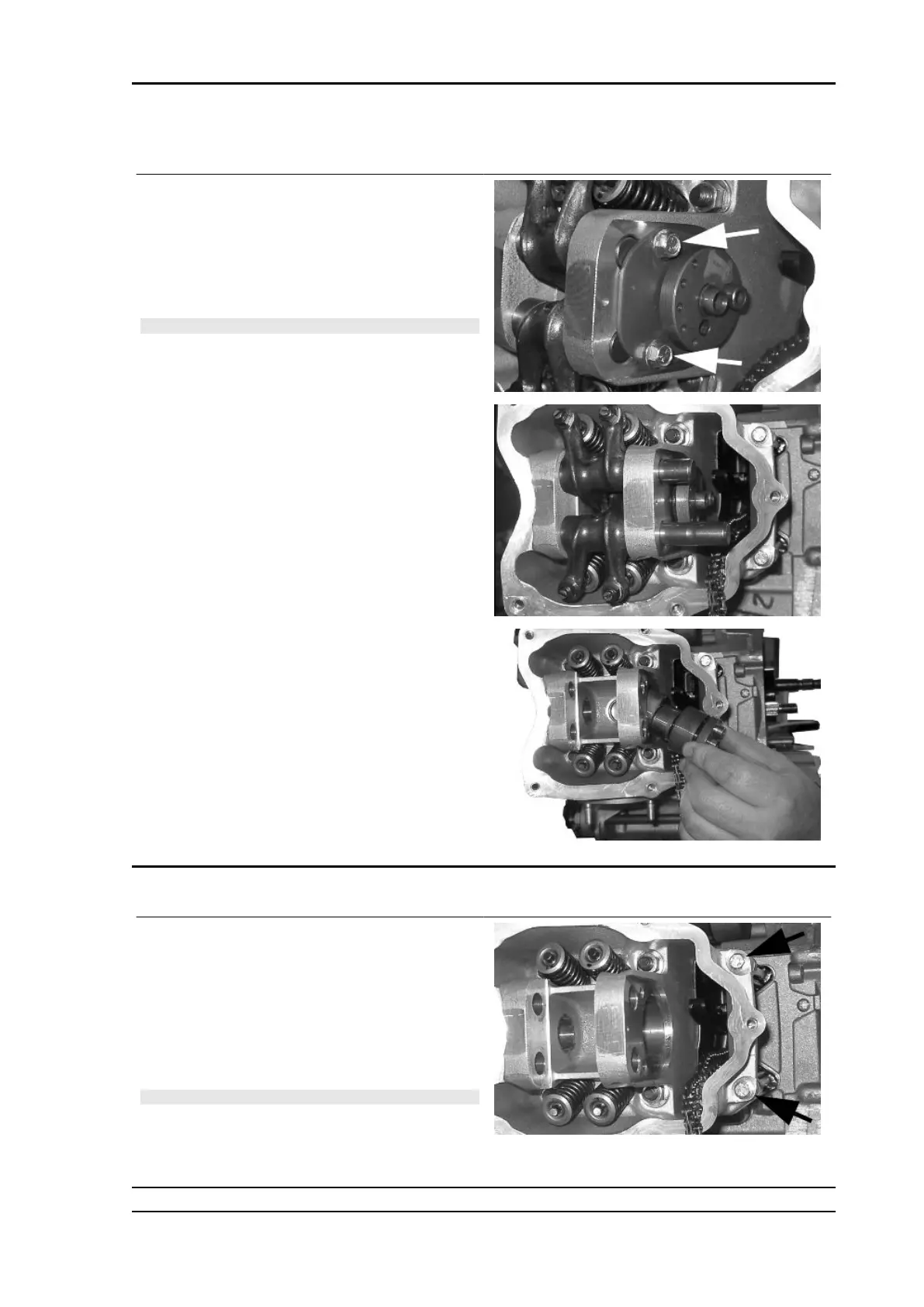

Removing the cam shaft
- Remove the 2 screws and the camshaft retainer
shown in the diagram.
- Remove the camshaft.
- Remove the pins and the rocking levers from the
flywheel side holes.
N.B.
IF NEEDED, THE HEAD MAY BE REMOVED WITH THE
CAMSHAFT, ROCKER PINS AND FIXING BRACKET. THE
HEAD CAN ALSO BE REMOVED WITHOUT REMOVING
THE CHAIN AND THE CRANKSHAFT CHAIN TENSIONER.
Removing the cylinder head
- Remove the spark plug.
- Remove the 2 side fixings shown in the figure.
- Loosen the 4 head-cylinder fastening nuts in two
or three stages and in criss-cross fashion.
- Remove the head, the two alignment dowels and
the gasket.
N.B.
IF NEEDED, THE HEAD MAY BE REMOVED WITH THE
CAMSHAFT, ROCKER PINS AND FIXING BRACKET. THE
HEAD CAN ALSO BE REMOVED WITHOUT REMOVING
THE CHAIN AND THE CRANKSHAFT CHAIN TENSIONER.
