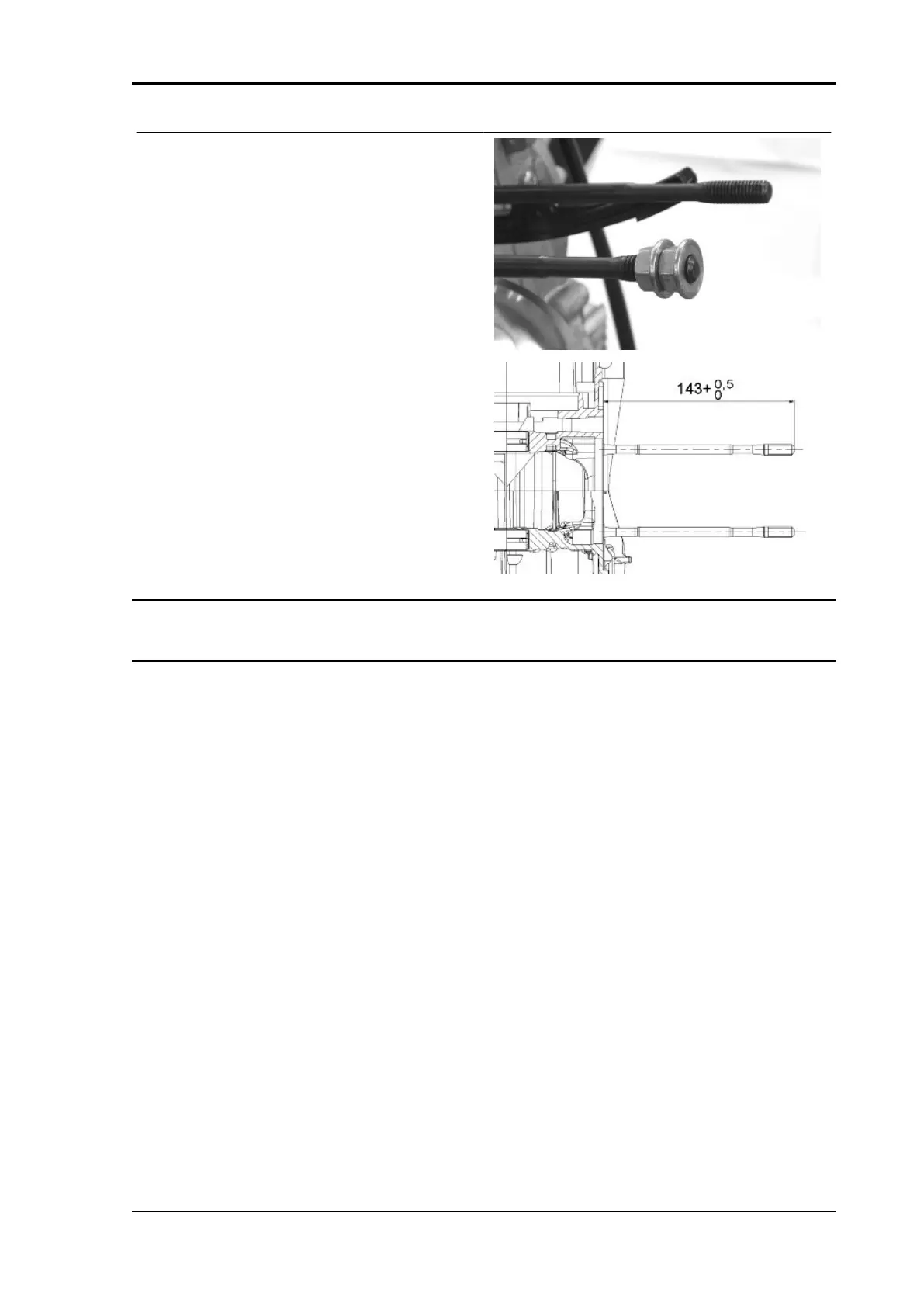

By working on two fitted cylinder head fixing nuts,
nut and lock nut, as shown in the picture, remove
the stud bolt from its seat.
Clean the threaded seat on the carter thoroughly.
Refit a new stud bolt and apply the special product
on the threading crankcase side.
Tighten up to the depth of the driving indicated.
Recommended products
Loctite Quick Set Loctite 270 high strength
threadlock
Loctite 270 high strength threadlock
Lubrication
Conceptual diagrams
LUBRICATION CIRCUIT
Beverly Tourer 300 i.e. Engine
ENG - 161
