PIAGGIO Beverly Tourer 300 i.e. - Wiring Diagrams and Schematics

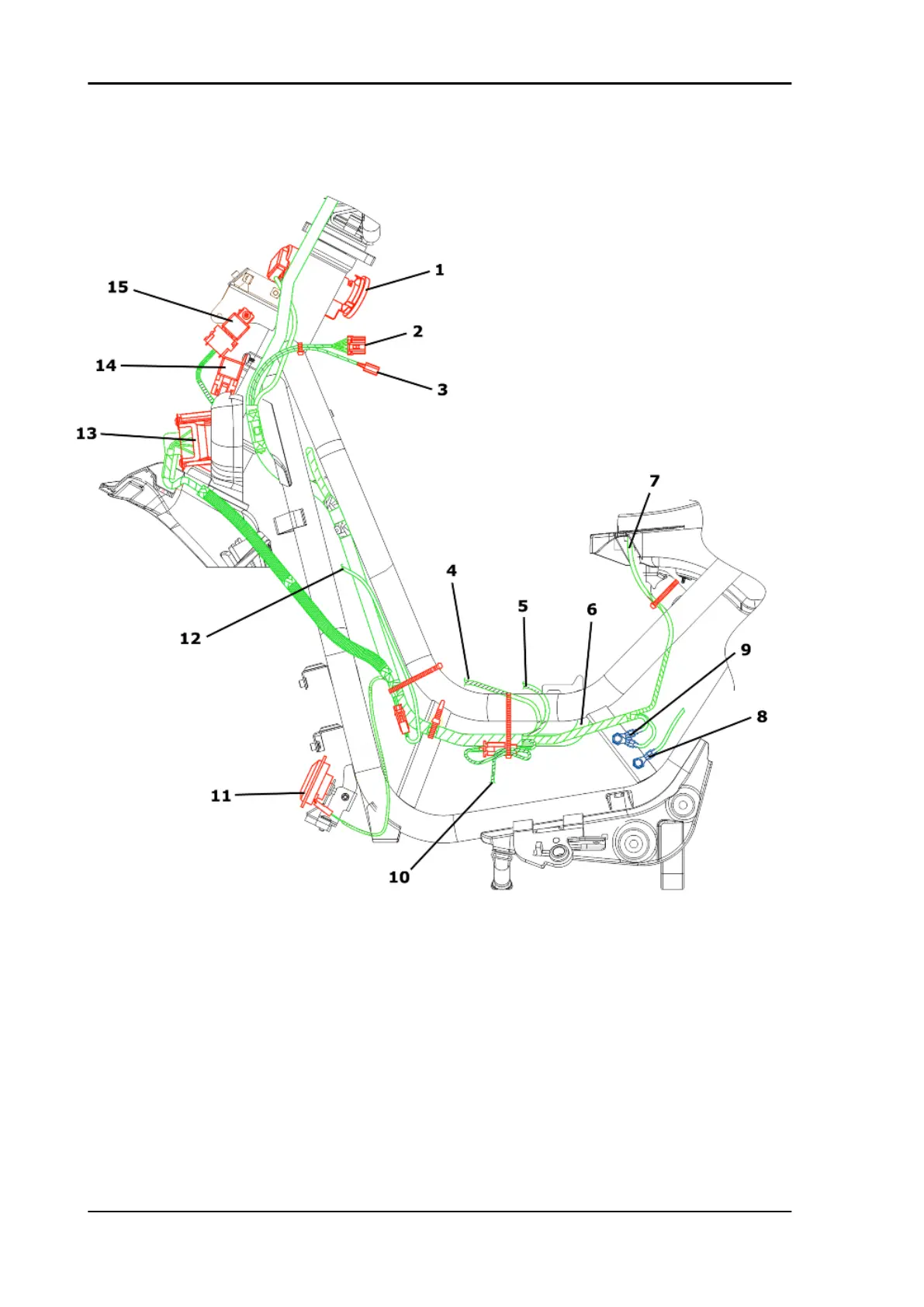

Front side
1. Immobilizer aerial
2. Pre-installation for anti-theft ECU
3. Saddle opening switch
4. To fuel gauge
5. To fuel pump
6. Towards right fairing
7. To helmet compartment light switch
8. Engine ground lead
9. Ground lead clamping to chassis
10.To stand switch
Electrical system Beverly Tourer 300 i.e.
ELE SYS - 72
