Coolant temperature sensor

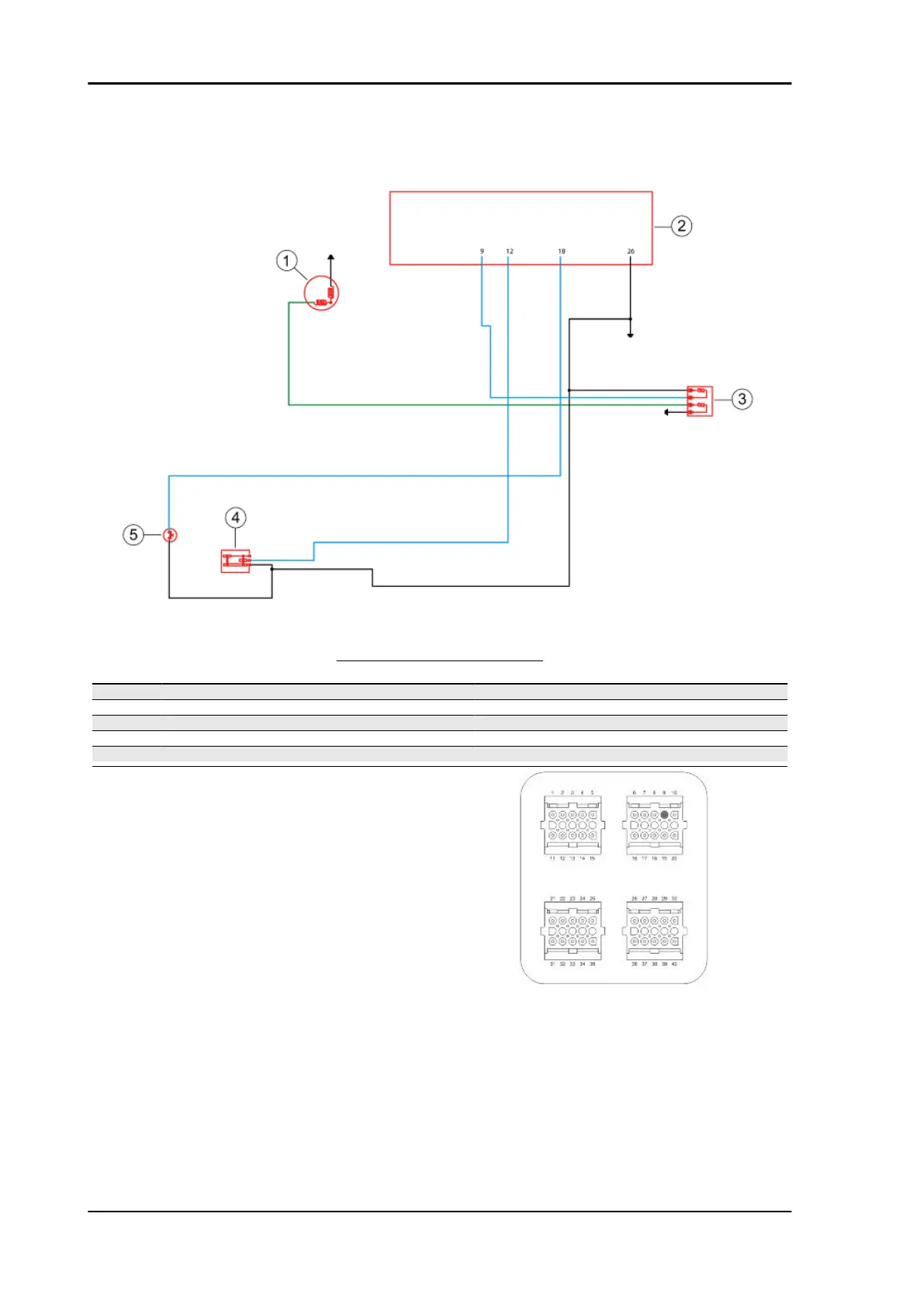

TEMPERATURE SENSOR
Specification
Desc./Quantity
1 Instrument panel
2 Electronic control unit
3 Water temperature sensor
4 Engine stop switch
5 Side stand switch
With the connector on the control unit side discon-
nected and the coolant temperature sensor con-
nector connected, check that the resistance val-
ues between pin 9 and the ground lead correspond
with the engine temperature.
20° = 2500 ± 100 Ω
80° = 308 ± 6 Ω
With the connector on the control unit side discon-
nected and the coolant temperature connector dis-
connected, check the insulation between the light-
blue/green cable and ground lead.
Injection Beverly Tourer 300 i.e.
INJEC - 202
