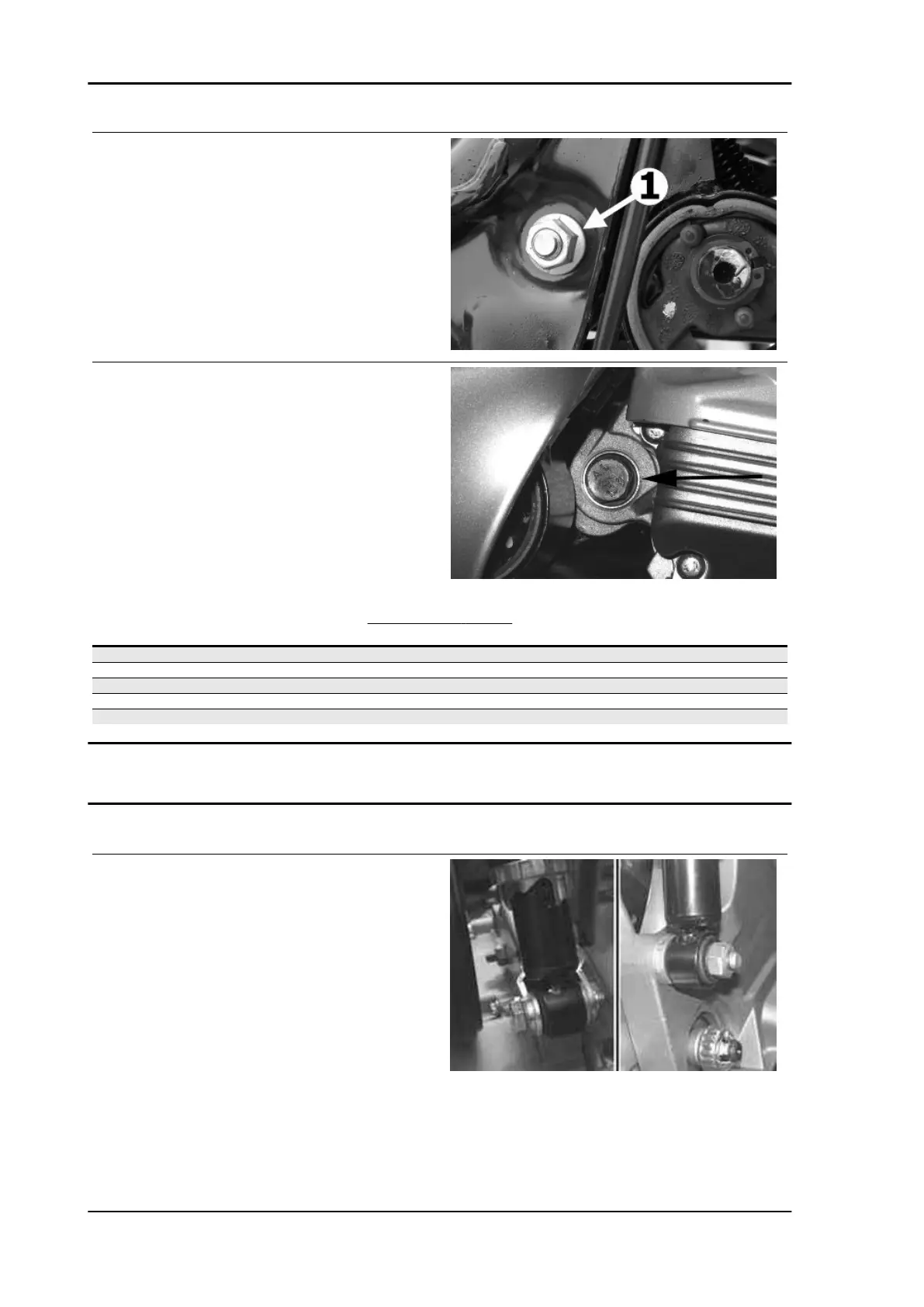

- Tighten part «1» to the prescribed torque.
- Insert the swinging arm - engine pin and tighten
to the prescribed torque.
SWINGING ARM FITTING
Name
Torque in Nm
Part 1 64 - 72
Part 3 5 - 7
Part 4 90 - 110
Part 5 50 ÷ 55
Engine-swinging arm pin 55 ÷ 61
Shock absorbers
Removal
Proceed as follows:
- place the vehicle on its centre stand;
- lift the engine a little with a jack so as to free the
two shock absorbers;
- remove the silencer
- undo the shock absorber spring assembly clamp-
ing screw from the support fixed to the engine on
the one side and from that fixed to the silencer on
the other;
- unscrew the two upper nuts (one on each side)
fixing the shock absorber spring assembly to the
frame and remove the shock absorbers.
Suspensions Beverly Tourer 300 i.e.
SUSP - 236
