The three-phase alternator provides good recharge power and at low revs a good compromise is ach-
ieved between generated power and idle stability.
Remote controls check

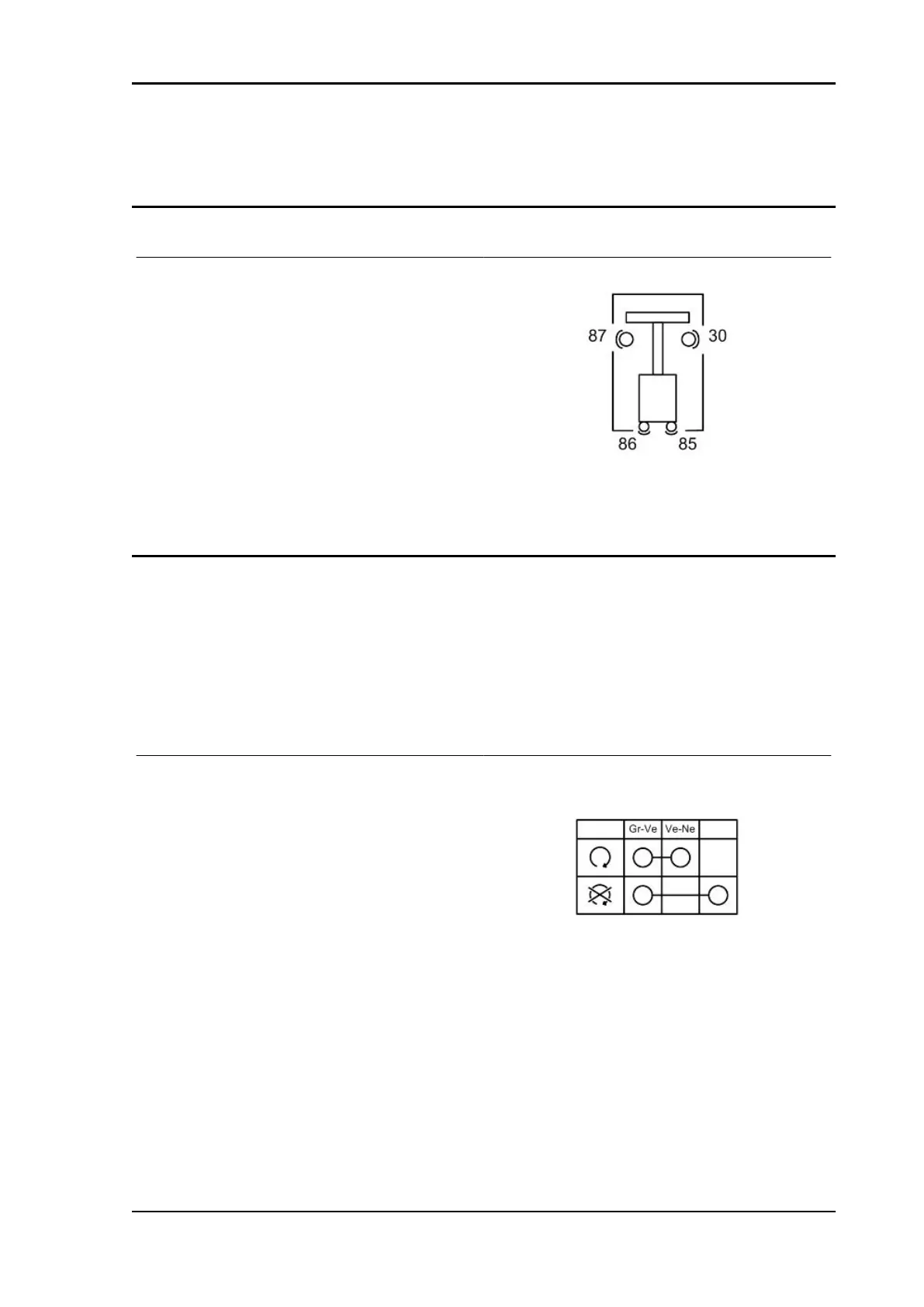

To check the operation of a solenoid:
1) Check that, given regular conditions, there is no
continuity between terminals 87 and 30.
2) Apply a 12V voltage to power terminals 86 and
85 of the solenoid.
3) With the solenoid fed, check that there is con-
tinuity between terminals 87 and 30.
4) If these conditions are not met, the solenoid is
surely damaged and, therefore, it should be re-
placed.
Switches check
To check buttons and switches, check that, according to their position, the continuity of contacts is
correct as indicated in the following charts.
KEY
Or: Orange SB: Sky Blue Wh: White Bl: Blue Y: Yellow Gr: Grey Br: Brown B: Black Pi: Pink R: Red
Gre: Green Pr: Purple
ENGINE STOP SWITCH
Beverly Tourer 300 i.e. Electrical system
ELE SYS - 89
