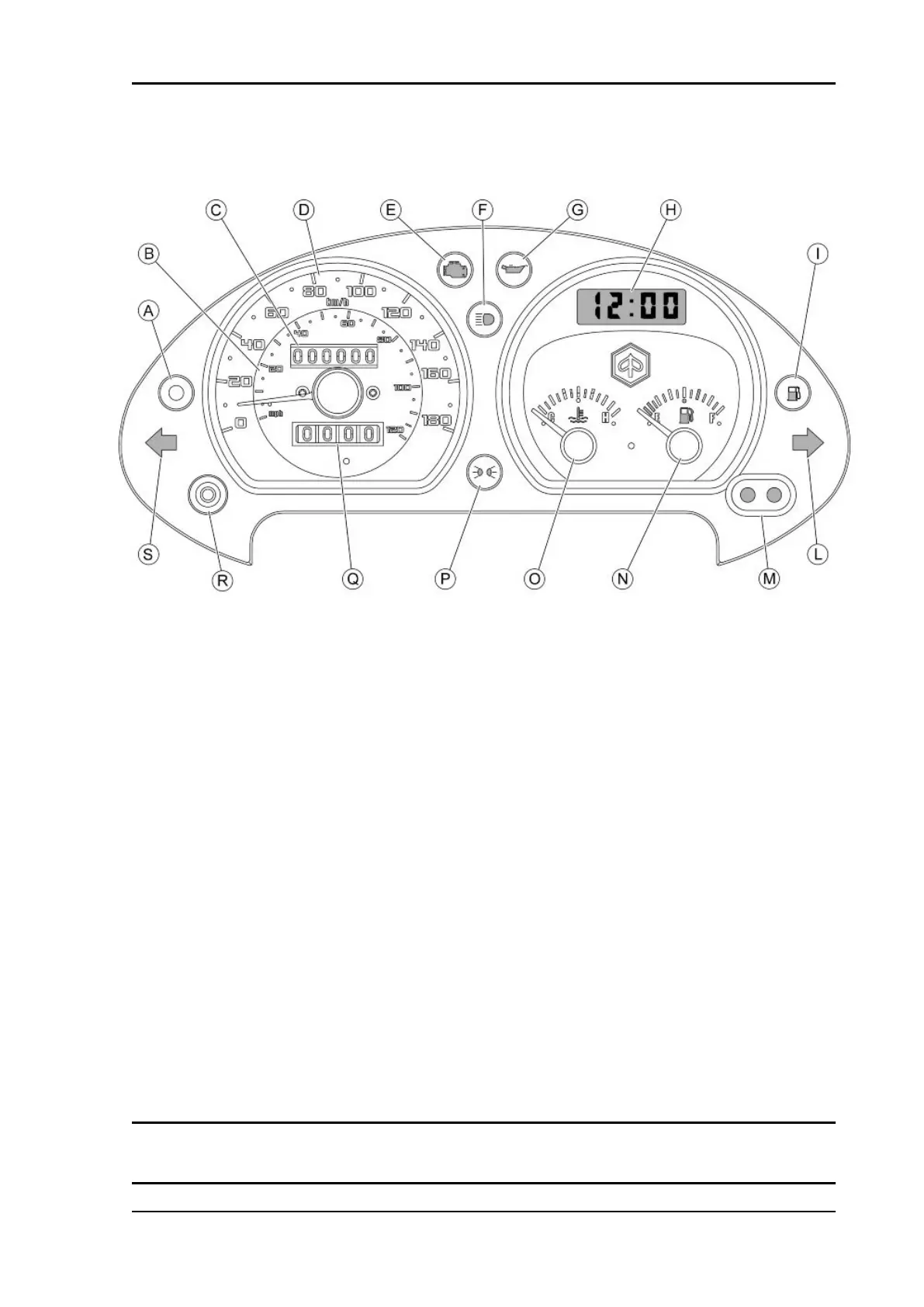

Instrument panel
A = Immobilizer LED
B = Speedometer (mph)
C = Total Odometer
D = Speedometer (km/h)
E = Injection telltale light
F = High-beam warning light
G = Oil pressure warning light
H = Digital clock
I = Low fuel warning light
L = Right turn indicator warning light
M = Clock controls
N = Fuel gauge
O = Water temperature gauge
P = Headlight warning light
Q = Trip odometer
R = Odometer reset button
S = Left turn indicator warning light
