PIAGGIO X9 Evolution 125 2008 - Cam Shaft and Cylinder Head Removal

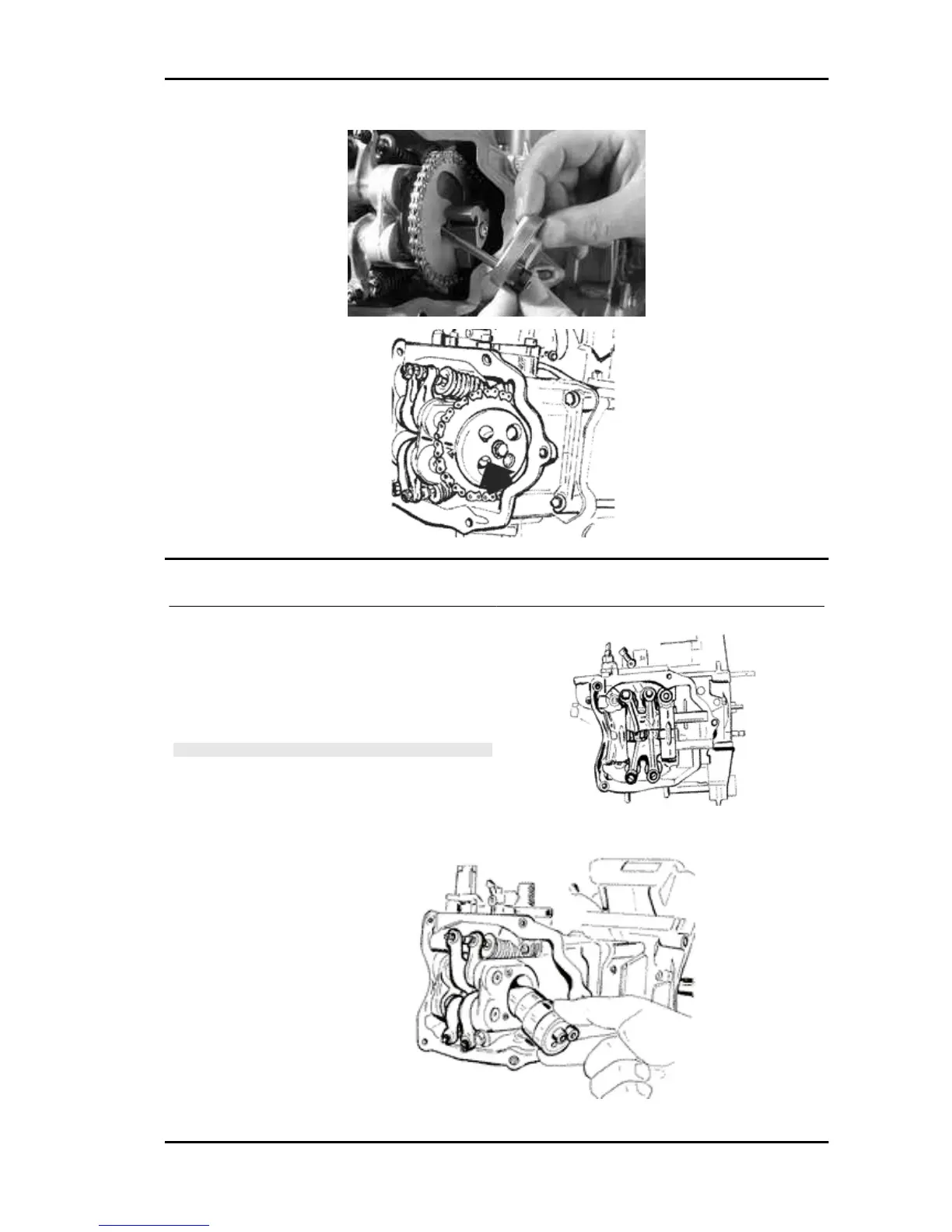

Removing the cam shaft
- Remove the 2 screws and the camshaft retainer
shown in the diagram.
- Remove the camshaft.
- Remove the pins and the rocking levers from the
flywheel side holes.
N.B.
IN NEEDED, THE HEAD MAY BE REMOVED WITH THE
CAMSHAFT, ROCKING LEVER PINS AND FIXING BRACK-
ET. THE HEAD CAN ALSO BE REMOVED WITHOUT RE-
MOVING THE CHAIN AND THE DRIVING SHAFT CHAIN
TIGHTENER.
X9 Evolution 125 Engine
ENG - 115
