This section is devoted to operations that can be carried out on the suspension.
Front

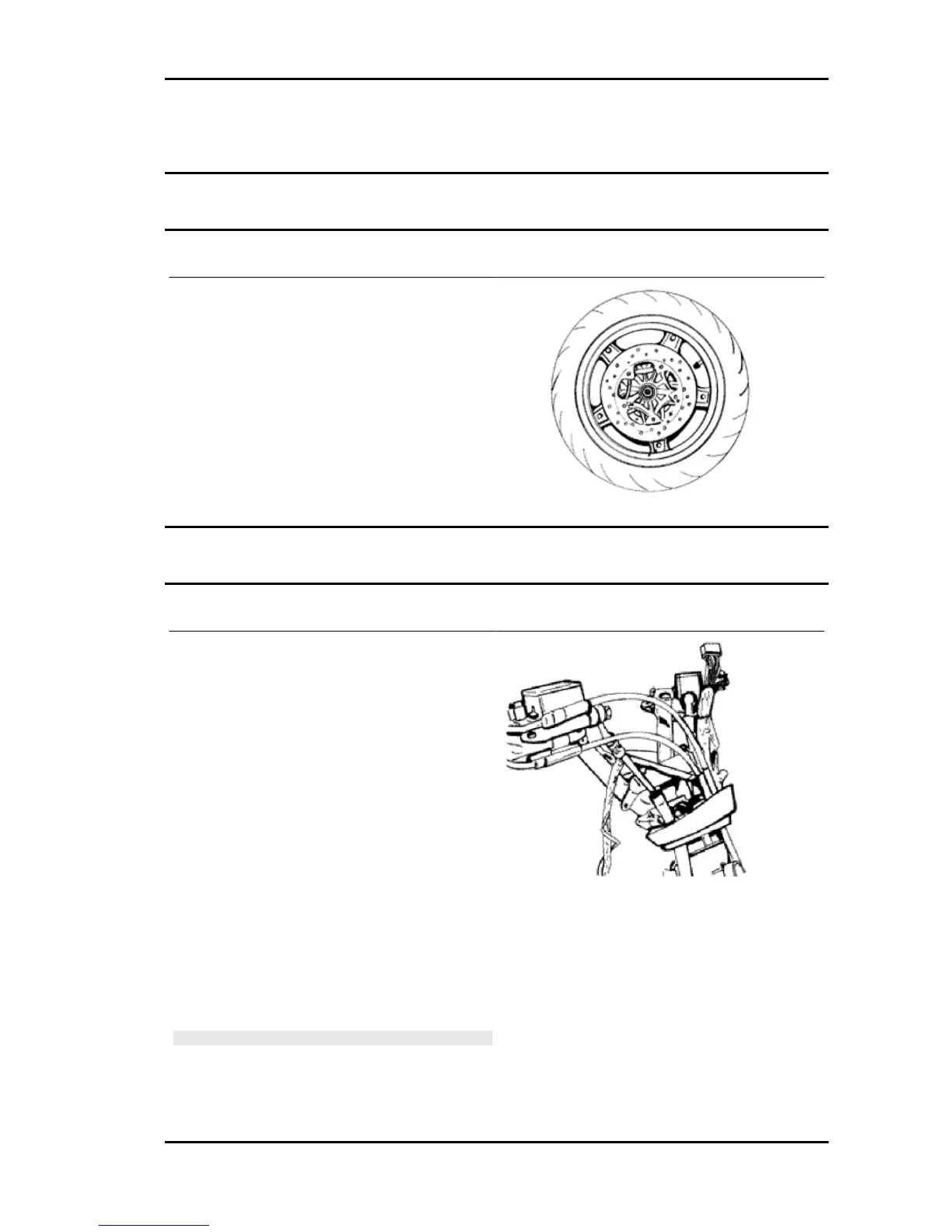

Removing the front wheel
Remove the two callipers according to what is de-
scribed in the "Braking system" chapter.
- Unscrew the wheel axle fixing nut;
- Loosen the fork-wheel axle retainer clamp by
slightly unscrewing the two screws located on the
fork
- Slide off the axle and remove the front wheel, re-
leasing the odometer gear.
Handlebar
Removal
- Remove the digital panel support, the front and
rear parts of the handlebar cover according to
"Bodywork" chapter.
- Remove the handlebar wiring retaining straps
and disconnect the electric connectors from the
brake levers.
- Remove from the handlebar the hoses of both the
front and rear brake pump and of the voltage dis-
tribution valve located on the front frame according
to the "Braking system" chapter.
- Remove the flexible transmission from the front
and rear brake lever and remove the throttle grip.
- Loosen the handlebar steering tube retaining
clamp indicated in the figure and slide off the han-
dlebar, removing the plastic support.
N.B.
IF THE HANDLEBAR IS BEING REMOVED TO REMOVE
THE STEERING, IT IS ONLY NECESSARY TO TILT THE
HANDLEBAR FORWARD ONTO THE FRONT PART OF THE
VEHICLE WITHOUT REMOVING THE PARTS FITTED SO
AS TO AVOID DAMAGING THE SHAFTS.
X9 Evolution 125 Suspensions
SUSP - 167
