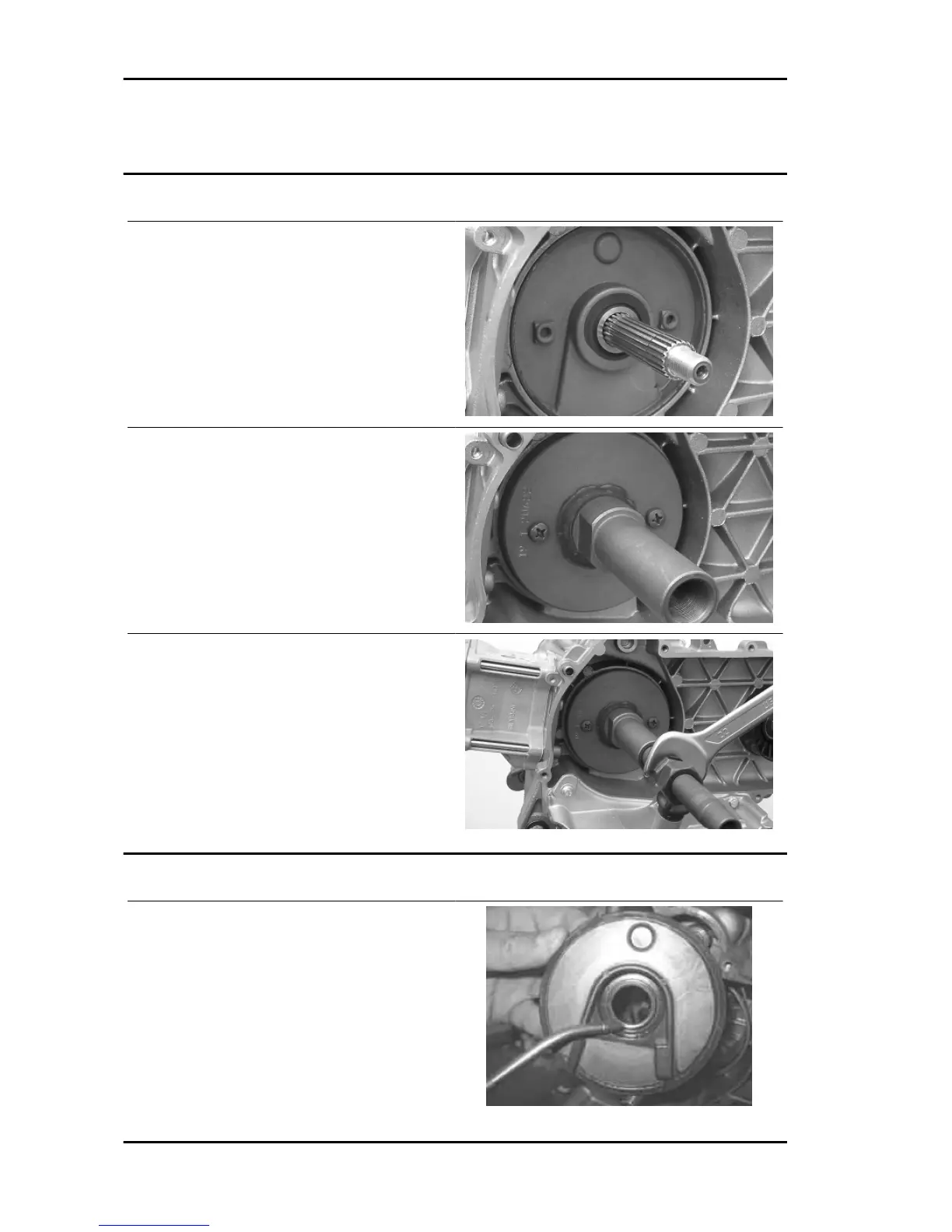

Crankshaft oil seals
Removal
- Remove the transmission cover and the com-
plete drive pulley beforehand
- Install the base of the appropriate tool on the oil
guard using the screws provided.
Specific tooling
020622Y Transmission-side oil guard punch
- Screw the threaded bar onto the base of the tool
and extract the oil guard.
Specific tooling
020622Y Transmission-side oil guard punch
Refitting
- Use a new oil seal upon refitting.
- Prepare the new oil seal, lubricating the sealing
lip.
- Preassemble the oil seal with the specific tool,
positioning the screws.
- Place the sheath over the crankshaft.
- Insert the tool with the oil seal on the crankshaft
until it comes into contact with the crankcase.
Engine X9 Evolution 125
ENG - 144
