PIAGGIO X9 Evolution 125 2008 - Rear Wheel and Swinging Arm Removal

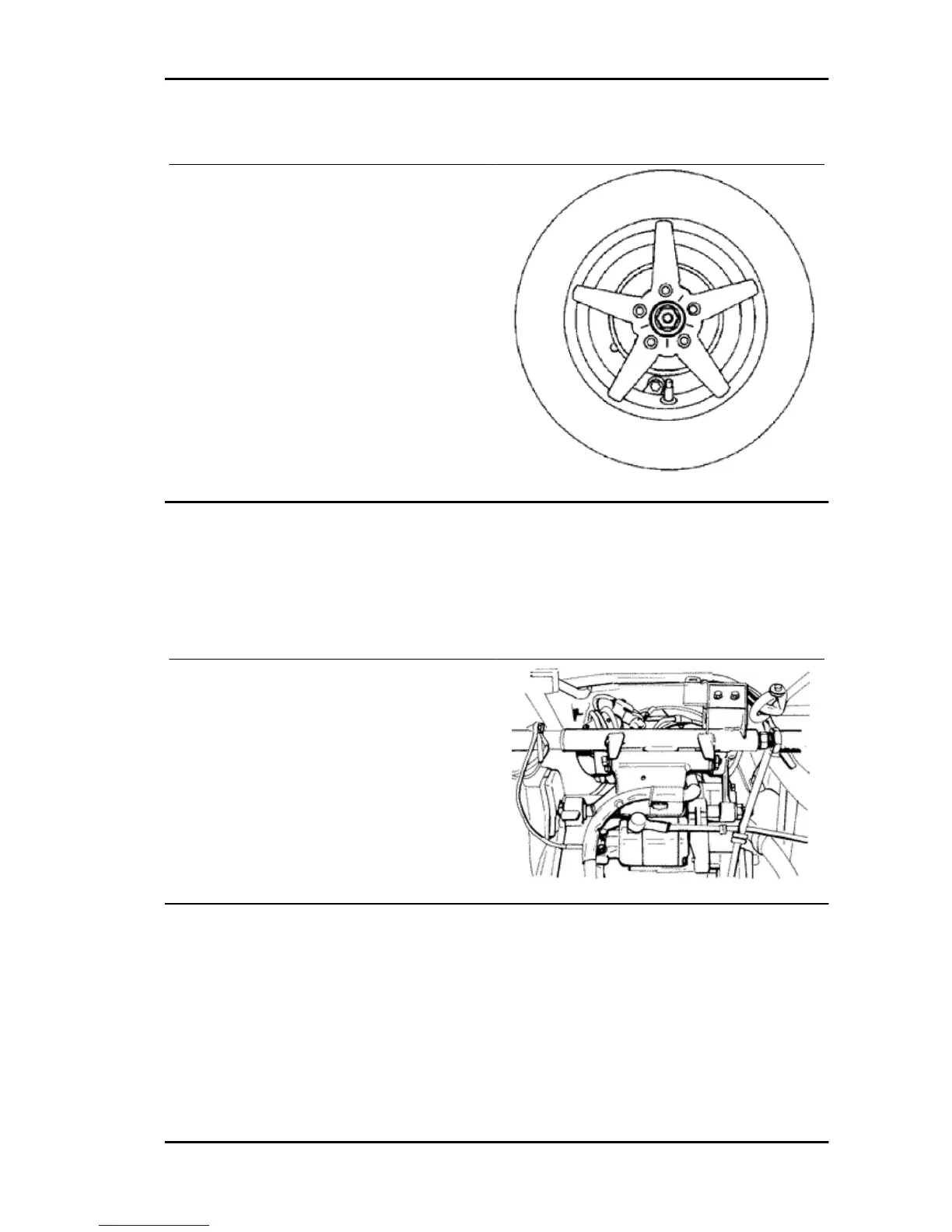

Removing the rear wheel
Removal
- Unscrew the four fixing screws and remove the
muffler and the relevant bracket;
- Unscrew the central retaining nut.
Reassembly
Carry out the previous operations in reverse order.
Locking torques (N*m)
Rear wheel axle 104 ÷ 126 Rear wheel fixing
screws 33÷37
Removal
Removal
- Remove the chassis external nut on the left side.
- Loosen the two nuts shown in the figure.
- Slide off the bolt and remove the swinging arm.
Reassembly
Carry out the previous operations in reverse order.
Locking torques (N*m)
swinging arm 8 ÷ 12 Nm
X9 Evolution 125 Suspensions
SUSP - 173
