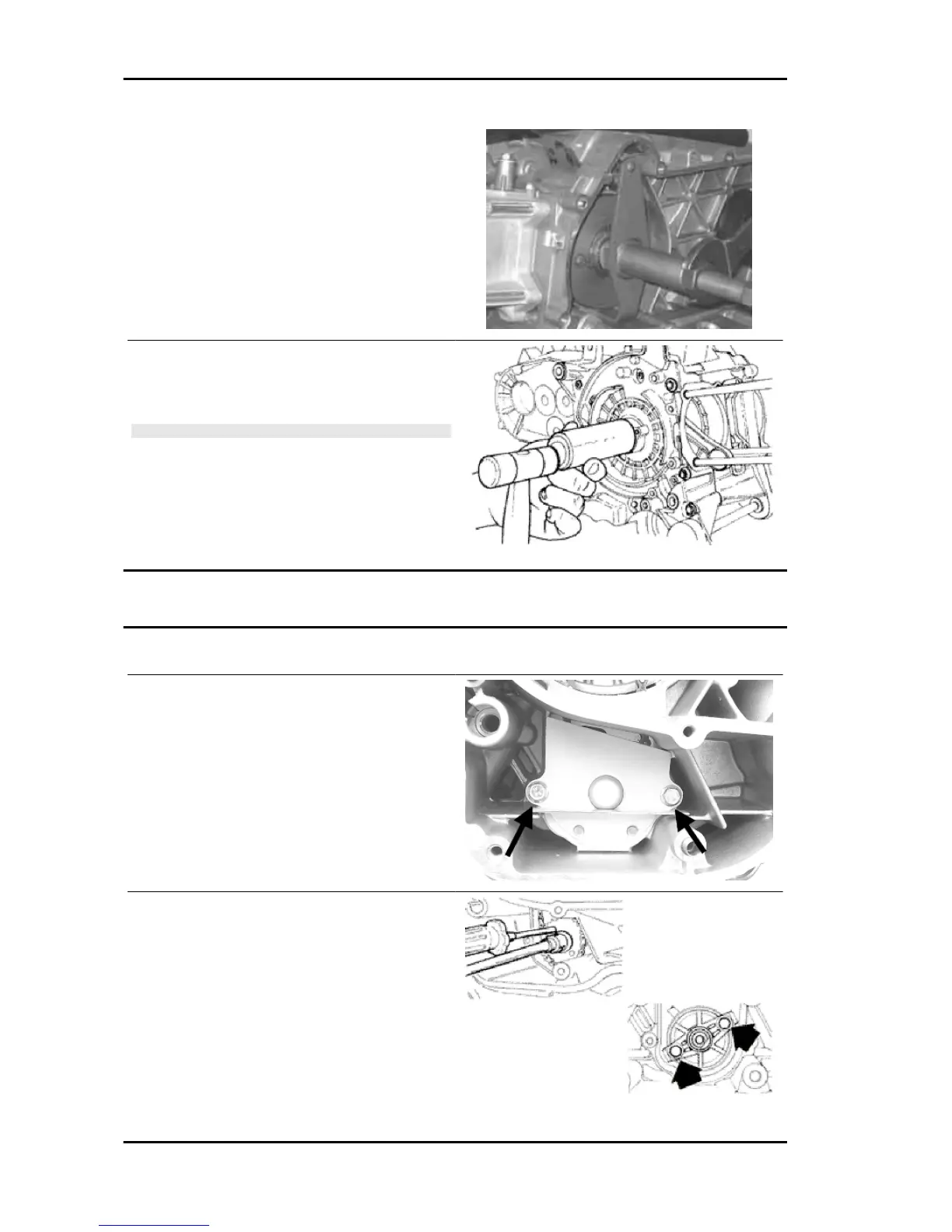

For 125 models, fit a new oil seal on the flywheel
side using the specific tool as shown in the photo-
graph
N.B.
FAILURE TO USE THE SPECIFIC TOOL CAN RESULT IN
AN INCORRECT DEPTH POSITION AND AS A CONSE-
QUENCE IN INADEQUATE OIL SEALING.
Specific tooling
020425Y Punch for flywheel-side oil seal
Oil pump
Removal
- Undo the two clamping screws in the figure and
remove the cover over the pump control crown.
- Block the rotation of the oil pump control pulley
with a screwdriver inserted through one of its two
holes.
- Remove the central screw with Belleville washer,
as shown in the diagram.
- Remove the chain with the crown.
- Remove the control sprocket with relative O-ring.
Engine X9 Evolution 125
ENG - 146
