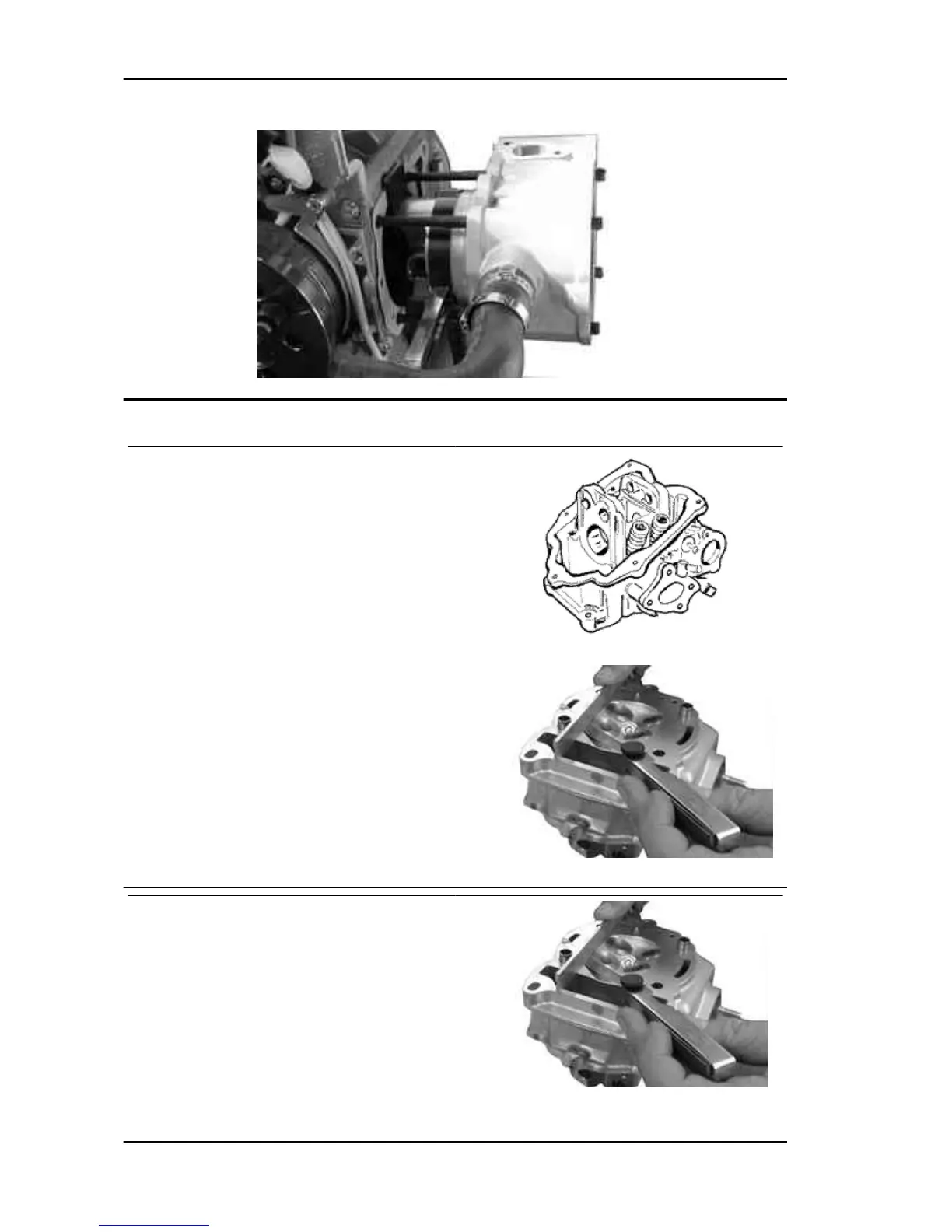

Inspecting the cylinder head
- Using a trued bar and a feeler thickness gauge
check that the cylinder head surface is not worn or
distorted.
Maximum allowable run-out: 0.05 mm
- Check that the camshaft and the rocking lever pin
capacities exhibit no wear.
- Check that the cylinder head cover surface, the
intake manifold and the exhaust manifold are not
worn.
Characteristic
bearing «A»
Diameter 12.000 - 12.018 mm
bearing «B»
Ø 20.000 ÷ 20.021 mm
bearing «C»
Ø 37.000 - 37.025 mm
Head check
- Using a trued bar and feeler gauge check that the
cylinder head surface is not worn or distorted.
Maximum allowable run-out: 0.05 mm
- Check that the camshaft and the rocker pin ca-
pacities exhibit no wear.
Engine X9 Evolution 125
ENG - 124
