Removing the piston

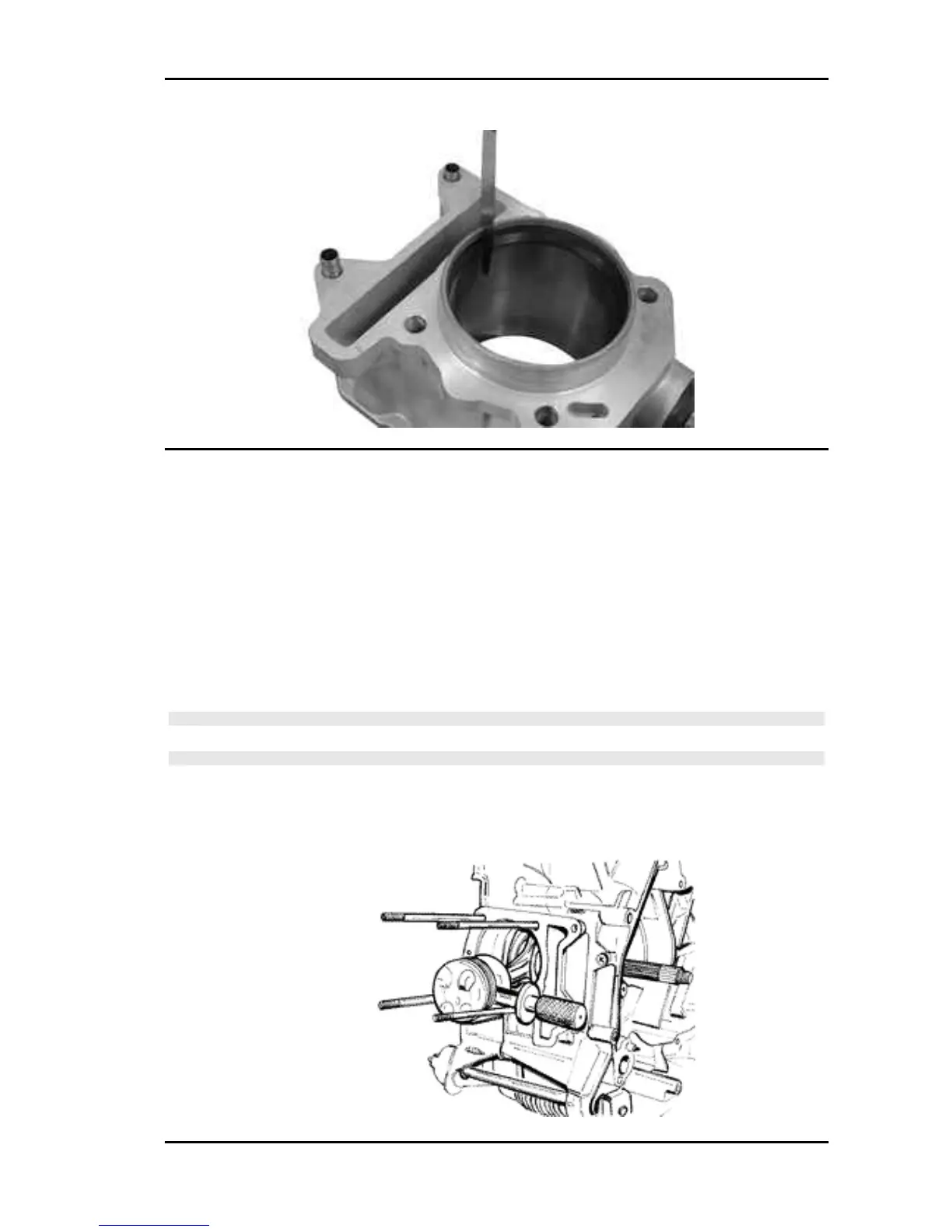

- Install piston and wrist pin onto the connecting rod, aligning the piston arrow the arrow facing towards
the exhaust.
- Fit the pin stop ring onto the appropriate tool.
- With opening in the position indicated on the tool
S = left
D = right
- Place the wrist pin stop ring into position using a punch
- Fit the wrist pin stop using the plug as shown in the figure
CAUTION
USING A HAMMER MIGHT DAMAGE THE STOPS' HOUSING.
N.B.
THE TOOL FOR INSTALLING THE STOP RINGS MUST BE USED MANUALLY.
Specific tooling
020430Y Pin lock fitting tool
X9 Evolution 125 Engine
ENG - 121
