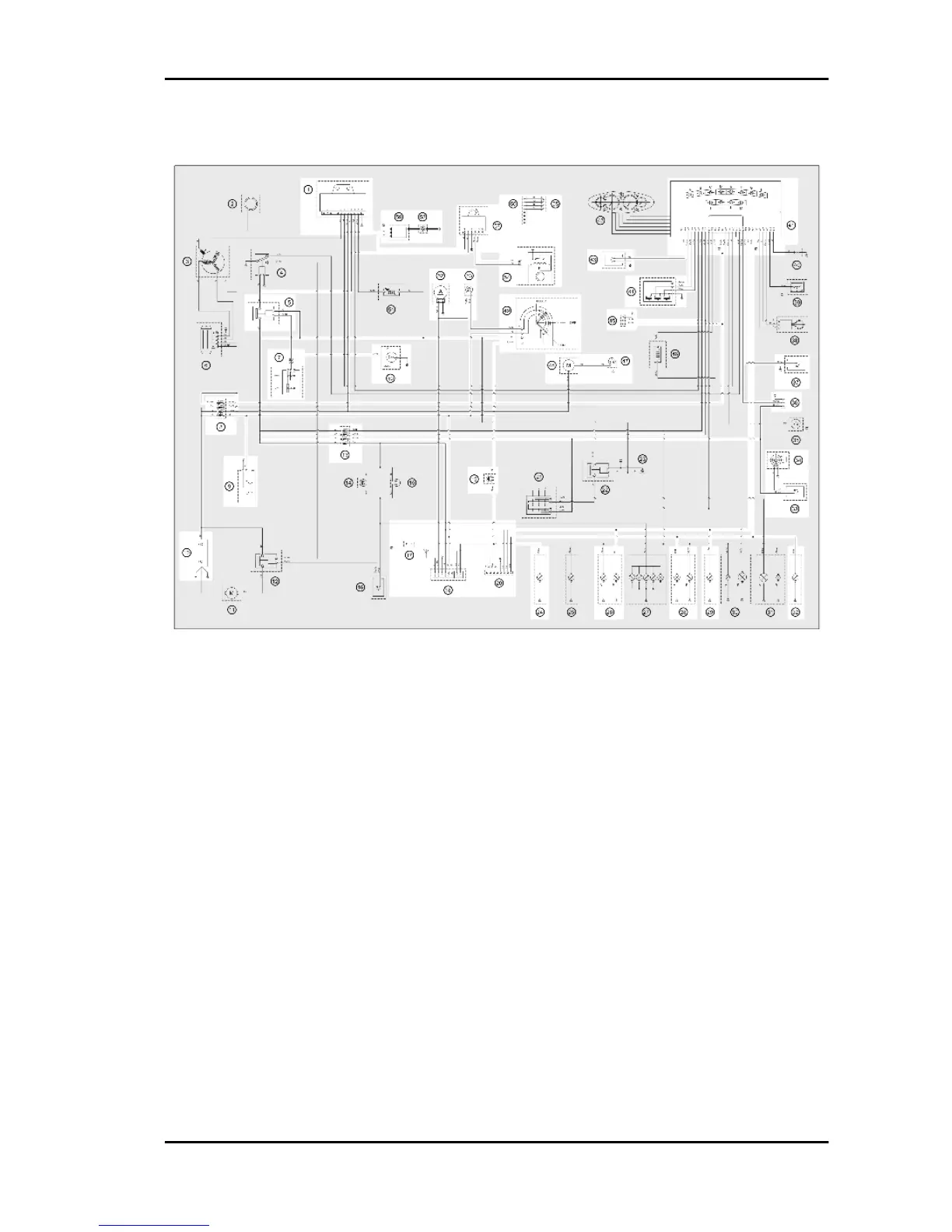

PIAGGIO X9 Evolution 125 2008 - Device and Accessory Wiring

Devices and accessories
KEY
1. Electronic ignition device
5.Relay engine stop
7. Engine stop switch
8. Main fuses
9. 12V-180W socket
10. Battery
13. Secondary fuses
17. Reset
18. Saddle opening control unit wiring
19. Helmet compartment light switch
20. Wiring for antitheft device
24. Helmet compartment internal light
26. Rear left light
B. Rear left turn indicator
28. Rear right light
A. Rear right turn indicator
29. Front left turn indicator
X9 Evolution 125 Electrical system
ELE SYS - 65
