This section describes the operations to be carried out on the engine and the tools to be used.

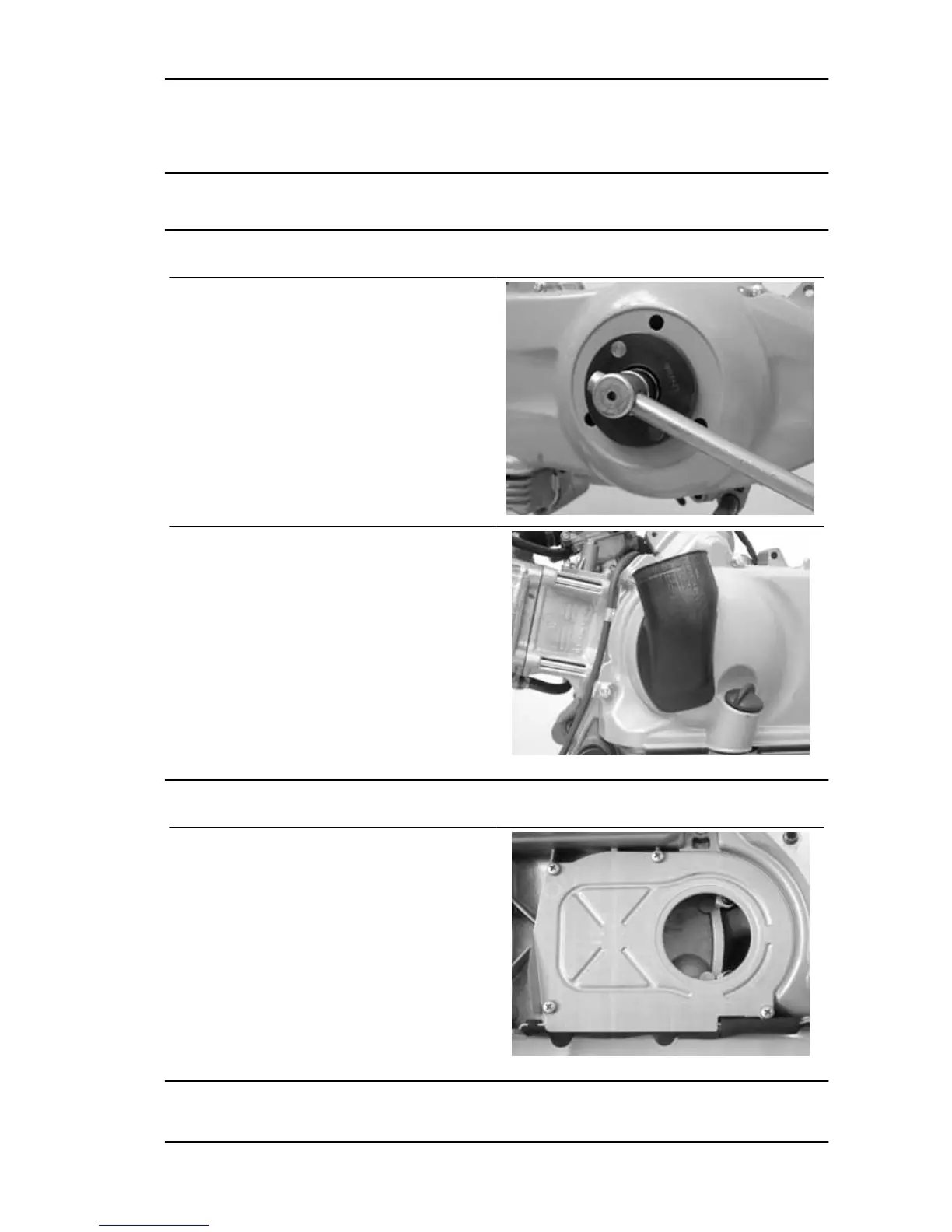

Automatic transmission
Transmission cover
- To remove the transmission cover it is necessary
to remove the plastic cover first, by inserting a
screwdriver in the slotted holes. Using the clutch
bell lock wrench shown in the figure, remove the
driven pulley shaft locking nut and washer.
Specific tooling
020423Y Driven pulley lock wrench
- Remove the cap/dipstick from the engine oil filling
hole.
- Remove the ten screws.
- Remove the transmission cover.
If this operation is carried out directly on the vehi-
cle, remove the cooling air supply coupling of the
transmission housing.
Air duct
- Remove the 4 screws and the housing.
X9 Evolution 125 Engine
ENG - 87
