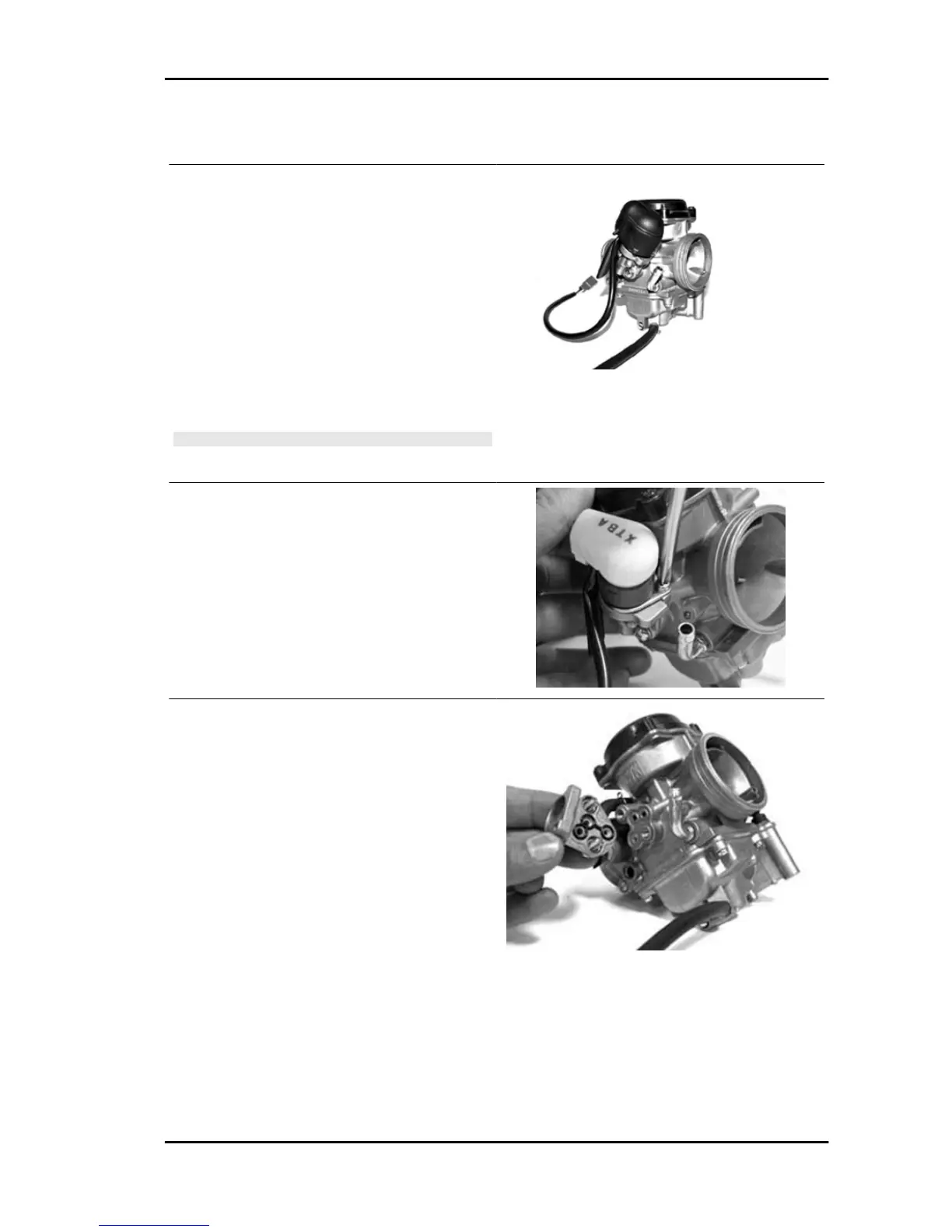

- To detach the carburettor from the engine, it is
necessary to move the air filter and remove the
transmission throttle control, the automatic starter
connection, the clamps anchoring the carburettor
to the filter housing and to the inlet manifold, the
air delivery pipe to the diaphragm, and the intake
fitting.
- Take out the carburettor and rotate it so as to
remove the screw with the water joint and the
pipes.
N.B.
THIS LAST OPERATION IS NECESSARY SO AS NO TO
EMPTY THE COOLING SYSTEM.
- Remove the protection, the bracket and the start-
er acting on the screw shown in the figure.
- Remove the 2 screws and the starter support with
the gasket.
X9 Evolution 125 Engine
ENG - 153
