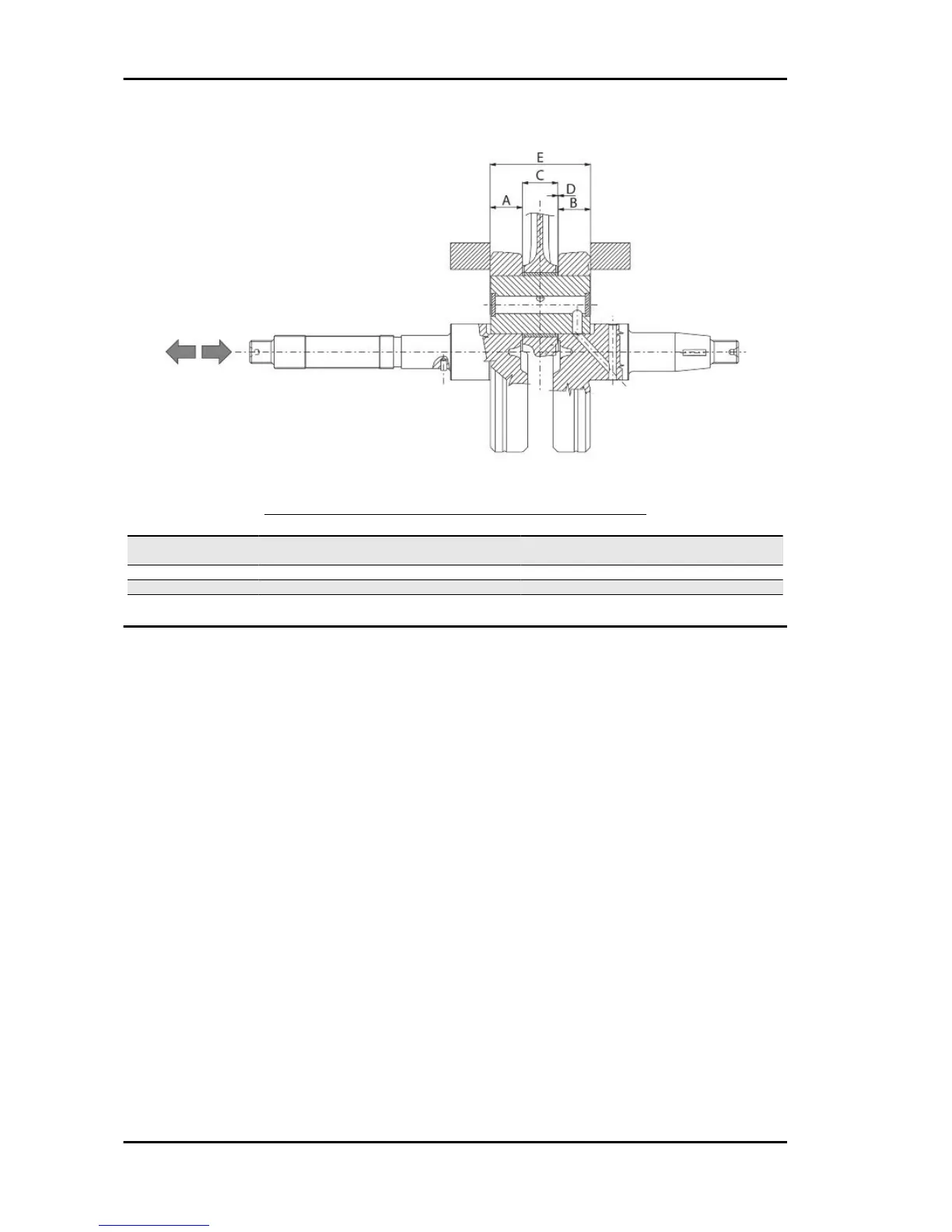

CRANKSHAFT/ CRANKCASE AXIAL CLEARANCE
Name
Description Dimensions Initials Quantity
Half-shaft, transmission
side
16,6 +0-0,05 A D = 0.20 ÷ 0.50
Flywheel-side half shaft 16,6 +0-0,05 B D = 0.20 ÷ 0.50
Connecting rod 18 -0.10 -0.15 C D = 0.20 ÷ 0.50
Spacer tool 51.4 +0.05 E D = 0.20 ÷ 0.50
Slot packing system
Characteristic
Compression ratio, 200 models
Cr: 11÷12 :1
