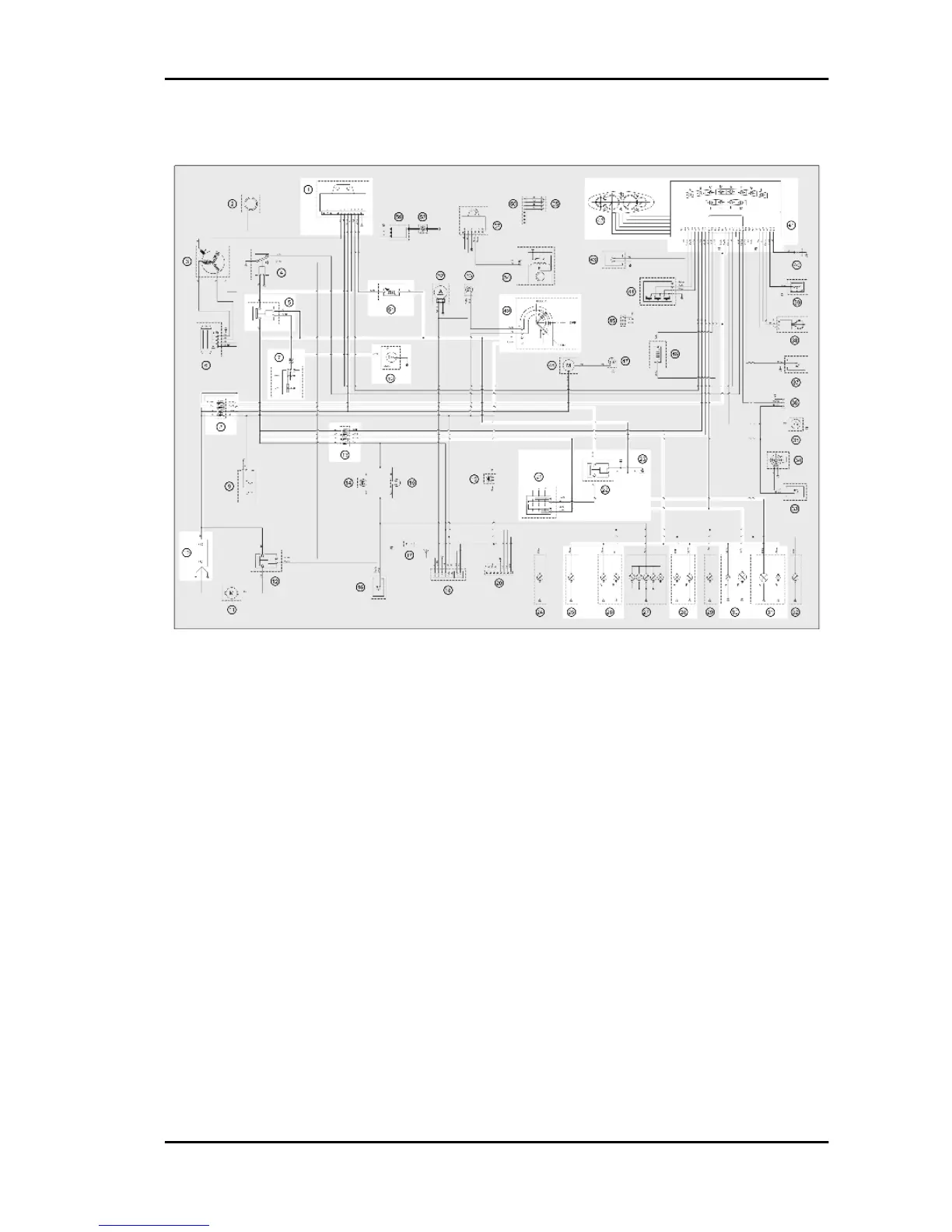

PIAGGIO X9 Evolution 125 2008 - Lighting and Indicator System Schematics

Headlights and automatic starter section
KEY
1. Electronic ignition device
5.Relay engine stop
7. Engine stop switch
8. Main fuses
10. Battery
13. Secondary fuses
21. Light switch
22. Relay for headlight
23. Diode
25. License plate light
26. Rear left light
A. Tail light
28. Rear right light
B. Tail light
30. Left headlight
A. Tail light
B. High-beam light
X9 Evolution 125 Electrical system
ELE SYS - 61
